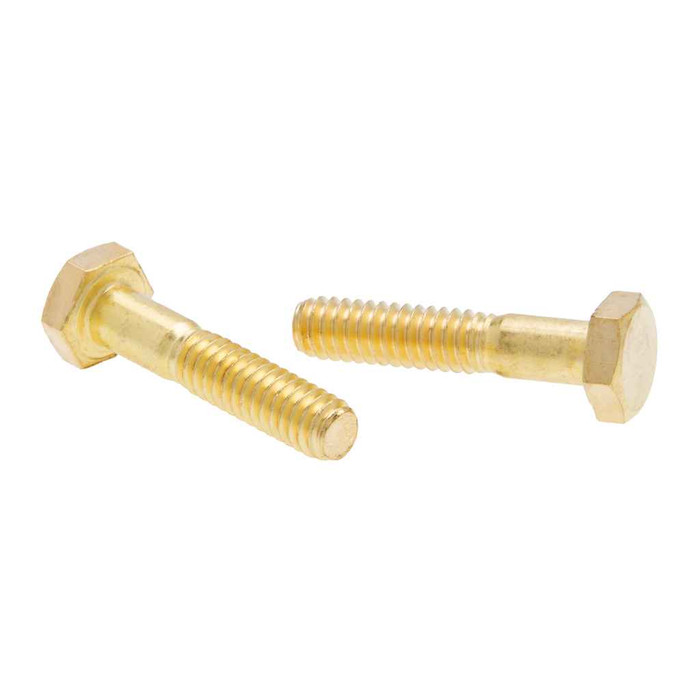

Bolts 3/8-16 X 1 Hxbt Br (Jar 100)
Additional Notes
- other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Color:
- Brass
- Fastener Head Type:
- Hex
- Fastener Length:
- 1
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 1905 g
- Product Width:
- 88.9 MM
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 16
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- JBRHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- Brass
Metallics JBRHC45 – Frequently Asked Questions
1) What thread size and length is the Metallics JBRHC45 brass hex bolt?
The JBRHC45 is a 3/8-16 hex bolt, 1 inch long, in brass. The 16 threads per inch is the UNC coarse thread for 3/8 inch diameter, so it mates with standard 3/8-16 nuts and tapped 3/8-16 holes in ground bars, enclosures, and strut.
2) Is the JBRHC45 bolt solid brass or just brass plated?
Solid brass. Material is listed as brass and the head color as brass, not a plating over steel. That matters for grounding and bonding work, where brass hardware is used for conductivity and corrosion resistance rather than strength, and it is why you should not treat these as a substitute for a structural steel hex bolt.
3) Do these brass hex bolts meet Buy American and ARRA requirements for a public project?
The JBRHC45 is flagged compliant for both Buy American and ARRA, which is what a government, school, or healthcare procurement file usually needs on fasteners. Country of origin is listed as multiple.
4) How many bolts come in a jar of Metallics JBRHC45 and can I buy fewer?
They ship as a jar of 100 pieces, and 100 count is the order minimum, so the jar is the smallest unit. Other sizes and quantities are available by request.
5) Will a 1 inch long 3/8-16 brass bolt be long enough for my ground bar?
At 1 inch of total length under the hex head, the JBRHC45 suits thin stack-ups: a ground bar lug, a bonding jumper, or a lug plus washer and nut on sheet metal. Thicker assemblies, or anything where you want several threads past the nut, need a longer 3/8-16; other lengths in the JBRHC series are available by request.
6) Does the JBRHC45 come with a nut or washer?
No. It is the hex bolt only, 100 to a jar. Order 3/8-16 brass nuts and brass washers separately if the connection needs them.
7) What wrench or socket size fits these brass hex bolts?
The JBRHC45 has a standard hex head on a 3/8-16 body, so a 9/16 inch wrench or socket is the normal fit. Brass heads round off easier than steel, so use a six-point socket and keep torque moderate.
