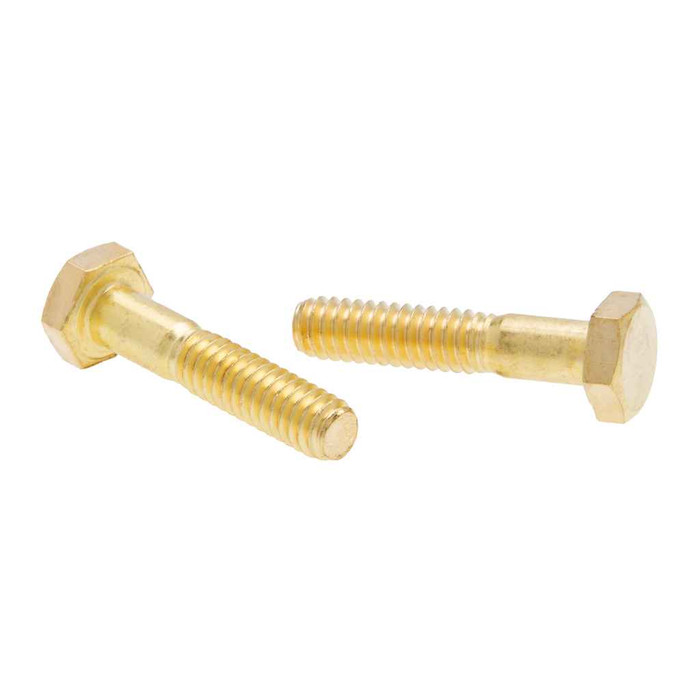

Bolts 3/8-16 X 1-1/2 Hxbt Br (Jar 100)
Additional Notes
- other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- China
- Division:
- Electrical H1
- Fastener Head Color:
- Brass
- Fastener Head Type:
- Hex
- Fastener Length:
- 1/1/02
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 2540 g
- Product Width:
- 88.9 MM
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 16
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- JBRHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- Brass
Metallics JBRHC23 – Frequently Asked Questions
1) What thread size and length is the Metallics JBRHC23 brass hex bolt?
It's a 3/8-16 x 1-1/2 inch hex bolt in solid brass. The 16 threads per inch is the UNC coarse pitch for 3/8 inch diameter, so it mates with standard 3/8-16 brass nuts and tapped 3/8-16 holes.
2) Is the JBRHC23 solid brass or just brass plated?
Solid brass. Both the material and the head color are specified as brass, not a plating over steel. That matters for grounding and bonding work and for wet or corrosive locations where a plated steel bolt would rust through.
3) How many bolts come in a jar of Metallics JBRHC23?
100 pieces per jar, and 100 count is also the order minimum, so one jar is the smallest buy. The jar packaging keeps loose brass hardware together on a cart or in a gang box rather than spilling in a bag.
4) Do these brass hex bolts meet Buy American requirements on a federal job?
The JBRHC23 is flagged as both ARRA compliant and Buy American compliant, with country of origin listed as China. If your spec enforces domestic melt and manufacture rather than the ARRA/Buy American flag, verify against the project's exact clause before submitting.
5) Will a 1-1/2 inch bolt be long enough for my assembly?
At 1-1/2 inches of bolt length you get usable grip for stacked material up to roughly an inch once a nut and washer are accounted for. For thicker buildups, Metallics offers other lengths and quantities in the JBRHC series by request.
6) What wrench or socket do I need for a 3/8-16 brass hex bolt?
Hex head, so a standard socket or open-end wrench drives it. Brass is softer than steel, so use a six-point socket and moderate torque; an impact driver will round the head or strip the 3/8-16 threads.
