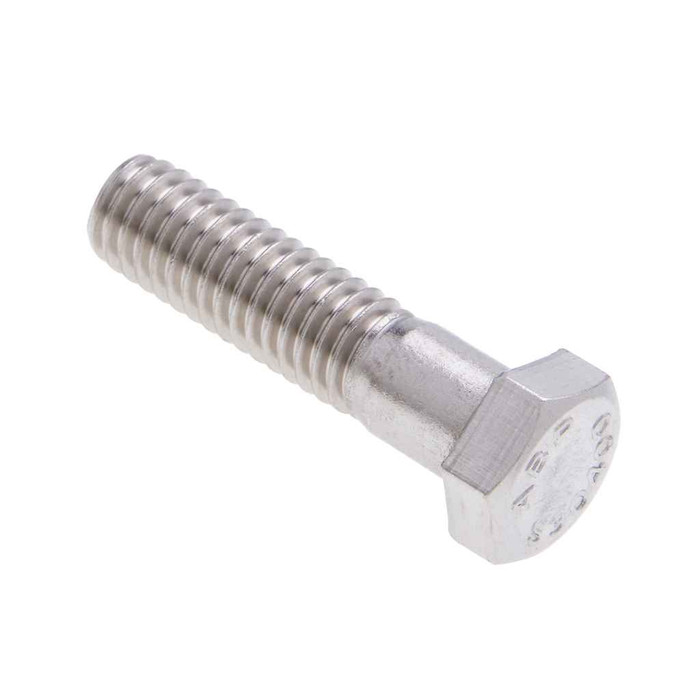

Metallics JSBH28 Bolts 3/8-16 X 3-1/2 Hxbt SS (Jar 50)

The JSBH28 is a 3/8 inch diameter hex bolt with 16 threads per inch, so any standard 3/8-16 UNC nut or tapped hole mates with it. Measured shank diameter runs 0.3690 to 0.3750 inch. Note that 16 TPI is the UNC coarse pitch for 3/8 inch, not the 24 TPI fine pitch, so a 3/8-24 nut will not thread on.

They are made from 18-8 stainless steel, an austenitic alloy that handles general atmospheric corrosion, which covers exterior mounting and chemical or food-processing equipment. Aggressive chemical exposure, chlorides or marine spray is a different problem, and in those conditions a 316 stainless fastener is the right call instead.

No. These are not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. On a federally funded job with domestic sourcing language in the spec, you will need a domestic-origin 3/8-16 stainless hex bolt instead.

Across the flats the hex head measures 0.551 to 0.562 inch, which is a 9/16 inch wrench or socket. Head height is 15/64 inch, worth knowing if you are working in a tight channel or under a strut where socket clearance is limited.

Tensile strength is 100,000 to 150,000 psi minimum with a 65,000 psi minimum yield, and hardness runs Rockwell B95 to C32. That puts it in the same general tensile range as a Grade 5 steel bolt, but the yield is lower, so stainless stretches sooner under load. For high-torque structural clamping, a plated alloy bolt is the better mechanical choice; for corrosion service, this one is.

These ship as a jar of 50 with a 50-piece minimum, sold each within that pack, so the jar is the smallest unit. For MRO cribs and electrical shops standardizing on 3/8-16 stainless, the jar is the stocking quantity. Other sizes and quantities can be had by request.
