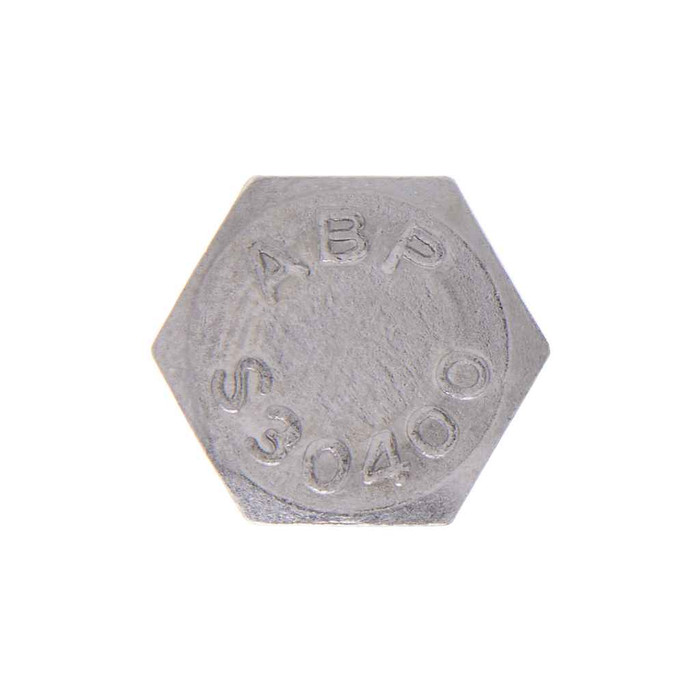

Bolts 3/8-16 x 3 -1/2 HXBT SS (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- United States
- Division:
- Electrical H1
- Fastener Head Height:
- 15/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.551 - 0.562 in.
- Fastener Height:
- 0.226 - 0.243
- Fastener Length:
- 3/1/02
- Fastener Width:
- 0.628 - 0.650
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.3690 - 0.3750 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 150000 psi minimum
- Thread Per Inch:
- 16
- Yield Strength:
- 65000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JSBH28D – Frequently Asked Questions
1) Is a stainless hex bolt like the JSBH28D suitable for outdoor or wet locations?
It is 18-8 stainless steel, an austenitic alloy used where general atmospheric corrosion resistance is needed, including chemical and food-processing equipment. For aggressive chemical exposure, 316 stainless or a special corrosion-resistant material is the better call rather than 18-8.
2) Do the Metallics JSBH28D bolts qualify for a Buy American or ARRA-funded job?
No. The JSBH28D hex bolt is flagged as not Buy American compliant and not ARRA compliant, even though country of origin is listed as the United States. If your contract carries a domestic-sourcing clause, treat this part as non-conforming for that line.
3) How strong is the Metallics JSBH28D stainless bolt compared to a Grade 5 steel bolt?
Tensile strength is 100,000 to 150,000 psi minimum with 65,000 psi minimum yield, and hardness runs Rockwell B95 to C32. That tensile range overlaps Grade 5 steel, but the yield is lower, so stainless like this is chosen for corrosion resistance rather than for maximum clamp load in a structural connection.
4) How are the Metallics JSBH28D bolts packaged, and is there a minimum order?
They come 50 bolts to a jar, and the order minimum is 100 count. Other sizes and quantities can be had by request.
