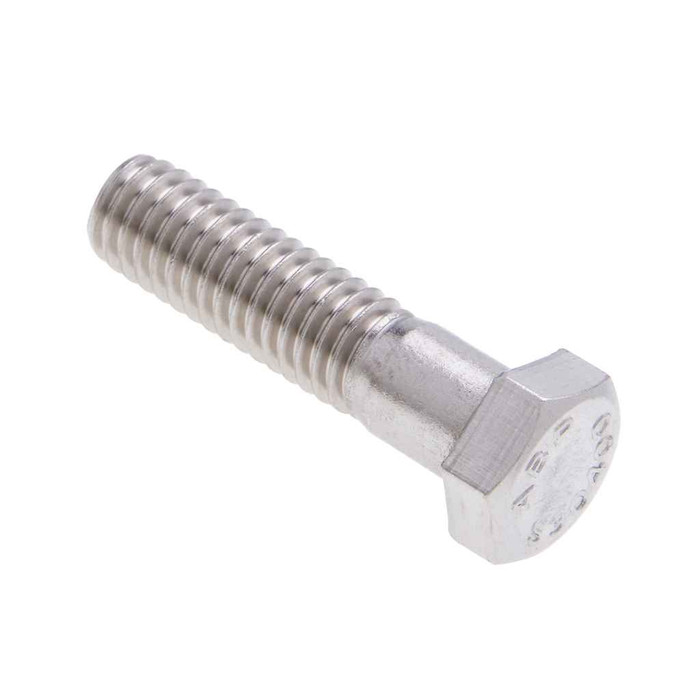

Bolts 3/8-16 X 3 Hxbt SS (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Features
- The molybdenumcontent gives this type of stainless even greater corrosion resistance than 18-8 as well as superior strength at high temperatures.
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 15/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.551 - 0.562 in.
- Fastener Height:
- 0.226 - 0.243
- Fastener Length:
- 3
- Fastener Width:
- 0.628 - 0.650
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.3690 - 0.3750 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 4790 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 150000 psi minimum
- Thread Per Inch:
- 16
- Yield Strength:
- 65000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 316 Stainless Steel
Metallics JSBH126 – Frequently Asked Questions
1) What size and thread is the Metallics JSBH126 hex bolt?
It's a 3/8-16 hex bolt, 3 inches long. Thread count is 16 per inch (coarse UNC), and the shank measures 0.3690 to 0.3750 inch outside diameter, so it drops into a standard 3/8 clearance hole and takes any 3/8-16 nut.
2) Is the JSBH126 bolt 316 stainless or 18-8?
316 stainless steel. The molybdenum in 316 gives it better corrosion resistance than 18-8 and better strength at elevated temperature, which is why it gets specified for coastal, wastewater, pool chemical, and other wet or chloride-heavy environments where 18-8 pits.
3) What wrench or socket size fits these 3/8-16 stainless hex bolts?
The hex head measures 0.551 to 0.562 inch across the flats, which is a 9/16 inch wrench or socket. Head height is 15/64 inch, so clearance above the surface is minimal if you're working in a tight channel or strut run.
4) How many bolts come in a jar and can I buy fewer?
They ship 100 to a jar, and 100 count is the order minimum, so the jar is the smallest unit. The full jar weighs 4790 g. Other sizes and quantities are available by request.
5) Will the JSBH126 work on a federally funded or Buy American job?
Metallics lists the JSBH126 as both ARRA compliant and Buy American compliant. Country of origin is China, so if your specification requires domestic melt and manufacture rather than the Buy American compliance flag, verify against the exact contract clause on your project.
6) Can I use these stainless bolts outdoors or in a wet electrical enclosure without galvanic problems?
316 stainless is the right pick for damp, salty, or chemical exposure, and it pairs well with stainless strut, stainless enclosures, and aluminum under most conditions. Where it causes trouble is against plain or galvanized steel in a constantly wet location, since the stainless is cathodic to zinc and will accelerate corrosion of the galvanizing. Isolate or use matching hardware in that case.
