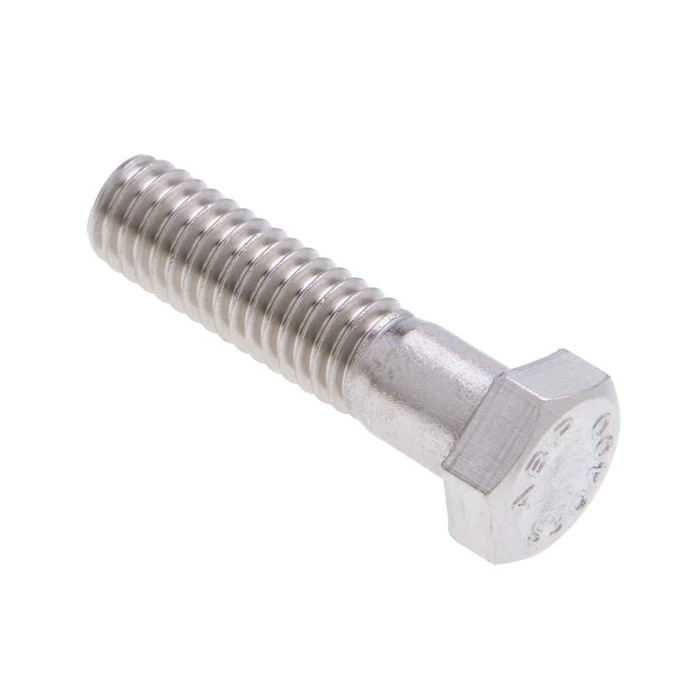

Metallics JSBH406 Bolts 3/8-24 x 3-1/2 HXBT SS (Jar 100)

Fine thread. The JSBH406 is a 3/8-24 hex bolt, 24 threads per inch, which is UNF rather than the more common 3/8-16 UNC coarse thread. If the nut or tapped hole you're going into is 3/8-16, this bolt will not thread in. Measured major diameter runs 0.3690 to 0.3750 inch.

The JSBH406 is 18-8 stainless, an austenitic alloy suited to general atmospheric corrosion resistance, the sort of service you see on chemical and food-processing equipment. For chloride-heavy exposure such as coastal salt spray, or aggressive chemical environments, 316 stainless is the alloy to specify instead; some chemical environments require special corrosion resistant materials and precautions.

Tensile strength is rated 100,000 to 150,000 psi minimum with a 65,000 psi minimum yield, and hardness runs Rockwell B95 to C32. That is typical stainless cap screw territory, not a substitute for a Grade 8 alloy bolt in a high-stress structural joint. For strut, enclosure, equipment mounting and corrosion-prone fastening it is the right class of fastener.

They ship as a jar of 100, and 100 count is the order minimum, so the jar is the smallest unit. The full jar weighs 5,416 g. Metallics offers other sizes and quantities in this SBHC and JSBHC hex bolt line by request.

Metallics lists the JSBH406 as both Buy American compliant and ARRA compliant. Country of origin is recorded as multiple, so if your contract requires a specific country of manufacture on the documentation, confirm the origin on the lot you receive.

That is the service this 18-8 stainless hex bolt is built for. The alloy is used where general atmospheric corrosion resistance is needed, including chemical and food-processing equipment, so it holds up to washdown better than plated carbon steel. Harsh chemical exposure may still call for a more corrosion resistant material.
