Metallics JSBH402 Bolts 3/8-24 X 1-1/4 Hxbt SS (Jar 100)
Model: MET-JSBH402
Bolts 3/8-24 X 1-1/4 Hxbt SS (Jar 100)
Features
Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may...
Metallics
$53.54
$3.86

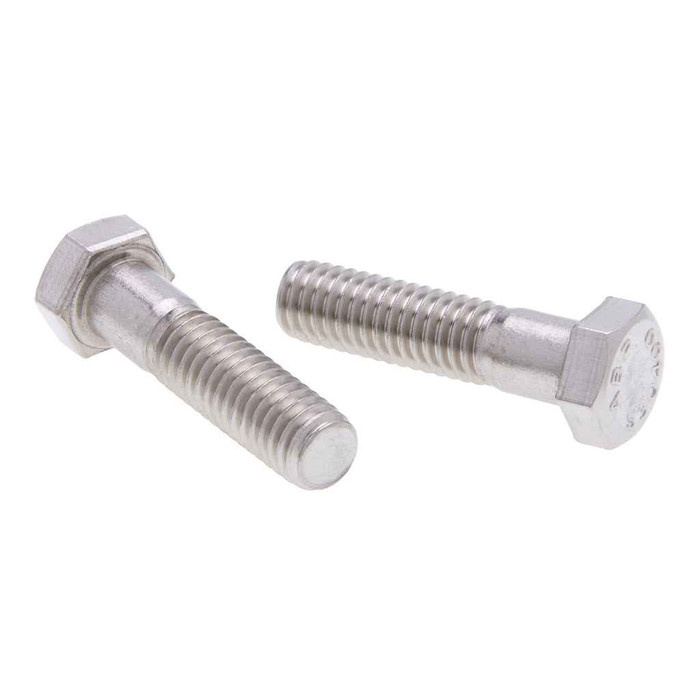

Bolts 3/8-24 x 1 HXBT SS (Jar 100)
Features
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 15/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.551 - 0.562 in.
- Fastener Height:
- 0.226 - 0.243
- Fastener Length:
- 1
- Fastener Width:
- 0.628 - 0.650
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Dom_18-8_SS_316_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.3690 - 0.3750 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 4.57 in
- Product Length:
- 3 in
- Product Weight:
- 1955 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 150000 psi minimum
- Thread Per Inch:
- 24
- Yield Strength:
- 65000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JSBH401 – Frequently Asked Questions
1) Is the Metallics JSBH401 hex bolt a fine thread or coarse thread 3/8 bolt?
Fine thread. The JSBH401 is a 3/8-24 hex bolt, 24 threads per inch, so it mates with 3/8-24 fine nuts and tapped holes only. A 3/8-16 coarse nut will not run on it. Shank outside diameter measures 0.3690 to 0.3750 inch and the overall bolt length is 1 inch.
2) Will 18-8 stainless bolts hold up outdoors or in a wet plant environment?
18-8 stainless handles general atmospheric corrosion, which covers outdoor exposure, washdown areas, and chemical and food processing equipment. It is not the right choice for chloride-heavy or aggressive chemical service, where 316 stainless or a specialty alloy is called for instead. Both 18-8 and 316 are austenitic alloys, so they are non-magnetic in the annealed condition and will not rust in the way plated carbon steel does.
3) Do these Metallics stainless bolts qualify for a Buy American or ARRA funded job?
The JSBH401 hex bolt is flagged compliant for both Buy American and ARRA, which is what a government, school, or transit procurement file usually needs on the fastener line. Country of origin is listed as multiple, so if your specification requires a single named origin on the submittal, that has to be confirmed per shipment.
4) How many bolts come in a jar of Metallics JSBH401, and can I buy fewer?
They ship as a jar of 100 pieces, and 100 count is the order minimum, so the jar is the smallest unit. Other sizes and quantities are available by request if you need a different length or diameter in the same SBHC and JSBHC hex bolt line.
5) Can I mix these stainless bolts with galvanized strut and carbon steel nuts?
You can thread a carbon steel 3/8-24 nut onto them, but pairing 18-8 stainless with zinc or galvanized hardware in a wet location sets up galvanic action and the zinc coating gives up first. On outdoor or washdown work, keep the nut and washers stainless too so the whole joint matches the bolt material.
