Metallics JBLS36G Bolts 3/8 X ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51.11
$1.70

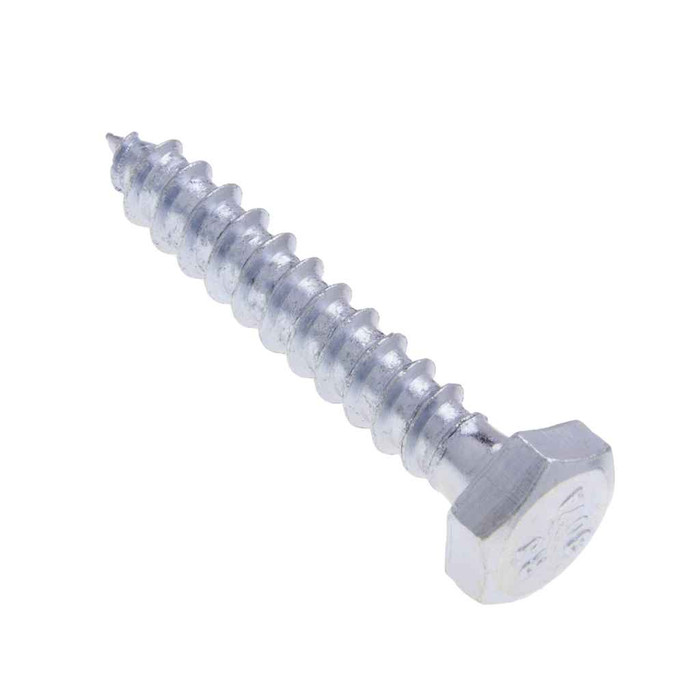

Metallics JBLS36G Bolts 3/8 X 1-1/2 Hx Lag Blt Galv (Jar 100)

Metallics JBLS36G Bolts 3/8 X 1-1/2 Hx Lag Blt Galv (Jar 100)

(No reviews yet) Write a Review

Model: JBLS36G
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.11
$1.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 3/8 X 1-1/2 Hx Lag Blt Galv (Jar 100)

  • Features

    • For use in corrosive enviroments
    • A full-bodied boltwith hex head, spaced threads and a gimlet point

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Country Of Origin:
China
Dimensional Standard:
ASME B18.2.1-1996
Division:
Electrical H1
Fastener Head Height:
4-Jan in.
Fastener Head Type:
Hex
Fastener Head Width:
0.544 - 0.562 in.
Fastener Height:
0.226 - 0.268
Fastener Length:
1/1/02
Fastener Width:
0.620 - 0.650
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.360 - 0.388 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2077 g
Product Width:
88.9 MM
Remarks:
The catalog UPC differ from the tarnsaction daat spreadsheet UPC
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
7
Washer Od:
0.125 in.
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
BLS and JBLS
Product Finish:
Galvanized
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JBLS36G – Frequently Asked Questions

1) What size lag bolt is the Metallics JBLS36G, and how many come in a jar?
The JBLS36G is a 3/8 inch by 1-1/2 inch hex head lag bolt, galvanized, packed 100 to a jar. The jar is the minimum order quantity, so you buy in counts of 100.
2) Can I use these galvanized lag bolts outdoors or in a damp environment?
Yes. The galvanized finish on this steel lag bolt is specified for use in corrosive environments, which covers exterior work, damp mechanical rooms and coastal or washdown areas. Plain zinc-plated lags will not hold up the same way outdoors.
3) Do these lag bolts meet a recognized dimensional and material standard for spec work?
Dimensions follow ASME B18.2.1-1996 and the steel is to AISI 1006 - 1022, with minimum tensile strength of 60,000 psi and hardness in the Rockwell B70 to B100 range. That is the information a submittal reviewer will be looking for on a lag screw callout.
4) Can I use these lag bolts in concrete or masonry?
Not directly. This is a wood lag screw, full bodied with spaced threads and a gimlet point, meant to bite into wood framing. Into concrete or block you need a lag shield or expansion anchor sized for the 3/8 inch shank, or a concrete screw anchor instead.
5) What size pilot hole do I need for a 3/8 inch lag bolt like this one?
Measure off the shank, not the thread. The JBLS36G runs 0.360 to 0.388 inch outside diameter with 7 threads per inch and a gimlet point, so a pilot sized to the root of the thread in softwood and closer to shank diameter in hardwood is the usual approach. The gimlet point starts the bolt in the pilot without a separate starter hole.
6) Are these lag bolts acceptable on a Buy American or ARRA funded job?
Metallics lists the JBLS36G as both ARRA compliant and Buy American compliant. Country of origin is China, so if your contract requires domestic melt and manufacture rather than general Buy American compliance, verify against your specific contract language.
7) Do these lag bolts come with washers?
No washers are supplied with the JBLS36G jar; it is bolts only. Lag bolts bear directly on the material under the hex head, so for soft wood or slotted strut you should order flat washers separately.
