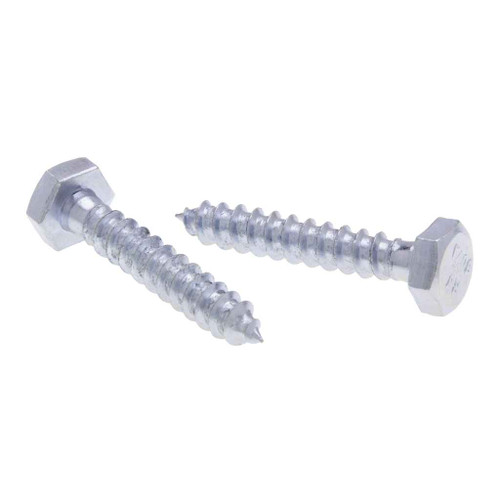

Bolts 3/8 X 1-1/2 Hx Lag Blt SS (Jar 100)
Features
- Has superior corrossion resistance to galvanized steel bolts
- A full-bodied boltwith hex head, spaced threads and a gimlet point
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- 4-Jan in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.544 - 0.562 in.
- Fastener Height:
- 0.226 - 0.268
- Fastener Length:
- 1/1/02
- Fastener Width:
- 0.620 - 0.650
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Outside Diameter:
- 0.360 - 0.388 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 2141 g
- Product Width:
- 88.9 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 125000 psi (Approximate) minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 7
- Washer Od:
- 0.125 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JBLS36SS – Frequently Asked Questions
1) Will a 3/8 x 1-1/2 stainless lag bolt hold up in outdoor or damp locations?
The Metallics JBLS36SS lag bolt is made from 18-8 stainless steel, which gives it better corrosion resistance than galvanized steel lag bolts. That makes it the choice for exterior strut, conduit support, and damp mechanical rooms where a zinc or galvanized lag would rust out first.
2) Can I use the Metallics JBLS36SS on a federally funded Buy American job?
No. The JBLS36SS is listed as not Buy American compliant and not ARRA compliant, with country of origin shown as multiple. If your project carries a domestic sourcing requirement, you need a domestically produced lag.
3) What size pilot hole and thread pitch does the Metallics JBLS36SS lag bolt have?
It is a 3/8 inch lag with 7 threads per inch, right hand thread, and a measured outside diameter of 0.360 to 0.388 inch. Drill your pilot to suit that shank diameter in the material you are fastening into. The point is a gimlet point, so it starts itself once the pilot is in.
4) How many lag bolts come in a jar, and can I buy fewer than 100?
These ship as a jar of 100, and the jar is the order minimum, so 100 pieces is the smallest quantity. Metallics does offer other sizes and quantities in the BLS and JBLS lag bolt series by request.
5) Is this stainless lag bolt strong enough for anchoring strut and equipment supports?
Tensile strength is listed at approximately 100,000 to 125,000 psi minimum, with hardness of Rockwell B95 to C32. It is a full-bodied bolt, not a reduced-shank screw, and is dimensioned to ASME B18.2.1-1996. Metallics lists it for electrical, plumbing, heating and air conditioning work.
6) Do I need a washer with these stainless hex lag bolts?
Washers are not included in the jar of 100. Metallics lists a washer OD figure of 0.125 inch with the bolt data, but if you are lagging through sheet metal, strut, or softwood you should plan on ordering stainless flat washers separately to spread the bearing load under the hex head.
