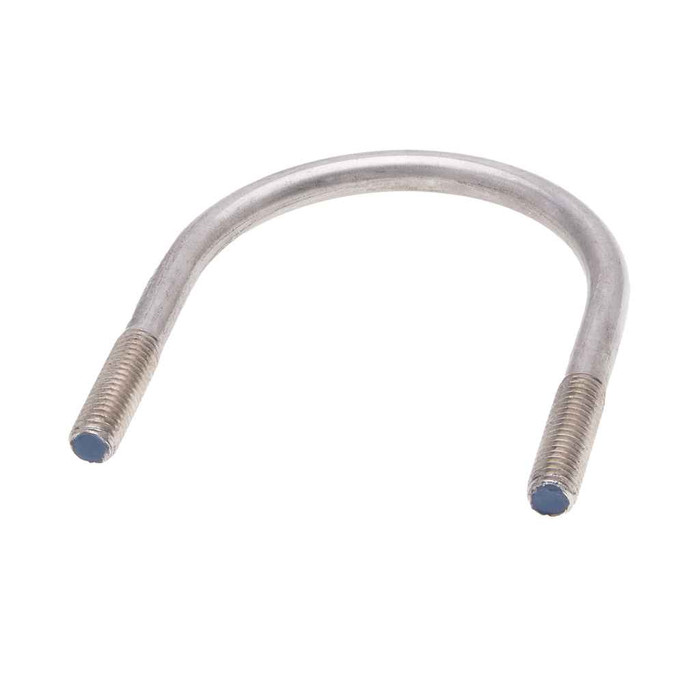

Bolts 5/16-18 X 2-3/16 X 1 U-Blt &Nt (Bag 10)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.2
- Division:
- Electrical H1
- Fastener Head Width:
- 0.489 - 0.500 in.
- Fastener Height:
- 0.258 - 0.273
- Fastener Length:
- 2/3/16
- Fastener Width:
- 1
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Language Code:
- EN
- Material Standard:
- U-Bolt: ASTM A307 / Nut: Grade A per ASTM A563
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-U-Bolt_St-Zn.pdf
- Number Of Nuts:
- 2
- Order Minimum Imperial:
- 10
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Bag
- Product Group:
- Bolts
- Product Height:
- 3 in
- Product Length:
- 6 in
- Product Weight:
- 531 g
- Product Width:
- 152.4 MM
- Sub Division:
- Electrical-E H2
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 18
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Fasteners
- Product Subgroup:
- Specialty Bolts
- Product Type:
- U-Bolt
- Type2:
- U-Bolt with Hex Nuts
- Series:
- UB
- Product Finish:
- Zinc
- Product Details:
- U-Bolt with Hex Nuts
- Pipe Size Dimension:
- 2-Jan
- Product Material:
- Steel
Metallics UB010 – Frequently Asked Questions
1) Does the Metallics UB010 U-bolt come with nuts, or do I have to buy those separately?
Nuts are included. Each UB010 U-bolt ships with two hex nuts, one per leg, so nothing else is needed to make the connection other than whatever you're bolting through. The nuts are Grade A per ASTM A563 and the U-bolt itself is ASTM A307 steel.
2) How many U-bolts are in a bag of Metallics UB010?
They're bagged 10 to a bag, with an order minimum of 10 each. That's 10 U-bolts and 20 hex nuts per bag. Other sizes and quantities can be had by request.
3) Is a zinc plated U-bolt like the UB010 OK for outdoor or damp locations?
The UB010 is zinc plated steel. Zinc handles indoor work, mechanical rooms, and sheltered exterior runs fine, but it is a plating, not hot-dip galvanizing or stainless, so it isn't the right pick for continuous wet exposure, coastal air, corrosive process areas, or anything buried. For those, step up to a hot-dip galvanized or stainless U-bolt.
4) Will standard 5/16-18 nuts and washers fit this Metallics U-bolt if I lose one?
Yes. The threads are right hand 5/16-18 cut to ANSI/ASME B1.1, so any off the shelf 5/16-18 hex nut, lock nut, or flat washer will thread on. Dimensions follow ASME B18.2.2, with hex nut width across flats of 0.489 to 0.500 inch and nut height 0.258 to 0.273 inch, which is a 1/2 inch wrench.
5) Does the Metallics UB010 U-bolt meet Buy American requirements for a federal or public works job?
The UB010 is flagged as both Buy American compliant and ARRA compliant, which is what a government, school district, or transit procurement file usually asks for. Country of origin is listed as multiple, so if your spec requires a single documented origin per lot, ask for the mill paperwork on the lot you receive.
6) What does a bag of 10 Metallics UB010 U-bolts weigh for shipping or a kit count?
Product weight is listed at 531 g. Useful if you're building out material kits per cart or checking a parcel weight on a bulk fastener order.
