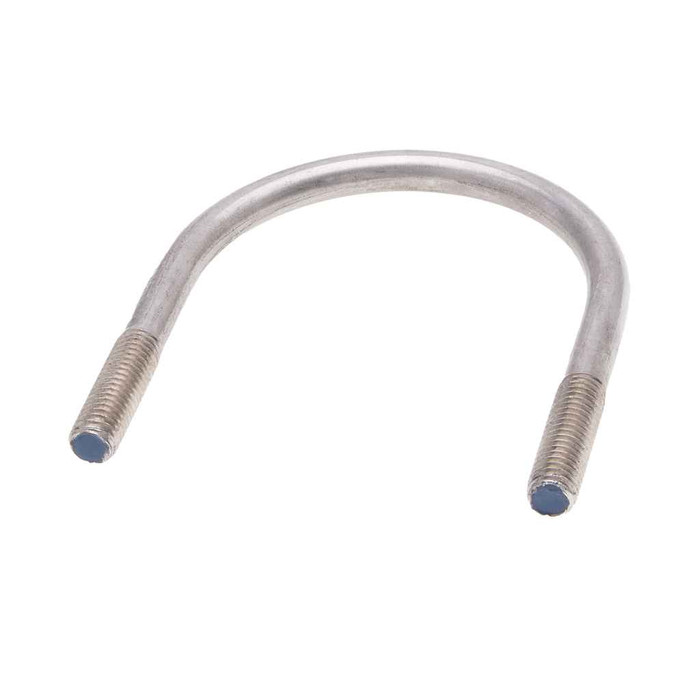

Bolts 5/16-18 X 2-3/16 X 1 U-Blt &Nt (Bag 10)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.2
- Division:
- Electrical H1
- Fastener Head Width:
- 0.489 - 0.500 in.
- Fastener Height:
- 0.258 - 0.273
- Fastener Length:
- 2/3/16
- Fastener Width:
- 1
- Language Code:
- EN
- Material Standard:
- U-Bolt: ASTM A307 / Nut: Grade A per ASTM A563
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-U-Bolt_Galv.pdf
- Number Of Nuts:
- 2
- Order Minimum Imperial:
- 10
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Bag
- Product Group:
- Fasteners
- Product Height:
- 2 in
- Product Length:
- 4 in
- Product Weight:
- 934 g
- Product Width:
- 101.6 MM
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 18
- Thread Standard:
- ANSI/ASME B1.1
- Thread Type:
- UNC
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- U-Bolt with Hex Nuts
- Type2:
- U-Bolt with Hex Nuts
- Series:
- UBG
- Product Finish:
- Galvanized
- Product Details:
- U-Bolt with Hex Nuts
- Product Material:
- Steel
Metallics UBG010 – Frequently Asked Questions
1) What size pipe or conduit will the Metallics UBG010 U-bolt clamp?
The UBG010 is a 5/16-18 U-bolt with a 1 inch inside width and 2-3/16 inch leg length, so it wraps a round member of roughly 1 inch outside diameter. Check the actual OD of what you are strapping, not the trade size - 3/4 inch rigid conduit, for example, runs about 1.05 inches OD and will not pass through a 1 inch opening.
2) Are nuts included with the Metallics UBG010 U-bolt, or do I order them separately?
Two hex nuts ship with each U-bolt, so nothing extra is needed to make the clamp up. The nuts are Grade A per ASTM A563 and thread onto the 5/16-18 UNC legs. A backing plate or saddle, if your detail calls for one, is not part of the assembly.
3) Does the Metallics UBG010 U-bolt meet Buy American requirements for a federal or public job?
The UBG010 is flagged both ARRA compliant and Buy American compliant, which is what a public-works or federally funded spec usually asks for on fasteners. Country of origin is listed as multiple, so if your submittal requires a single named origin, state that when you order.
4) Can the Metallics UBG010 galvanized U-bolt be used outdoors or in a damp location?
Galvanized steel is the finish on the UBG010, which is what you want for exterior runs, rooftop supports, and damp interior spaces where plain steel would bloom rust. For direct saltwater exposure or chemically aggressive settings, stainless is the better call.
5) What standards does this 5/16-18 U-bolt and nut assembly conform to?
Threads are cut to ANSI/ASME B1.1 in UNC form at 18 threads per inch, dimensions follow ASME B18.2.2, and the materials are ASTM A307 for the U-bolt with ASTM A563 Grade A nuts. That is the normal commercial-grade combination for a non-structural pipe or conduit support.
6) How many U-bolts come in a bag and is there a minimum order?
Metallics bags the UBG010 ten to a bag, and the order minimum is 10 each. Other sizes and quantities can be requested if the job needs a different count.
7) What wrench or socket size fits the nuts on the Metallics UBG010?
The hex nuts measure 0.489 to 0.500 inch across the flats with a height of 0.258 to 0.273 inch, so a 1/2 inch wrench or socket is the one to grab. Low-profile nut height is worth knowing if clearance behind the support is tight.
How fast can I get the Metallics UBG010 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics UBG010 come with a warranty?
Absolutely. The Metallics UBG010 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Metallics UBG010?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
Why buy the Metallics UBG010 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support,
and
rewards on
every order.
Our team is always ready to help you choose the right product for your project.
