Metallics UBS010 Bolts 5/16-18 x 2-3/16 x 1 U-Blt &NT SS (Bag 10)

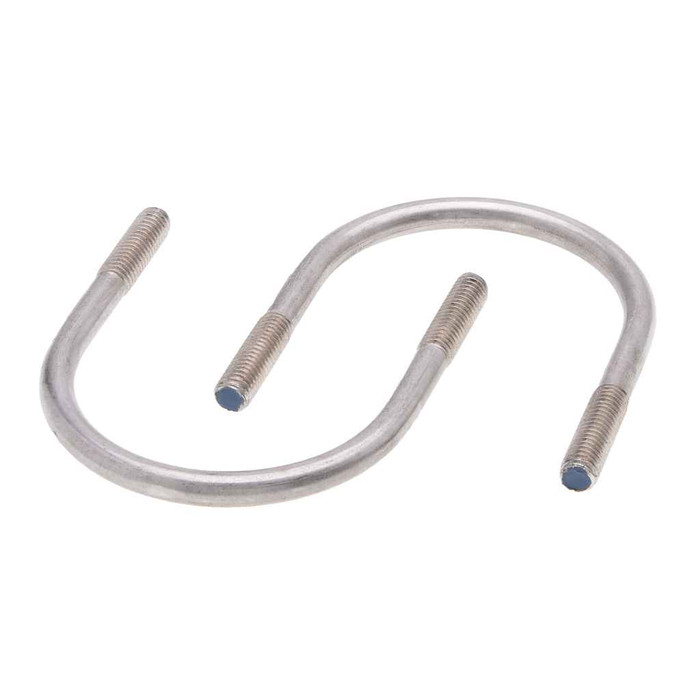

The UBS010 is a 5/16-18 U-bolt with a 1 inch inside width and 2-3/16 inch leg length, so it wraps material about 1 inch across. Measure the outside diameter of what you are clamping, not the nominal trade size, and match it to that 1 inch opening. Metallics lists other sizes in the UBS series by request if 1 inch is not your dimension.

Nuts are included. Each UBS010 U-bolt ships with two hex nuts, one per leg, so nothing else is needed to make up the clamp except whatever backing plate or strap your detail calls for.

It is 18-8 stainless steel, the standard austenitic grade used where plated carbon steel would rust. That makes it suitable for damp and exterior mechanical work. For chloride-heavy environments like coastal exposure or pool chemistry rooms, 18-8 is the baseline grade rather than the upgraded one.

Threads are 5/16-18 right hand, cut to ANSI/ASME B1.1, so any standard 5/16-18 UNC nut or coupling will run on. The nuts supplied meet ASTM F594 for stainless fasteners and the hex dimensions follow ASME B18.2.2, with a head width of 0.489 to 0.500 inch across flats and a height of 0.258 to 0.273 inch. That matters if you are working in a tight channel and need to know the wrench clearance.

Metallics lists the UBS010 as both Buy American compliant and ARRA compliant, which is what a government, school, or municipal submittal usually asks for on fasteners. Country of origin is recorded as multiple, so confirm the origin on the specific lot if your contract requires a single named source.

They are bagged 10 to a pack, and 10 each is the order minimum. Each of the ten carries its own pair of hex nuts, so a bag makes up ten complete clamps.

Metallics catalogs the UBS series for electrical, plumbing, heating, and air conditioning work alike. It is a generic stainless clamping U-bolt, so a mechanical contractor strapping copper or a sheet metal crew hanging duct support uses the same part as the electrician securing conduit.
