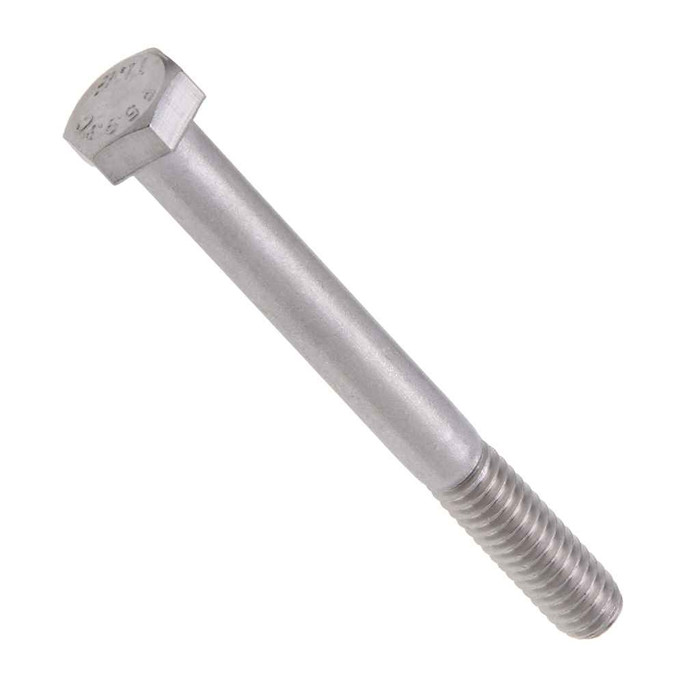

Bolts 5/8-11 X 1-1/4 Hxbt SS (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 25/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.922 - 0.938 in.
- Fastener Height:
- 0.378 - 0.403
- Fastener Length:
- 1/1/04
- Fastener Width:
- 1.051 - 1.083
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.6170 - 0.6250 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 4205 g
- Product Width:
- 88.9 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 150000 psi minimum
- Thread Per Inch:
- 11
- Yield Strength:
- 65000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JSBH919 – Frequently Asked Questions
1) Is 18-8 stainless the right choice for outdoor or wash-down electrical work?
The JSBH919 bolts are 18-8 stainless, an austenitic alloy used where general atmospheric corrosion resistance is needed, including chemical and food processing equipment. That covers most outdoor strut, enclosure, and wash-down work. Aggressive chemical exposure or salt-heavy environments can call for 316 stainless or other special corrosion resistant materials instead.
2) How many bolts come in a jar of Metallics JSBH919, and can I buy fewer?
They ship 50 to a jar, and 50 is the order minimum, sold by the count. The jar pack keeps loose hardware together on a service truck or in a shop bin. Other sizes and quantities are available by request.
3) How much grip length do I get with a 1-1/4 inch long 5/8-11 bolt?
At 1-1/4 inches overall under the head, these are short bolts. Subtract the thickness of what you are clamping plus a nut and washer to see what is left. For stacked strut, thick channel, or anything over about an inch of material, step up to a longer length in the same 5/8-11 thread rather than forcing this one.
4) Do the Metallics JSBH919 bolts meet Buy American or ARRA requirements on a public project?
The record flags these as ARRA compliant and Buy American compliant, with country of origin China. Procurement teams working a federally funded job should reconcile those two entries against the specific clause in their contract before they submit them.
