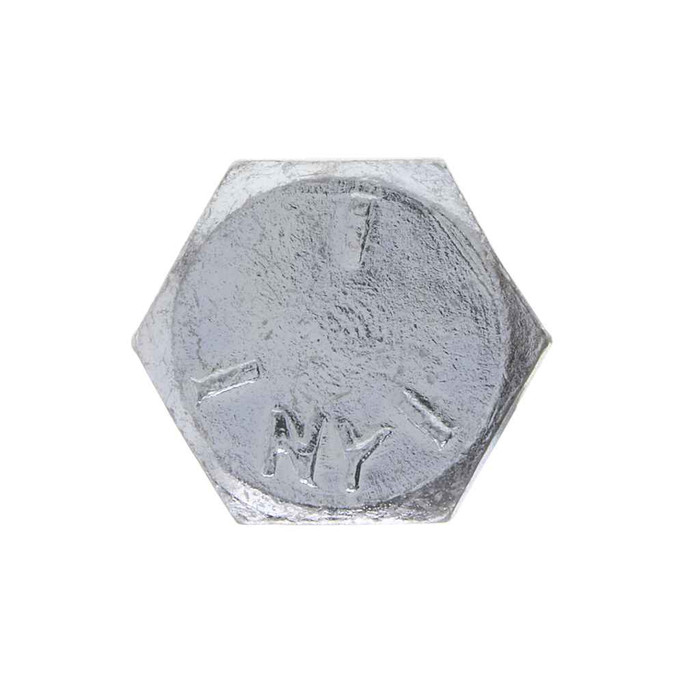

Bolts 5/8-11 X 1-3/4 G5 Hxbt St-zn (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- A cap screw made from medium carbon steel and heat-treated
- Used to mount motor to machinery. Also popular in automotive and truck repair
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 25/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.922 - 0.938 in.
- Fastener Height:
- 0.378 - 0.403
- Fastener Length:
- 1/3/04
- Fastener Width:
- 1.051 - 1.083
- Grade:
- 5
- Hardness:
- Rockwell C19-30
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.6170 - 0.6250 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 4631 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 105000 psi minimum
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.2.1-2012
- Voltage Rating:
- Zinc Chromate
- Wrenching Height:
- 0.269
- Yield Strength:
- 105000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HC and JG5HC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG5HC69 – Frequently Asked Questions
1) Can zinc plated Grade 5 bolts be used outdoors?
The JG5HC69 carries a zinc finish over steel, which handles indoor and sheltered mechanical work and short term weather exposure. It is a plated coating, not stainless or hot dip galvanized, so for permanently wet, coastal, or chemically aggressive locations choose a stainless or galvanized fastener instead.
2) How many bolts come in a jar of Metallics JG5HC69?
It ships as a jar of 50 pieces, and 50 each is the order minimum. The filled jar weighs 4631 g. The jar pack is the reason this one is handy for a service truck or a shop bench rather than loose bulk bin stock.
3) Does this Metallics hex bolt qualify for Buy American or ARRA funded jobs?
Metallics flags the JG5HC69 as both Buy American compliant and ARRA compliant. Country of origin is listed as multiple, so if your contract requires a single named origin on the submittal, confirm the origin of the specific lot you receive.
4) Do nuts and washers come with the JG5HC69 bolts?
No. The jar contains bolts only, 50 of them. Order 5/8-11 hex nuts and 5/8 washers separately to complete the connection.
5) What steel are Metallics Grade 5 hex bolts made from?
Medium carbon steel to a material standard of AISI 1008-1026, heat treated to reach Grade 5 properties: Rockwell C19-30 hardness and 105,000 psi minimum tensile strength. That heat treatment is why you should not weld or re-heat these bolts; doing so destroys the temper.
