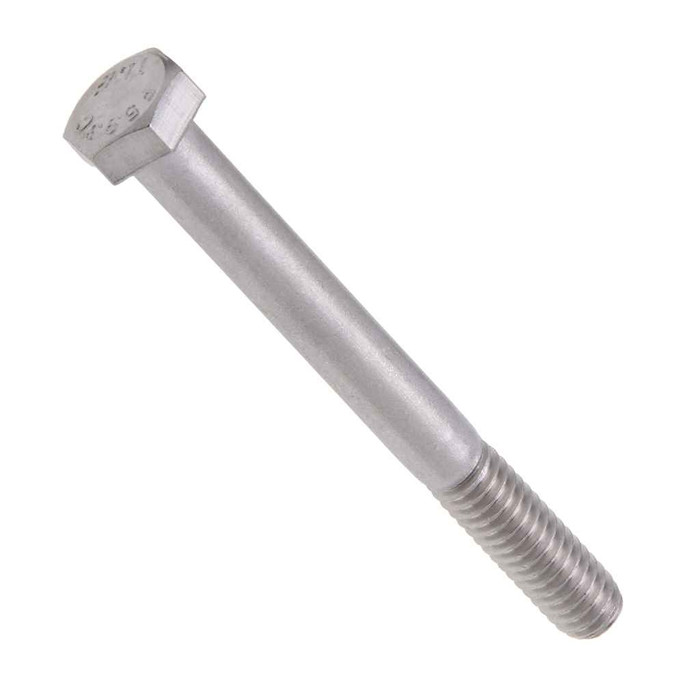

Bolts 5/8-11 X 2 Hxbt SS (Jar 50)
Features
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- 25/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.922 - 0.938 in.
- Fastener Height:
- 0.378 - 0.403
- Fastener Length:
- 2
- Fastener Width:
- 1.051 - 1.083
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Dom_18-8_SS_316_SS.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.6170 - 0.6250 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 4985 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 150000 psi minimum
- Thread Per Inch:
- 11
- Yield Strength:
- 65000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JSBH93 – Frequently Asked Questions
1) What thread and size is the Metallics JSBH93 hex bolt, and will it thread into a standard 5/8-11 tapped hole?
The JSBH93 is a 5/8-11 by 2 inch hex bolt, so it is coarse thread at 11 threads per inch and mates with any standard 5/8-11 tapped hole or nut. Shank outside diameter runs 0.6170 to 0.6250 inch and the shank length under the head is 2 inches.
2) Is the JSBH93 bolt 18-8 stainless or 316 stainless?
The JSBH93 is 18-8 stainless steel. Both 18-8 and 316 are austenitic alloys used where general atmospheric corrosion resistance is needed, but if your environment is chloride heavy or chemically aggressive, 18-8 may not be enough and you should specify a 316 bolt instead.
3) Do Metallics JSBH93 stainless bolts meet Buy American or ARRA requirements on a public project?
No. The JSBH93 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your job carries a domestic sourcing clause, this part will not satisfy it.
4) Can I use these stainless hex bolts outdoors or in a food-processing plant?
Yes for general atmospheric exposure. The 18-8 austenitic stainless is intended for applications needing general corrosion resistance, including chemical and food-processing equipment. Some chemical environments call for special corrosion resistant materials and added precautions, so verify the chemistry of your exposure before committing to a fleet of these.
5) How strong is a 5/8-11 Metallics 18-8 stainless hex bolt?
Tensile strength is 100,000 to 150,000 psi minimum with a 65,000 psi minimum yield, and hardness runs Rockwell B95 to C32. That is a structural-capable stainless fastener, but stainless is not a graded carbon steel bolt, so do not substitute it where a drawing calls for a specific SAE or ASTM grade without checking the load case.
6) How many bolts come in a jar of Metallics JSBH93, and can I buy just a few?
They ship as a jar of 50, and 50 each is the order minimum, so this is a full-jar item rather than a loose-count pick. Metallics lists other sizes and quantities of this hex bolt by request.
