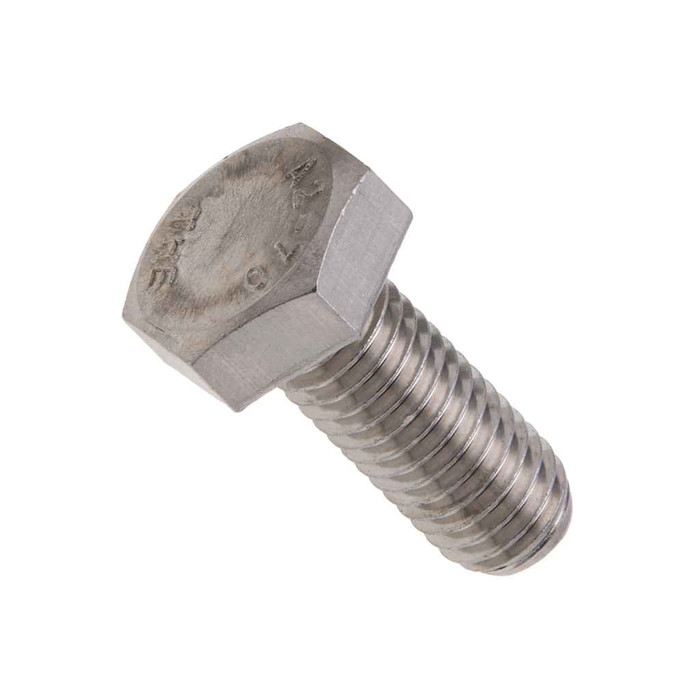

Bolts M10 x 40 HXBT SS (Jar 100)
Additional Notes
- Other sizes and quantities available by request, DIN 933 Spec for maximum width across flats on these three diameters are 17, 19 & 22 mm, respectively
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- DIN 933
- Division:
- Electrical H1
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 15.73 - 16 in.
- Fastener Height:
- 6.22 - 6.58
- Fastener Length:
- 40mm
- Fastener Width:
- 17.77
- Grade:
- A-2
- Language Code:
- EN
- Material Standard:
- ISO 3506
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-Hex_Hd_Metric_Bolt_18-8_and_316_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 3352 g
- Product Width:
- 88.9 MM
- Sub Division:
- Electrical-E H2
- Thread Pitch:
- 1.5
- Thread Standard:
- ISO 724|ISO 965-1
- Wrenching Height:
- 4.35
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- JMSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JMSBHC105 – Frequently Asked Questions
1) What thread pitch does the Metallics JMSBHC105 M10 bolt have, and will it fit a standard M10 nut?
It is an M10 x 40 hex bolt with a 1.5 mm thread pitch, which is the standard coarse pitch for M10. Threads are cut to ISO 724 and ISO 965-1, so it mates with any standard coarse M10 nut or tapped M10 hole. If your assembly uses M10 x 1.25 fine thread, this one will not thread in.
2) What wrench or socket size fits the head of the JMSBHC105 hex bolt?
Per DIN 933, the maximum width across flats for an M10 bolt in this family is 17 mm, so a 17 mm socket or wrench is what you want on it. The bolt is dimensioned to DIN 933 hex head geometry.
3) Is this M10 bolt stainless steel suitable for outdoor or damp locations?
The bolt is 18-8 stainless steel, A-2 class under ISO 3506. A2/18-8 handles outdoor, damp, and general corrosive service well, but it is not the marine grade; for salt spray, pool chemical rooms, or coastal exposure, specify 316 stainless instead.
4) How many bolts come in a jar of Metallics JMSBHC105, and can I buy fewer?
They ship 100 pieces to a jar, and 100 count is the order minimum, so the jar is the smallest unit. Other sizes and quantities are available by request.
5) Is the JMSBHC105 bolt fully threaded, and how much grip length do I get at 40 mm?
DIN 933 is the fully threaded hex cap screw standard, so the 40 mm shank is threaded the whole length under the head. That means you can clamp any stack up to roughly 40 mm minus your nut and washer thickness, and the threads bear across the full joint rather than only at the end.
6) Do these Metallics stainless hex bolts meet Buy American or ARRA requirements on a federal job?
The JMSBHC105 is flagged compliant for both Buy American and ARRA in the manufacturer data, though country of origin is listed as China. On federally funded work, confirm which clause your contract actually invokes, since domestic-origin requirements and ARRA compliance flags are not the same test.
7) Do nuts and washers come with the Metallics JMSBHC105 jar?
The jar contains bolts only, 100 of them. Order M10 x 1.5 stainless hex nuts and matching 10 mm stainless flat or lock washers separately so you do not mix carbon steel hardware with stainless and set up galvanic corrosion.
8) Are these stainless bolts only for electrical work, or can I use them for general mounting?
Metallics sells the JMSBHC series through the electrical channel, but an M10 x 40 fully threaded A2 stainless hex bolt is a general purpose fastener. Strut and channel mounting, enclosure and panel anchoring, equipment bases, and outdoor brackets are all fair game, same as any DIN 933 stainless bolt.
