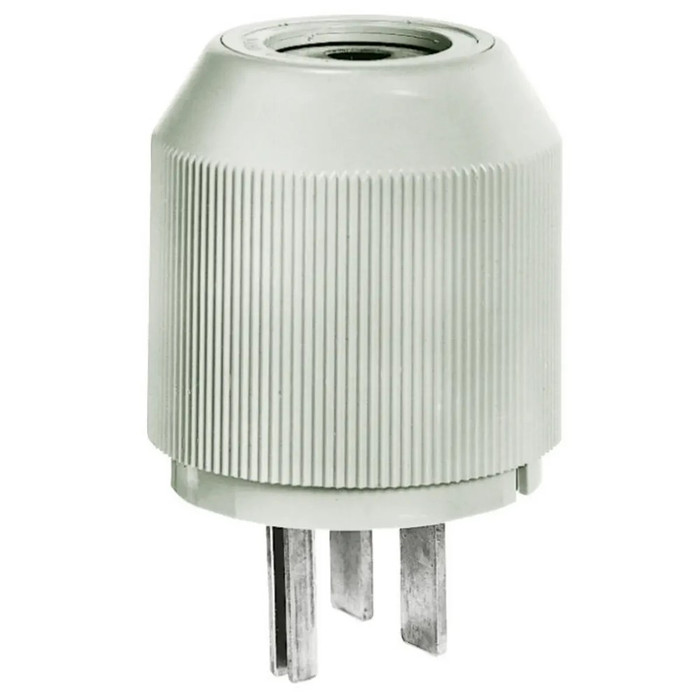

Bryant 9630NP NEMA 6-30P Rubber Plug, 30A

Bryant 9630NP NEMA 6-30P Rubber Plug, 30A

(No reviews yet) Write a Review

Model: 9630NP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$134.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bryant 9630NP NEMA 6-30P Rubber Plug, 30A

The Bryant 9630NP is a NEMA 6-30P configuration plug built with a rugged rubber housing for demanding commercial and industrial power connections. Designed to mate with compatible NEMA 6-30R receptacles, this plug supports 30A circuits and is engineered for reliable field performance in environments where standard plastic-bodied plugs fall short. The molded rubber body provides impact and abrasion resistance for job sites, shops, and industrial facilities that need a dependable connection point for portable equipment, tools, and machinery. Electricians and maintenance crews rely on plugs like the 9630NP when a cord cap or plug end needs to be replaced quickly without downtime. As a Bryant electrical product, the 9630NP is built to deliver consistent, dependable performance for professional electrical work.

Key Features

  • NEMA 6-30P Configuration: Mates with compatible NEMA 6-30R receptacles for a secure, standardized power connection.
  • Rugged Rubber Construction: Molded rubber housing resists impact, abrasion, and rough handling in industrial and jobsite settings.
  • 30A Rated: Supports 30A circuits consistent with the NEMA 6-30 configuration for heavy-duty equipment and machinery connections.
  • Field-Ready Durability: Rubber construction stands up to outdoor, shop-floor, and industrial-plant conditions better than standard plastic plugs.
  • Bryant Build Quality: Manufactured by Bryant for dependable, long-lasting performance in professional and industrial electrical applications.
  • Direct-Fit Replacement: Sized and configured to replace worn or damaged NEMA 6-30P plugs on existing cord sets and equipment.
  • Simple Field Service: Rubber plug design allows for straightforward wiring and cord replacement in maintenance and repair settings.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Industrial and Commercial Power Connections
  • Heavy-Duty Equipment and Machinery Hookups
  • Job Site and Outdoor Power Distribution
  • Replacement Plug for Existing NEMA 6-30 Cord Sets
  • Shop Floor and Plant Maintenance Applications
  • Portable Tool and Generator Cord Ends

Why Bryant?

Bryant is a trusted name in professional-grade electrical products built for demanding commercial and industrial environments. The 9630NP's rubber construction and NEMA 6-30P configuration reflect Bryant's focus on durable, dependable components that hold up to real-world use on job sites and in industrial plants alike. Choose Bryant for electrical devices designed to perform reliably where standard components fall short, keeping equipment connected and crews working.

Product Specs

list_batch:
BRY-20260909
Product Type:
Straight Blade Plug
Configuration:
NEMA 6-30P
Amperage Rating:
30A
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Plugs & Connectors
Product Material:
Rubber

Bryant 9630NP – Frequently Asked Questions

1) What receptacle does the Bryant 9630NP plug fit?
The 9630NP is a NEMA 6-30P configuration, so it mates with NEMA 6-30R receptacles. That is the 2-pole, 3-wire 30A 250V straight blade pattern used for welders, heaters and other 240V equipment. It will not go into a 6-50R, a 14-30R dryer outlet, or a 10-30R, all of which use different blade patterns.
2) Can I use the Bryant 9630NP to replace the plug end on an existing 240V equipment cord?
Yes, that is its main use. The 9630NP is configured to replace worn or damaged NEMA 6-30P plugs on existing cord sets and equipment, and the rubber plug body is built for straightforward field wiring during maintenance and repair. Your cord has to be the matching type: two hot conductors plus ground, no neutral, since the 6-30 pattern has no neutral pole.
3) What plug should I use for a 125V 15A cord end instead of a NEMA 6-30P?
The Bryant 9630NP is built for 30A NEMA 6-30P connections and is not suited to a 125V 15A cord. For that duty the Eaton Arrow Hart AH5266 Ultra Grip straight blade plug is rated 15A 125V and is an industrial specification grade device. If the cord serves 20A 125V equipment, the Pass & Seymour PS5366-SSAN EHU angled straight blade plug is rated 20A 125V.
4) Is the Leviton 5666-C a substitute for the Bryant 9630NP plug?
No. The Bryant 9630NP is a NEMA 6-30P configuration rated 30A, while the Leviton 5666-C is a 3-wire 2-pole polarized industrial grade straight blade plug for 250-volt 1-phase service. Both are 250-volt class two-pole devices, but the blade pattern and amperage differ, so the 5666-C will not mate with a NEMA 6-30R receptacle. Match the receptacle configuration before ordering either.
5) I need a 4-wire 3-pole plug, not the Bryant 9630NP. What is the alternative?
The Bryant 9630NP is a NEMA 6-30P device, which is a two-pole configuration. For a four-wire three-pole cord end, the Leviton 275-E is a commercial grade 4-wire 3-pole straight blade angle plug. The angle body also routes the cord along the wall rather than straight out, which the molded rubber body of the 9630NP does not do.
6) Is a rubber plug better than a plastic one for shop floor and outdoor use?
For rough service, yes. The 9630NP uses a molded rubber housing that resists impact and abrasion, which is why it holds up on job sites, shop floors and outdoor power distribution where a rigid plastic body cracks when a cord gets dragged or dropped. If the plug lives in a fixed, protected location, a thermoplastic or nylon body is fine.
7) Will the Bryant 9630NP handle a 30 amp circuit?
It is rated 30A, matching the NEMA 6-30 configuration, so it is sized for heavy-duty equipment and machinery on a 30A 240V branch circuit. Do not use it on a 50A circuit or feeder; the plug and the cord both have to match the breaker protecting them.
8) Can the Bryant 9630NP be used in a patient care area of a hospital?
The Bryant 9630NP is a rubber-bodied NEMA 6-30P plug for 30A industrial and commercial power connections. Where a facility requires hospital-grade cord ends on 125V equipment, Leviton offers the 8215-CAT tamper-resistant hospital-grade NEMA 5-15P plug and the 8315-CT tamper-resistant hospital-grade NEMA 5-20P plug, both supplied in packs of 100 for standardizing across a building.
9) How does a rubber plug like the Bryant 9630NP differ from a nylon cord plug?
The Bryant 9630NP uses a molded rubber housing, which resists impact and abrasion on shop floors and job sites. A nylon-bodied alternative such as the Pass & Seymour PS5965Y MaxGrip M3 cord plug uses a rigid nylon shell and, in yellow, gives high visibility on a cord run. Choose based on whether the cord end sees repeated dragging and impact or needs to be spotted easily.
10) What is the manufacturer part number to order the Bryant 6-30 rubber plug?
Order it as Bryant 9630NP. That single model covers the NEMA 6-30P rubber plug rated 30A, so there are no finish or color choices to specify.
