Thomas & Betts 90-Degree Liquid Tight Connector 1-1/4 Inch Thermoplastic Hazardous Location Rated

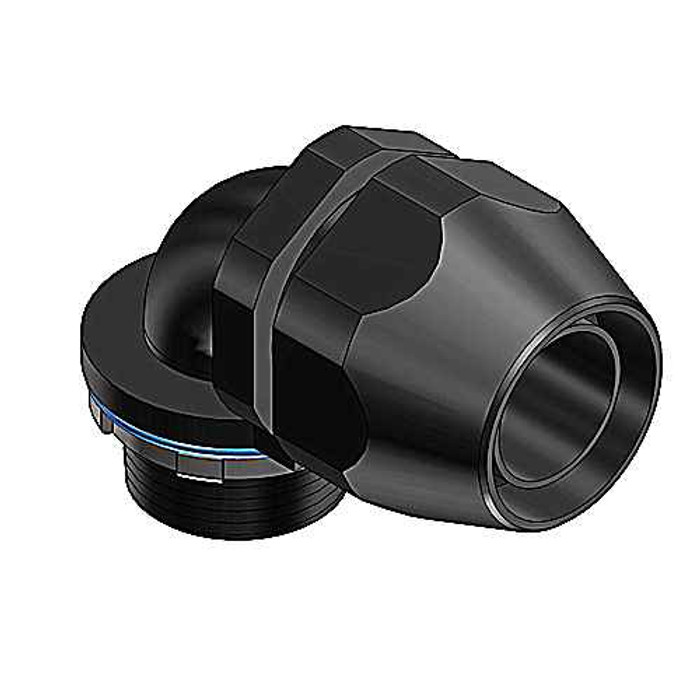

Thomas & Betts 90-Degree Liquid Tight Connector

Professional Hazardous Location Electrical Connection Solution

The Thomas & Betts 90-degree liquid tight connector delivers reliable electrical connections in demanding environments with hazardous location certification for Class I Div 2, Class II Div 1 & 2, Groups E, F, G, and Class III applications. This 1-1/4 inch thermoplastic connector features external thread construction and specialized ferrule design for secure conduit attachment and enhanced sealing performance in professional electrical installations.

Professional Features & Benefits

• Hazardous Location Certified: UL E23018 and CSA listed for Class I Div 2, Class II Div 1 & 2, Groups E, F, G, and Class III applications ensuring safe operation in challenging environments.
• 1-1/4 Inch Nominal Size: Standard sizing provides compatibility with common conduit systems for versatile installation applications.
• Thermoplastic Construction: Durable material construction offers corrosion resistance and long-term reliability in various environmental conditions.
• 90-Degree Elbow Design: Right-angle configuration enables efficient routing in tight spaces and around obstacles while maintaining secure connections.
• Enhanced Ferrule Design: Inner surface teeth bite into conduit for improved clamping action while smooth profile reduces friction for optimal sealing.
• External Thread Connection: Professional threading system ensures secure attachment and proper electrical continuity in conduit systems.
• Friction Reducing Ridges: Outside surface design minimizes installation effort while maintaining secure mechanical connection.

Technical Specifications

• Colour: Black
• Construction Type: External thread
• Department: Electrical
• Etim: EC001178 Screw connection for protective plastic hose
• Inner Dimensions Inches: 6x5x4
• Inner Quantity: 2
• Material: Thermoplastic
• Material Screw Gland: Other
• Material Sealing: Other
• Nominal Size In Inch: 1 1/4 inch
• Outer Dimensions Inches: 26.58x6.6x5.3
• Outer Quantity: 10
• Product Details: Bullet-90 Degree
• Product Group: Connectors
• Product Model: 90�-elbow
• Product Subgroup: Electrical Connectors
• Product Type: Bullet-90 Degree
• Revolving Thread: N
• Standard: UL E23018, CSA
• Thread Connection Size: Other
• Thread Length: 19.05mm
• Type Of Connection: Thread
• Unspsc: 39121420 Liquid tight connectors
• Weight Uom: 31.5 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Hazardous Location Electrical Installations
• Industrial Process Control Systems
• Chemical Processing Facilities
• Petrochemical Plant Wiring
• Manufacturing Equipment Connections
• Dust and Vapor Environment Wiring
• Commercial Kitchen Electrical Systems

Why Choose Thomas & Betts Quality?

Thomas & Betts liquid tight connectors provide professional-grade reliability with UL E23018 and CSA certification, ensuring compliance with safety standards for hazardous location applications. The thermoplastic construction and specialized ferrule design deliver long-term durability and secure connections for demanding electrical installations.
