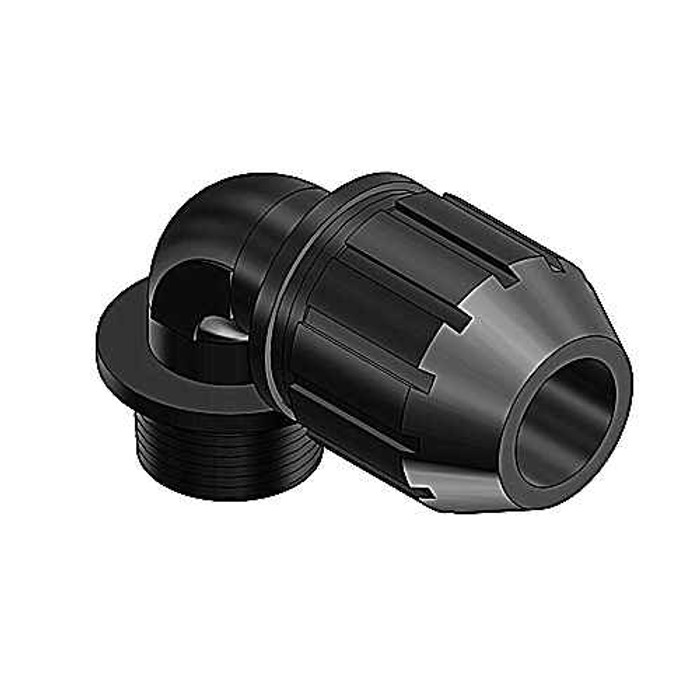

Thomas & Betts 90 Degree Cord Connector 1/2 Inch NPT Hazardous Location Cable Gland
Professional hazardous location cable management with segmented chuck design
Thomas & Betts delivers reliable cord connection solutions with this 90 degree cord connector featuring 1/2 inch NPT threading and polyamide construction. Designed for hazardous location applications, this cable gland provides secure cord management with segmented chuck technology that ensures high mechanical pullout performance while protecting cord jackets from damage. The right-angle design optimizes space utilization in confined installations while maintaining professional-grade sealing and strain relief.
Professional Features & Benefits
- Hazardous Location Rated: Approved for Class I Div 2, Class II Div 1 & 2, Class III Div 1 & 2 applications, ensuring safe operation in challenging industrial environments.
- Segmented Chuck Design: Provides superior mechanical pullout performance while preventing cord jacket cutting or damage during installation and service.
- Wide Temperature Range: Operating range of -34�C to +105�C accommodates extreme environmental conditions and diverse industrial applications.
- Polyamide Construction: Durable plastic material offers excellent chemical resistance and long-term reliability in demanding installations.
- 1/2 Inch NPT Threading: Standard pipe thread connection ensures compatibility with existing electrical systems and enclosures.
- Coast Guard Approved: Meets CG293 requirements for marine and maritime applications requiring certified electrical components.
- UL and CSA Listed: Third-party safety certifications provide assurance of quality and compliance with North American electrical standards.
Technical Specifications
- Color: Black
- Colour: Black
- Conductor Range: 0.400 to 0.560 Inch
- Department: Electrical
- Etim: EC000441 Cable screw gland
- Inner Dimensions Inches: 8x5x4
- Inner Quantity: 25
- Material: Plastic
- Material Quality: Polyamide (PA)
- Nominal Thread Size Inch Gas Pipe Thread: 1/2 inch
- Operating Temperature: -34-+105�C
- Outer Dimensions Inches: 11x8.9x5.4
- Outer Quantity: 50
- Product Details: Cord Connectors-90 Degree
- Product Group: Connectors
- Product Model: 90�-elbow
- Product Subgroup: Electrical Connectors
- Product Type: Cord Connectors-90 Degree
- Standard: UL E13938, CSA
- Suitable For Cable Diameter: 10.16-14.224mm
- Temperature Rating: -34 to +105 Degrees C
- Thread Length: 15.49mm
- Thread Type: NPT
- Unspsc: 39121431 Cable gland connector
- Weight Uom: 8.38 lbs. per 100
Professional Applications
- Hazardous Location Industrial Facilities
- Marine and Maritime Electrical Systems
- Chemical Processing Plants
- Oil and Gas Operations
- Manufacturing Facilities
- Petrochemical Installations
- Confined Space Electrical Connections
Why Choose Thomas & Betts Quality?
Thomas & Betts cord connectors deliver proven reliability through rigorous UL and CSA testing, Coast Guard approval for marine applications, and durable polyamide construction designed for long-term performance in the most demanding industrial environments.
Manufacturer Resources
Spec Sheet
Product Specs
- Colour:
- Black
- Wire Size:
- 0.400 to 0.560 Inch
- Etim:
- EC000441 Cable screw gland
- Inner Dimensions Inches:
- 8x5x4
- Inner Quantity:
- 25
- Material Quality:
- Polyamide (PA)
- Nominal Thread Size Inch Gas Pipe Thread:
- 1/2 inch
- Operating Temperature:
- -34-+105°C
- Outer Dimensions Inches:
- 11x8.9x5.4
- Outer Quantity:
- 50
- Product Group:
- Wiring Devices
- Standards:
- UL E13938, CSA
- Suitable For Cable Diameter:
- 10.16-14.224mm
- Temperature Rating:
- -34 to +105 Degrees C
- Thread Length:
- 15.49mm
- Thread Type:
- NPT
- Unspsc:
- 39121431 Cable gland connector
- Weight Uom:
- 8.38 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Cord Grips
- Product Type:
- 90 Degree Cord Connector
- Product Model:
- 90°-elbow
- Product Details:
- Cord Connectors-90 Degree
- Product Color:
- Black
- Product Material:
- Plastic
Thomas & Betts 2682 – Frequently Asked Questions
1) What cord diameter range does the Thomas & Betts 2682 90 degree cord connector grip?
The 2682 takes cord with an outside diameter of 0.400 to 0.560 inch, which is 10.16 to 14.224 mm. Measure the jacket OD of the cord you are landing, not the conductor gauge. Anything thinner than 0.400 inch will not seal or hold in the chuck, and anything over 0.560 inch will not enter, so you would need a different grip size.
2) Will the 2682 cord connector thread into a 1/2 inch hub on my enclosure?
Yes. It is a male 1/2 inch NPT connection with 15.49 mm of thread length, so it lands in any standard 1/2 inch NPT tapped hub, conduit body or box with a 1/2 inch threaded opening. On an unthreaded box you would need a locknut-style fitting instead, since this is a tapered pipe thread.
3) Is the Thomas & Betts 2682 cord grip rated for hazardous locations?
The 2682 is approved for Class I Div 2, Class II Div 1 and 2, and Class III Div 1 and 2. It is not rated for Class I Div 1. It also carries Coast Guard CG293 approval for marine work, and is UL (file E13938) and CSA listed.
4) Can this cord connector be used outdoors in freezing weather or near hot equipment?
Its operating range is -34 C to +105 C (about -29 F to 221 F), which covers northern outdoor winters and heat around motors, ovens and process piping. The body is polyamide (PA) plastic, so it also holds up to chemical exposure in processing and petrochemical areas rather than corroding like a plated metal fitting.
5) Will this cord grip damage the jacket on a portable cord when I tighten it?
It uses a segmented chuck rather than a solid compression ring. The segments close evenly around the jacket for high mechanical pullout while spreading the clamping load, which is what keeps the chuck from cutting into the cord jacket when tightened. That matters on flexible portable cord feeding equipment that vibrates or gets moved.
6) Is this the right fitting for a marine or shipboard electrical install?
Yes for Coast Guard work: the 2682 meets CG293, which is the approval marine inspectors look for on cord fittings. Combined with the polyamide body and the -34 C to +105 C range, it suits deck and engine room cord entries where a plated steel fitting would corrode.
7) What color is the Thomas & Betts 2682 and does it come in metal?
It is black plastic, specifically polyamide. There is a single model on offer, the 2682, so there is no metal or alternate color version of this particular connector. If you need a metallic body for mechanical abuse or grounding continuity, that is a different fitting family.
8) How are Thomas & Betts 2682 cord connectors packaged for a larger job?
They pack 25 to an inner carton and 50 to the outer, so a full outer is two inners. Weight runs 8.38 lbs per 100 pieces. Useful if you are staging fittings by panel or by area on a plant shutdown.
