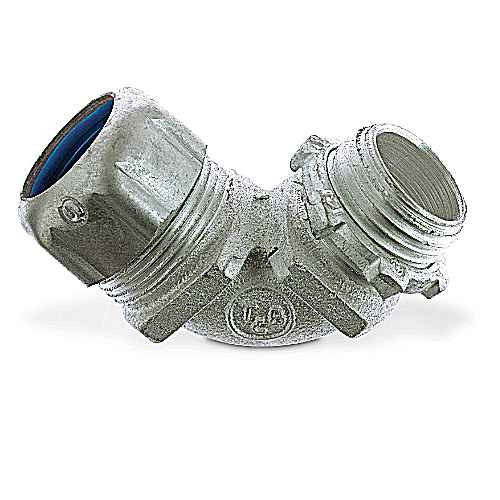

Thomas & Betts 90-Degree Electrical Connector 1/2 inch NPT Aluminum with Zinc Plating

Thomas & Betts 90-Degree Electrical Connector

Professional 90-degree conduit connection solution

Thomas & Betts delivers reliable electrical connectivity with this professional 90-degree connector featuring 1/2 inch NPT threading and durable aluminum construction with zinc plating protection. Designed for secure conduit connections with external thread construction and UL/CSA approvals for professional electrical installations.

Professional Features & Benefits

• 1/2 inch NPT Threading: Standard threading ensures secure, leak-resistant connections with compatible conduit systems
• 90-Degree Configuration: Right-angle design enables efficient routing in tight spaces and corner applications
• Aluminum Construction: Lightweight yet durable material provides excellent corrosion resistance and long service life
• Zinc Plating with Clear Chromate: Enhanced surface protection delivers superior corrosion resistance in demanding environments
• UL E23018 & CSA Approved: Certified for use with protective conduit systems ensuring code compliance and safety
• External Thread Design: Secure screw connection to housing provides reliable mechanical and electrical continuity

Technical Specifications

• Approved In Combination With Protective Conduit Csa: Y
• Approved In Combination With Protective Conduit Ul: Y
• Connection Type Screw Connection To Housing: Thread
• Construction Type: External thread
• Department: Electrical
• Etim: EC001180 Screw connection for protective metallic hose
• Inner Dimensions Inches: 8x5x4
• Inner Quantity: 25
• Material: Aluminum
• Material Housing: Other
• Nominal Size In Inch: 1/2 inch
• One Piece: N
• Outer Dimensions Inches: 8.49x5.19x8.13
• Outer Quantity: 50
• Product Details: Connectors-90 Degree
• Product Finish: Zinc Plating/Clear Chromate
• Product Group: Connectors
• Product Model: 90�-elbow
• Product Subgroup: Electrical Connectors
• Product Type: Connectors-90 Degree
• Revolving Thread: N
• Standard: UL E23018, CSA
• Surface Protection: Zinc coated
• Thread Connection Size: Other
• Thread Length: 14.28mm
• Thread Type: NPT
• Unspsc: 39121420 Liquid tight connectors
• Weight Uom: 4.5 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Conduit Systems
• Residential Electrical Projects
• Maintenance and Repair Operations
• Professional Electrical Contracting
• Code-Compliant Wiring Systems

Why Choose Thomas & Betts Quality?

Thomas & Betts electrical connectors deliver proven reliability with UL E23018 and CSA certifications ensuring code compliance and professional performance. The zinc plating with clear chromate finish provides long-lasting corrosion protection for dependable service in demanding electrical applications.
