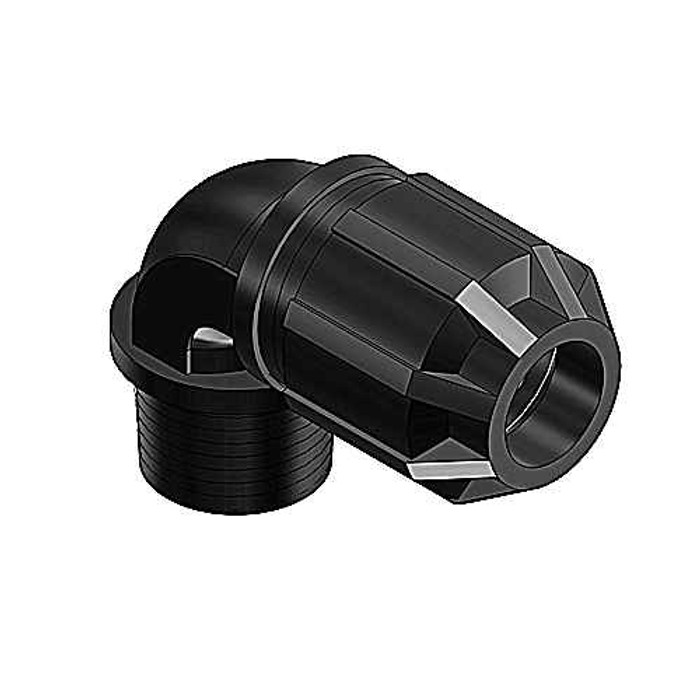

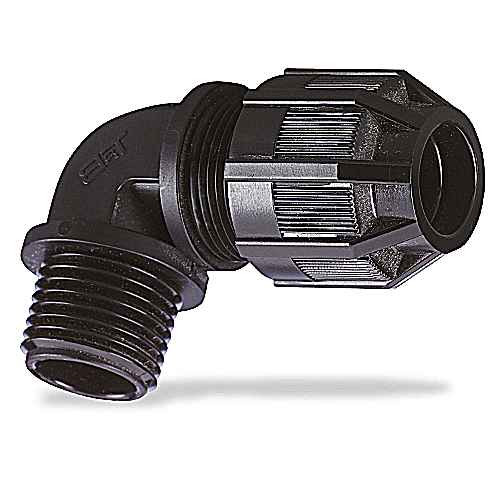

Thomas & Betts 90-Degree Cord Connector 1/2 Inch NPT with IP65 Protection
Professional Cable Entry Solution with Superior Strain Relief
The Thomas & Betts 90-degree cord connector delivers reliable cable entry performance for electrical enclosures with reduced overall size that fits into tighter spaces. Constructed from durable Polyamide/Nylon 6.6 material with 1/2 inch NPT threading, this connector provides superior strain relief and accommodates conductor ranges from 0.310 to 0.560 inches (7.9-14.2mm) with IP65 protection rating for ordinary, wet, or dry locations.
Professional Features & Benefits
- 90-Degree Design: Reduced overall size allows installation in confined spaces where straight connectors cannot fit
- IP65 Protection Rating: Provides reliable sealing against dust and water ingress for demanding environments
- Superior Strain Relief: Extended range design with gland nut restricts cable bending to prevent conductor damage
- Polyamide/Nylon 6.6 Construction: Durable material withstands temperature extremes from -34�C to +105�C
- 1/2 Inch NPT Threading: Standard thread size ensures compatibility with common electrical enclosures
- UL and CSA Listed: Meets UL E13938 and CSA 52391 standards for professional electrical installations
- Versatile Cable Range: Accommodates conductor diameters from 7.9mm to 14.2mm for flexible application use
Technical Specifications
- Color: Black
- Colour: Black
- Conductor Range: 0.310 Inch/7.9mm to 0.560 Inch/14.2mm
- Degree Of Protection Ip: IP65
- Department: Electrical
- Environmental Conditions: Ordinary, Wet, or Dry Locations
- Etim: EC000441 Cable screw gland
- Inner Dimensions Inches: 8x5x4
- Inner Quantity: 25
- Material: Polyamide/Nylon 6.6
- Material Quality: Polyamide (PA)
- Nominal Thread Size Inch Gas Pipe Thread: 1/2 inch
- Operating Temperature: -34-+105�C
- Outer Dimensions Inches: 10.7x8.9x5.3
- Outer Quantity: 50
- Product Details: Cord Connectors-90 Degree
- Product Group: Connectors
- Product Model: 90�-elbow
- Product Subgroup: Electrical Connectors
- Product Type: Cord Connectors-90 Degree
- Standard: UL E13938, CSA 52391
- Strain Relief: Y
- Suitable For Cable Diameter: 7.9-14.2mm
- Temperature Rating: -34 to +105 Degrees C
- Thread Length: 15.875mm
- Thread Type: NPT
- Unspsc: 39121431 Cable gland connector
- Weight Uom: 5.5 lbs. per 100
Professional Applications
- Industrial Control Panels and Electrical Enclosures
- Commercial Building Electrical Systems
- Manufacturing Equipment Cable Entry
- Outdoor Electrical Installations
- Process Control and Automation Systems
- Marine and Harsh Environment Applications
- Telecommunications Equipment Enclosures
Why Choose Thomas & Betts Quality?
Thomas & Betts cord connectors deliver proven reliability with UL E13938 and CSA 52391 listings, ensuring compliance with professional electrical standards. The durable Polyamide/Nylon 6.6 construction and IP65 protection rating provide long-term performance in demanding environments, while the superior strain relief design protects valuable cable investments from damage.
Manufacturer Resources
Spec Sheet
Product Specs
- Colour:
- Black
- Wire Size:
- 0.310 Inch/7.9mm to 0.560 Inch/14.2mm
- Degree Of Protection Ip:
- IP65
- Environmental Conditions:
- Ordinary, Wet, or Dry Locations
- Etim:
- EC000441 Cable screw gland
- Inner Dimensions Inches:
- 8x5x4
- Inner Quantity:
- 25
- Material Quality:
- Polyamide (PA)
- Nominal Thread Size Inch Gas Pipe Thread:
- 1/2 inch
- Operating Temperature:
- -34-+105°C
- Outer Dimensions Inches:
- 10.7x8.9x5.3
- Outer Quantity:
- 50
- Product Group:
- Wiring Devices
- Standards:
- UL E13938, CSA 52391
- Strain Relief:
- Y
- Suitable For Cable Diameter:
- 7.9-14.2mm
- Temperature Rating:
- -34 to +105 Degrees C
- Thread Length:
- 15.875mm
- Thread Type:
- NPT
- Unspsc:
- 39121431 Cable gland connector
- Weight Uom:
- 5.5 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Cord Grips
- Product Type:
- 90 Degree Cord Connector
- Product Model:
- 90°-elbow
- Product Details:
- Cord Connectors-90 Degree
- Product Color:
- Black
- Product Material:
- Polyamide/Nylon 6.6
Thomas & Betts 4961NM – Frequently Asked Questions
1) What cable diameter will the Thomas & Betts 4961NM cord connector grip?
The 4961NM takes cable from 0.310 inch (7.9mm) up to 0.560 inch (14.2mm) over the jacket. Measure the outside diameter of the cord jacket, not the conductor gauge. Anything under 7.9mm won't seal in the gland and anything over 14.2mm won't pass through, so a smaller or larger range grip is needed in those cases.
2) Can this cord grip be used outdoors or in a washdown area?
It is rated IP65 and listed for ordinary, wet, or dry locations, so dust-tight and protected against low-pressure water jets. That covers outdoor panels, damp plant rooms, and general washdown. IP65 is not an immersion rating, so do not use it where the fitting can be submerged or hit with high-pressure spray.
3) Is the Thomas & Betts 4961NM UL listed for commercial and industrial electrical work?
Yes, it carries UL E13938 and CSA 52391, so it is acceptable on both US and Canadian installations where a listed cord connector is required by the inspector.
4) Why use a 90-degree cord connector instead of a straight one?
Clearance. The elbow body turns the cord immediately at the enclosure wall, so the cable run stays tight to the box instead of projecting straight out. That's the reason to pick it when a panel sits against a wall, inside a machine guard, or in a tray with little room behind it. If you have open space behind the entry, a straight gland is simpler and costs you nothing in bend radius.
5) What temperature range can this nylon cord connector handle?
Rated -34 to +105 degrees C. The body is Polyamide/Nylon 6.6, which holds up at both ends of that span, so unheated outdoor enclosures in a cold climate and warm equipment cabinets are both within range. For anything above 105 C at the entry point, go to a metal gland instead.
6) Does this connector provide strain relief, or do I still need a separate clamp?
Strain relief is built in. The gland nut clamps the jacket and restricts bending right at the entry, so you are not relying on the terminations inside to hold the cord. No separate cable clamp is needed for the entry itself.
7) How are these cord connectors packaged for a stocking order?
They ship 25 to an inner carton and 50 to the outer, and the weight works out to 5.5 lbs per 100 pieces. Inner carton measures 8x5x4 inches, outer 10.7x8.9x5.3 inches. Useful numbers if you're setting up a van stock or a shop bin.
8) Is this a nonmetallic cord grip, and what color is it?
Nonmetallic, molded in black Polyamide (Nylon 6.6). That makes it a nonconductive and corrosion-free entry, which is why it suits marine and chemical-exposed panels where a plated metal gland would pit. It is not a substitute for a metal gland where the fitting itself needs to carry a bonding path.
