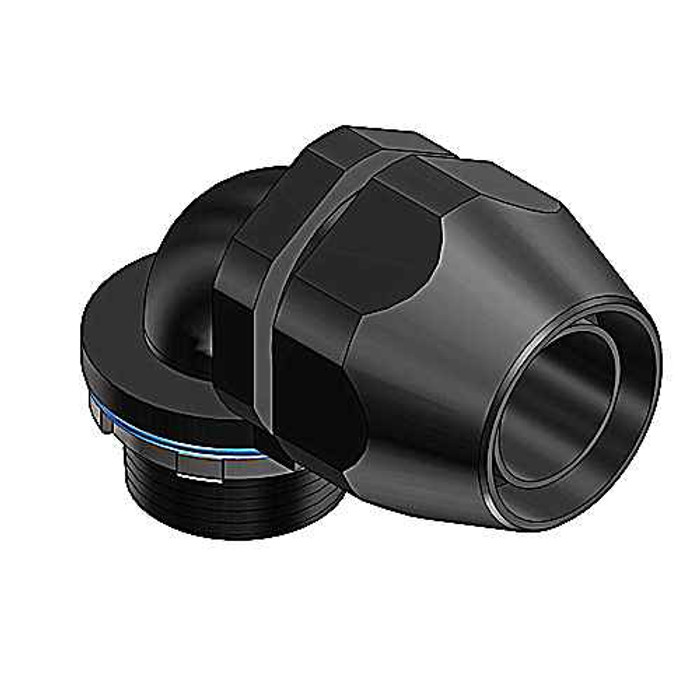

Bullet-90 Degree
LT9150P - spec sheet
Features
- Fitting ferrule designed to accept variations in conduit sizes and field conduit cuts.
- Inner surface teeth bite into conduit or tubing to enhance clamping and sealing action.
- Smooth ferrule profile reduces friction to ensure a tight conduit-to-fitting seal.
- Outside surface has friction reducing ridges.
- Suitable for hazardous locations; Class I Div 2; Class II Div 1 & 2; Groups E, F, G; Class III per N.E.C.; Article 501-4, 502-4 and 503-3
LT9150P - spec sheet
Manufacturer Resources
Product Specs
- Colour:
- Black
- Construction Type:
- External thread
- Etim:
- EC001178 Screw connection for protective plastic hose
- Inner Dimensions Inches :
- 6x5x4
- Inner Quantity:
- 2
- Material:
- Thermoplastic
- Material Screw Gland:
- Other
- Material Sealing:
- Other
- Model:
- 90°-elbow
- Nominal Size In Inch:
- 1 1/2 inch
- Outer Dimensions Inches :
- 26.7x6.8x5
- Outer Quantity:
- 10
- Product Group:
- Connectors
- Revolving Thread:
- N
- Standard:
- UL E23018, CSA
- Thread Connection Size:
- Other
- Thread Length:
- 19.48mm
- Type:
- Bullet-90 Degree
- Type Of Connection:
- Thread
- Unspsc:
- 39121420 Liquid tight connectors
- Weight Uom:
- 56 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Type:
- Bullet-90 Degree
