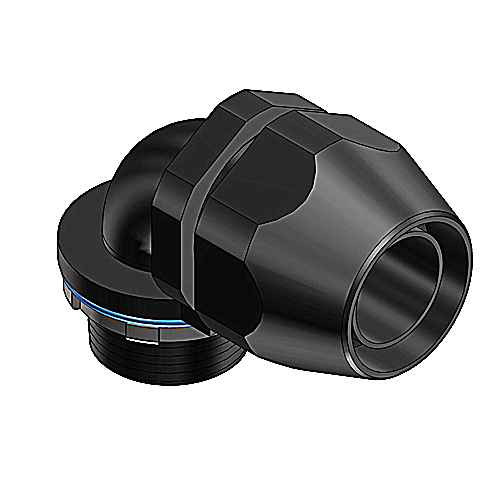

Thomas & Betts LT975P Bullet-90 Degree

Thomas & Betts LT975P Bullet-90 Degree

(No reviews yet) Write a Review

Model: LT975P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$81.11
$42.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
Bullet-90 Degree

  • Features

    • Outside surface has friction reducing ridges.
    • Smooth ferrule profile reduces friction to ensure a tight conduit-to-fitting seal.
    • Fitting ferrule designed to accept variations in conduit sizes and field conduit cuts.
    • Inner surface teeth bite into conduit or tubing to enhance clamping and sealing action.
    • Suitable for hazardous locations; Class I Div 2; Class II Div 1 & 2; Groups E, F, G; Class III per N.E.C.; Article 501-4, 502-4 and 503-3


LT975P - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Colour:
Black
Construction Type:
External thread
Etim:
EC001178 Screw connection for protective plastic hose
Inner Dimensions Inches:
8x5x4
Inner Quantity:
10
Material Screw Gland:
Other
Material Sealing:
Other
Nominal Size In Inch:
3/4 inch
Outer Dimensions Inches:
26.5x8.6x5.4
Outer Quantity:
50
Product Group:
Conduit & Raceway
Revolving Thread:
N
Standards:
UL E23018, CSA
Thread Connection Size:
Other
Thread Length:
14.78mm
Unspsc:
39121420 Liquid tight connectors
Weight Uom:
13.5 lbs. per 100
Department:
Electrical
Product Subgroup:
Liquidtight Conduit & Fittings
Product Type:
90 Degree Liquidtight Connector
Product Model:
90°-elbow
Product Details:
Bullet-90 Degree
Product Material:
Thermoplastic
Type Of Connection (Specs):
Thread

Thomas & Betts LT975P – Frequently Asked Questions

1) Can I use the LT975P 90 degree liquidtight connector in a hazardous location?
Yes, within limits. The Bullet 90 degree fitting is suitable for Class I Division 2, Class II Divisions 1 and 2 (Groups E, F, G) and Class III per the N.E.C., referencing Articles 501-4, 502-4 and 503-3. It is not rated for Class I Division 1, so a Division 1 classified area needs a different fitting.
2) Is the Thomas & Betts LT975P UL listed and CSA approved for inspection?
It carries UL file E23018 and CSA approval, which is what an electrical inspector will look for on a liquidtight termination in a commercial or institutional building.
3) Is the LT975P metal or plastic, and will it hold up outdoors?
Body is thermoplastic, finished in black, not die cast metal. That makes it non corrosive for wet and washdown locations, but it does not provide an equipment grounding path the way a metallic fitting does, so you need an equipment grounding conductor run in the conduit.
4) What is the exact part number to order this Thomas & Betts Bullet 90 degree liquidtight fitting?
Order Thomas & Betts LT975P. It is the 3/4 inch Bullet 90 degree liquidtight connector, thermoplastic, black. Only that one model is offered under this designation, so there are no finish or thread variants to pick.
5) How many Thomas & Betts LT975P connectors come in a box?
The Bullet 90 degree fittings pack 10 to the inner carton and 50 to the outer, which is the useful number when you are ordering for a multi unit or MRO stock room rather than a single termination. Shipping weight works out to 13.5 lbs per 100 pieces.
