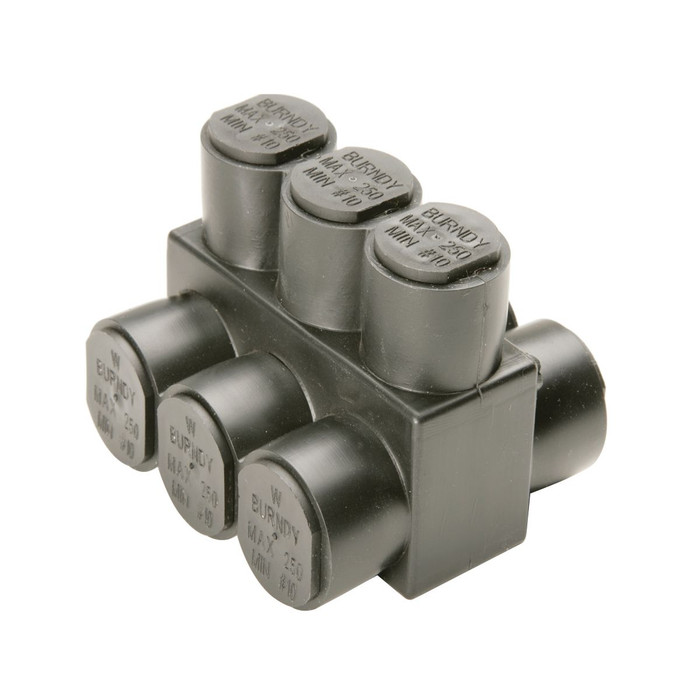

Burndy 1PLD2503 Unitap Insulated Multi-Tap Connector

Burndy 1PLD2503 Unitap Insulated Multi-Tap Connector, 3-Port, #10 AWG-250 kcmil, UV Rated Black

The Burndy 1PLD2503 is a Unitap™ insulated multi-tap connector engineered for reliable run-and-tap connections in commercial and industrial electrical systems. This aluminum multiple tap connector features double-sided (2-side) entry with 3 ports, accepting stranded copper and aluminum conductors from #10 AWG up to 250 kcmil. A UV rated black insulation covers the connector body, and an oxide inhibitor is pre-installed to help reduce corrosion at the conductor interface and speed field installation.

Key Features

• Conductor Range: Accepts #10 AWG through 250 kcmil stranded copper and aluminum conductors, per Burndy's AL and Cu strand size range ratings.
• 3-Port, Double-Sided Design: Two-side (2-side) entry with 3 ports allows multiple tap conductors to be landed from a single run connector body.
• Aluminum Construction: Aluminum multiple tap connector body provides a durable base for mechanical run-and-tap connections.
• Multi-Tap Connector Type: A Run/Tap style mechanical connector built for tapping branch conductors off a continuous run.
• Insulated, UV Rated Black: Insulated connector body with UV rated black covering suited to indoor or outdoor exposure.
• Pre-Installed Oxide Inhibitor: Oxide inhibitor is factory pre-installed to help prevent oxidation at the conductor interface before installation.
• Unitap™ Series: Part of Burndy's Unitap™ trade name lineup of mechanical multi-tap connectors.

Technical Specifications

• Conductor Range: 10-AWG
• Ports: 3
• Product Material: Copper
• Insulated: Yes
• Series: Unitap
• Connector Type: Multi Tap
• Conductor - AL Str Size Range: 10 AWG - 250 kcmil
• Conductor - Copper Str Size Range: 10 AWG - 250 kcmil
• Product Type: Run/Tap
• Trade Name: UNITAP™

Typical Applications

• Commercial and Industrial Electrical Installations
• Service Entrance and Feeder Tap Connections
• Grounding and Bonding Run-and-Tap Applications
• Panelboard and Switchgear Wiring
• Outdoor and UV-Exposed Installations

Why Burndy?

Burndy's Unitap™ multi-tap connectors are built for dependable mechanical connections, combining a pre-installed oxide inhibitor with UV rated black insulation to support long-term performance in demanding electrical environments. Choose the Burndy 1PLD2503 for code-compliant, professional-grade run-and-tap connections across copper and aluminum conductor systems from #10 AWG to 250 kcmil.
