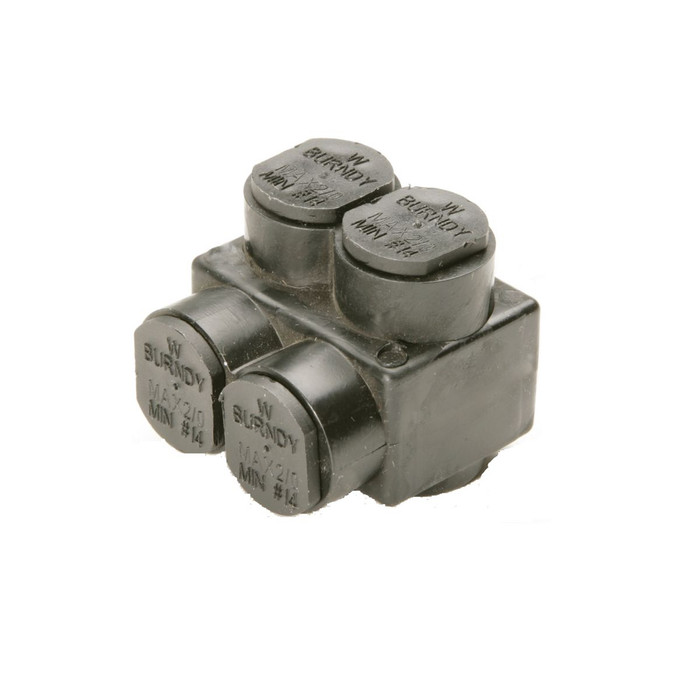

Burndy BITO350 UNITAP 2-Port Insulated Multi-Tap Connector

Burndy BITO350 UNITAP 2-Port Insulated Multi-Tap Connector, Al/Cu Rated

The Burndy BITO350 is a UNITAP™ 2-port multiple tap connector with opposite side entry, engineered for reliable run/tap connections on #10 AWG-350 kcmil conductors. Covered in clear plastisol insulation, this connector is Al/Cu rated for use with both aluminum and copper conductors on the same tap. It accepts an aluminum stranded conductor range of 8 str.-350 kcmil and a copper stranded conductor range of 8 AWG-350 kcmil, making it a versatile choice for mechanical tap connections in electrical distribution work where mixed-metal conductor runs and taps are common.

Key Features

• Conductor Range: Rated for #10 AWG-350 kcmil conductors, covering a wide span of run and tap connection needs on a single connector body.
• Aluminum Conductor Range: Accepts 8 str.-350 kcmil aluminum stranded conductors for aluminum-to-aluminum or mixed-metal taps.
• Copper Conductor Range: Accepts 8 AWG-350 kcmil copper stranded conductors for copper-to-copper or mixed-metal taps.
• 2-Port, Opposite Side Entry: Two-port multiple tap design with conductors entering from opposite sides of the connector body for flexible routing in tight enclosures.
• Al/Cu Rated Construction: Suitable for both aluminum and copper conductor combinations in mechanical tap applications, reducing the need for separate connector types.
• Clear Plastisol Insulation: Clear plastisol covering shields the connection point from the environment while allowing visual inspection of the conductors and connector body underneath.
• UNITAP™ Series: Part of Burndy's UNITAP™ line of multiple tap connectors built for run/tap applications across a wide conductor range.
• Multi-Tap Design: Classified as a Multi Tap connector type, allowing a main run conductor to be tapped without cutting or splicing the run.

Technical Specifications

• Conductor Range: 8 AWG
• Connector Type: Multi Tap
• Conductor - AL Str Size Range: 8 str.-350 kcmil
• Conductor - Copper Str Size Range: 8 AWG - 350 kcmil
• Product Type: Run/Tap
• Trade Name: UNITAP™

Typical Applications

• Electrical Distribution and Run/Tap Connections
• Commercial and Industrial Wiring Installations
• Mechanical Tap Connections on Al/Cu Conductors
• Panelboard and Switchgear Tap-Off Connections
• Multi-Conductor Junction and Splice Points
• Feeder and Branch Circuit Tap Applications

Why Burndy?

Burndy's UNITAP™ BITO350 delivers a mechanical multi-tap connection engineered for dependable performance across a wide #10 AWG-350 kcmil conductor range, with separate aluminum (8 str.-350 kcmil) and copper (8 AWG-350 kcmil) stranded conductor ratings for accurate application matching. With Al/Cu rated construction and clear plastisol insulation for inspection and protection, the BITO350 is built to support code-compliant, opposite-side-entry tap connections for professional electrical installations that demand consistent mechanical performance.
