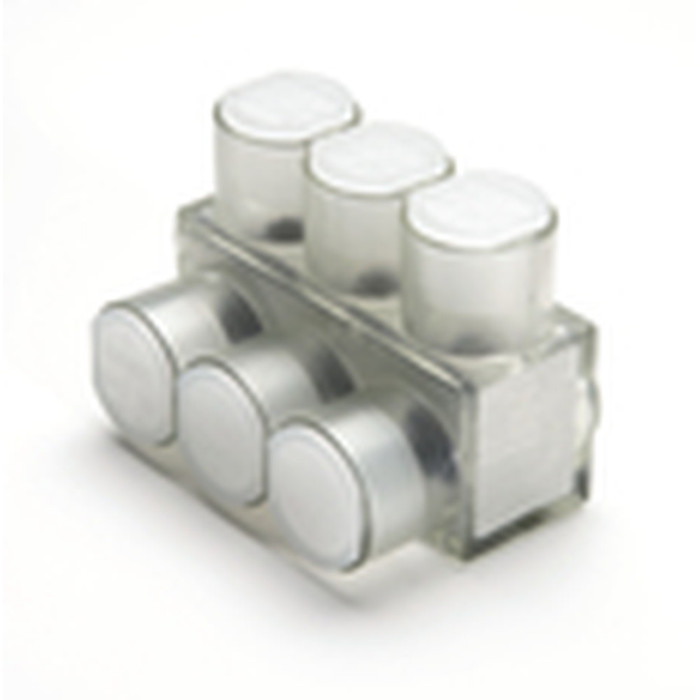

Burndy BIBS2/06 6-Port Clear Insulated Aluminum Multi-Tap Connector

Burndy BIBS2/06 6-Port Clear Insulated Aluminum Multi-Tap Connector

(No reviews yet) Write a Review

Model: BITO2/0

In Stock (leaves warehouse same day if ordered before 3pm ET)

$21.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy BIBS2/06 6-Port Clear Insulated Aluminum Multi-Tap Connector, Al/Cu Rated

The Burndy BIBS2/06 is a 6-port clear insulated aluminum multi-tap connector for reliable run/tap connections in Al/Cu rated electrical systems. With single side entry and a wire range of #14-2/0 AWG (8 AWG-2/0 AWG aluminum, 14 AWG-2/0 Str copper), this UNITAP™ connector carries a 600V minimum rating with a pre-installed oxide inhibitor. UL Listed to UL468A-468B and CSA Certified, it suits commercial and industrial work.

Key Features

  • Wire Range: Accepts #14-2/0 AWG conductors (8 AWG-2/0 AWG aluminum, 14 AWG-2/0 Str copper) for flexible run/tap connections.
  • Durable Construction: Aluminum connector body with aluminum hardware, built for Al/Cu rated service.
  • 6-Port Multi-Tap Design: Single side entry with 6 ports and 6 screws, secured with a 3/16 hex key.
  • Clear Insulation: Clear plastisol covering protects the connection while allowing visual inspection.
  • Pre-Installed Oxide Inhibitor: Factory-applied to help prevent corrosion at the aluminum/copper interface.
  • Voltage Rating: Minimum 600V rating suited to power distribution applications.
  • Finish: Unplated aluminum connector body and hardware.

Certifications & Compliance

  • UL Listed to UL468A-468B
  • CSA Certified
  • RoHS Compliant

Technical Specifications

  • Ports: 6
  • Product Material: Aluminum
  • Insulated: Yes
  • UL Recognized: N
  • Aluminum Size (Range): 8 AWG-2/0 AWG
  • Connector Type: Multi Tap
  • CULUS: N
  • Hex Size (Key): 3/16
  • Number of Screws: 6
  • ROHS Compatible: Compliant
  • Plated (Yes or No): N
  • CSA Certified: Y
  • Width (in): 1.31
  • Copper Stranded (Range): 14 AWG-2/0 Str
  • Rated for Direct Burial: N
  • Height (in): 1.38
  • Type of Plating: Unplated
  • Copper Solid Size (Range): N/A
  • Length (in): 4.20
  • Type of Hardware: Aluminum
  • Industry Standards: UL468A-468B
  • UL Listed: Y
  • Min Voltage Rating: 600
  • UPC: 781810223918
  • Conductor - AL Str Size Range: 8 AWG-2/0 AWG
  • Conductor - Copper Str Size Range: 14 AWG - 2/0 AWG
  • Product Type: Run/Tap
  • Trade Name: UNITAP™

Typical Applications

  • Commercial and Industrial Electrical Distribution
  • Panelboard and Switchgear Tap Connections
  • Grounding and Bonding Tap-Offs
  • Run/Tap Splicing on Al or Cu Conductors
  • New Construction and Retrofit Wiring

Why Burndy?

Burndy's UNITAP™ multi-tap connectors pair aluminum construction with a pre-installed oxide inhibitor and clear insulation for dependable Al/Cu rated connections. Backed by UL Listing to UL468A-468B and CSA Certification, the BIBS2/06 delivers the code-compliant performance electrical professionals rely on.

Manufacturer Resources

Spec Sheet

Product Specs

Wire Size:
2/0 AWG
Ports:
6
Insulated:
Yes
UL Recognized:
N
Aluminum Size (Range):
8 AWG-2/0 AWG
CULUS:
N
Number of Ports:
6
Hex Size (Key):
3/16
Number of Screws:
6
ROHS Compatible:
Compliant
Plated (Yes or No):
N
CSA Certified:
Y
Width (in):
1.31
Copper Stranded (Range):
14 AWG-2/0 Str
Rated for Direct Burial:
N
Height (in):
1.38
Type of Plating:
Unplated
Length (in):
4.20
Type of Hardware:
Aluminum
Industry Standards:
UL468A-468B
UL Listed:
Y
Insulation Type:
Plastisol
Min Voltage Rating:
600
UPC:
781810223918
Connector Type:
Multi Tap
Conductor - AL Str Size Range:
8 AWG-2/0 AWG
Conductor - Copper Str Size Range:
14 AWG - 2/0 AWG
Product Type:
Run/Tap
Trade Name:
UNITAP™
list_batch:
BUR-20260916
Product Material:
Aluminum
