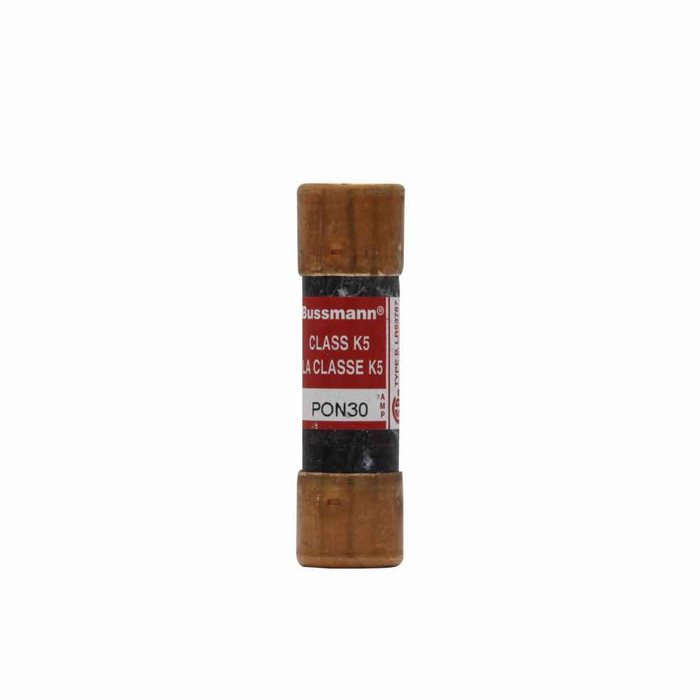

Bussmann PON One-Time CSA Type P Ferrule Fuse, 250V
The Bussmann PON One-Time CSA Type P Ferrule Fuse, 250V from Eaton Bussmann is a one-time (non-renewable) fuse engineered for reliable overcurrent protection in standard fuse holder applications. This CSA Type P fuse is available across an Amp Rating range from 15A to 60A, so one product family covers a wide span of branch circuit, control circuit, and equipment protection needs in commercial and industrial installations. Every rating in the family shares a 250V voltage rating, a 10 kAIC interrupting rating at 250 Vac, non-indicating operation, standard code construction, and a ferrule end (X) termination for secure clip-style mounting, making the series a straightforward replacement across compatible fuse holders.
Key Features
- Amp Rating Range: Available in 15A, 20A, 25A, 30A, 35A, 40A, 45A, 50A, and 60A ratings to match a wide range of branch circuit and equipment protection needs.
- Voltage Rating: Rated 250V for standard low-voltage circuit applications.
- Interrupting Rating: 10 kAIC at 250 Vac provides dependable short-circuit interrupting capability across the amp rating range.
- One-Time Fuse Design: One-time (non-renewable) fuse element delivers accurate, single-use overcurrent response and is replaced after opening.
- Type P Construction: CSA Type P, standard code fuse body sized for compatibility with standard fuse holders and clips.
- Ferrule End Termination: Ferrule end (X) construction for a secure, low-resistance connection in ferrule-style fuse holders.
- Non-Indicating Element: Non-indicating design suited to standard installations that do not require blown-fuse indication.
- Standard Code Interchangeability: Standard code dimensions allow the fuse to serve as a straightforward replacement across compatible ferrule-style fuse holders.
Technical Specifications
- Fuse Indicator: Non-indicating
- Compliances: Not Applicable
- Item Quantity: 10
Typical Applications
- Branch Circuit Overcurrent Protection
- Commercial and Industrial Electrical Panels
- Control Circuit and Equipment Protection
- Motor and Machinery Circuit Protection
- Replacement Fuse for Standard Fuse Holders and Clips
- Panelboard and Load Center Wiring
Why Bussmann?
Eaton Bussmann fuses use standard code construction for consistent fit and performance in industry-standard fuse holders. The PON series' one-time fuse design and 10 kAIC interrupting rating at 250 Vac deliver dependable, code-compliant overcurrent protection for professional electrical installations. With ratings spanning 15A to 60A, the series gives electrical professionals a single trusted fuse family for a broad range of branch circuit and equipment protection applications.
Manufacturer Resources
Product Specs
- Connection:
- Ferrule end x ferrule end
- Packaging Type:
- Standard
- Department:
- Electrical
- Fuse Indicator:
- Non-indicating
- Voltage Rating:
- 250V
- Compliances:
- Not Applicable
- Special Features:
- One time fuse
- Item Quantity:
- 10
- Interrupt Rating:
- 10 kAIC at 250 Vac
- Product Type:
- Fuse
- Amperage Rating:
- 15A-60A
- Configuration:
- Non-Indicating
- Product Group:
- Fuses
- Product Subgroup:
- Other Fuses
