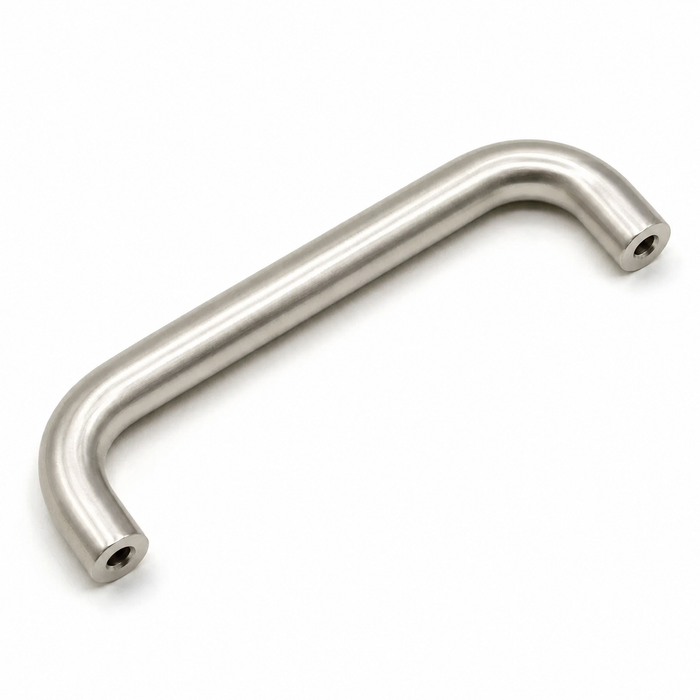

Cal-Royal PUL205 Solid Bar Round Door Pull, 3/4" Diameter, 2-1/4" Projection, 5-1/2" CTC

Cal-Royal PUL205 Solid Bar Round Door Pull, 3/4" Diameter, 2-1/4" Projection, 5-1/2" CTC

(No reviews yet) Write a Review

Model: PUL205-US28
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal PUL205 Solid Bar Round Door Pull, 3/4" Diameter, 2-1/4" Projection, 5-1/2" CTC

The Cal-Royal PUL205 is a solid bar round door pull engineered for durable, everyday performance on commercial doors. Featuring a 3/4" diameter round bar, 2-1/4" projection, and 5-1/2" center-to-center mounting, this pull is built from solid stainless steel, brass, or aluminum for long-term reliability. It uses a Type 1 thru-bolt mount designed for 1 ¾" thick doors, making it a dependable choice for institutional, retail, and office environments where consistent hardware performance matters.

Key Features

  • Precise Dimensions: 3/4" diameter solid bar with 2-1/4" projection and 5-1/2" center-to-center spacing for standard door pull applications.
  • Solid Construction: Manufactured from solid stainless steel, brass, and aluminum material for exceptional strength and long-lasting durability.
  • Thru-Bolt Mounting: Type 1 thru-bolt mount is designed for 1 ¾" thick doors, ensuring a secure and stable installation.
  • Easy Installation: Straightforward mounting hardware and design allow for quick, hassle-free installation on compatible doors.
  • Individually Packed: Each unit is individually packed to protect the finish and ensure the product arrives in pristine condition.
  • Architectural Finish Options: Available in a range of architectural finishes to complement diverse commercial door hardware schemes.

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Series: Door Pulls Series
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Door Pulls
  • Subcategory: Door Pulls
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal PUL205?

Cal-Royal door pull products deliver professional-grade reliability through solid stainless steel, brass, and aluminum construction designed to withstand demanding commercial use. The PUL205's solid bar design and secure thru-bolt mounting provide dependable, long-term performance for high-traffic door applications where consistent operation is essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Door Pulls Series
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Subcategory:
Door Pulls
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Cal-Royal PUL205-US28 – Frequently Asked Questions

1) What hole spacing do I need to drill for the Cal-Royal PUL205 pull?
Center-to-center on the PUL205 is 5-1/2 inches, so your two thru-bolt holes go 5-1/2 inches apart. If you are replacing an existing pull, measure the existing hole centers first. Anything other than 5-1/2 inches means new holes in the door face, and on a metal door that is a real job, not a swap.
2) What is the closest heavy duty equivalent to the Cal-Royal PUL205 solid bar round pull?
The Ives 8102HD is the nearest match on bar stock: it is a heavy duty straight door pull built on a 3/4" round bar, the same bar diameter as the PUL205, with 1-1/2" clearance. The PUL205 carries a 2-1/4" projection on a 5-1/2" center-to-center spread, so the two differ in how far the grip stands off the door face even though the bar itself feels identical in the hand. If the door prep is already drilled for the PUL205 hole spacing, confirm the 8102HD centers before treating it as a drop-in.
3) I want a thicker grip than 3/4 inch on my entrance doors. What round bar pull steps up in diameter?
Two peers move up to a 1" round bar. The Ives 8103HD is a heavy duty straight pull in 1" round with through bolt mounting, the same mounting approach as the PUL205's Type 1 thru-bolt. The Ives 8169 is a C style offset solid pull, also 1" diameter with heavy duty mounting, if you want the grip to sweep away from the door face rather than run straight. The ABH AB3300 is a straight flat end pull at 1.00" diameter for a squared-off end detail instead of the PUL205's round profile.
4) The PUL205 is for 1 3/4 inch doors. What pull should I use on a thinner 1-3/8 inch door?
The Deltana OHP620 off-set handle pull is supplied as a back-to-back set with a stated door thickness range of 1-1/8" to 1-3/8", which covers thinner doors than the PUL205's Type 1 thru-bolt mount for 1 3/4" doors. It is an offset handle rather than a straight bar, so the grip geometry changes along with the door thickness it suits.
5) My spec calls for an ADA compliant offset pull. Does the Cal-Royal PUL205 cover that, or do I need a different part?
The Ives 8145EZHD is the part written for that line item: a 45 degree offset door pull with heavy duty mounting hardware, described as ADA compliant in the EZ series. The PUL205 is a straight solid bar pull with a 2-1/4" projection and 5-1/2" center-to-center spacing. If the drawing calls out an ADA compliant offset, order the 8145EZHD rather than substituting the straight bar.
6) How much hand clearance does the Cal-Royal PUL205 give behind the bar?
Projection is 2-1/4 inches off the door face, measured to the bar. With a 3/4 inch round bar, that leaves room for a gloved hand to wrap the grip. If you need more knuckle room, say for a door where a push plate or lock trim sits close by, look at a bigger diameter bar such as the Ives 8103HD, which is a 1 inch round thru-bolted pull.
7) Is the PUL205 a straight pull or an offset pull, and which should I use?
The PUL205 is a straight solid bar pull, both ends landing on the door face at the same 2-1/4 inch projection. Straight bars suit doors where you grab and pull square to the face. Offset pulls, where one leg stands further off the door than the other, angle the grip toward the pull direction and are usually chosen on doors people approach on the move or where the grip needs to clear an adjacent stile. If that is your opening, the Ives 8145 45 degree offset or the Ives 8169 C style offset are the offset alternatives.
8) What finishes does the Cal-Royal PUL205 round pull come in?
Five finishes: US3 polished brass, US10B antique bronze oiled, US15 satin nickel, US28 satin aluminum clear anodized, and US32D satin stainless steel. For a building already standardized on brushed stainless hardware, US32D is the match; US28 is the one that lines up with anodized aluminum storefront entrances.
9) Is one PUL205 enough for a door, or do I need a pull on both sides?
The PUL205 is a single pull with a thru-bolt mount, so one unit handles one face. A typical pull/push opening pairs it with a push plate on the opposite side, such as the Trimco 1001-1 heavy duty push plate at 3 by 12 inches. If you want a grip on both faces of the same door, order two and note that thru-bolting one pull occupies the same holes, so back-to-back mounting is a different assembly, like the Deltana SSPORBB24 back-to-back round offset set.
10) I need door pulls for an office building refit. How does the PUL205 compare to other commercial round pulls?
The PUL205 is a 3/4 inch round solid bar, 2-1/4 inch projection, 5-1/2 inch center-to-center, thru-bolted. Close alternatives in the same straight round bar family: the Ives 8102HD, also a 3/4 inch round bar heavy duty straight pull with 1-1/2 inch clearance; the Ives 8103HD in 1 inch round with through bolt mounting; and the ABH AB7200, a solid stainless 7/8 inch diameter flat end pull with through-bolt mounting. The differences that matter on a refit are bar diameter and hole spacing, so pick by what your existing doors are drilled for.
11) Which of these pulls comes as a back-to-back pair for a glass or full-glass entrance?
Three peers are sold as back-to-back sets: the Deltana OHP620 off-set handle pull, the Deltana SSPOBB24 24" modern offset door pulls, and the Deltana SSPORBB24 24" round offset door pulls. The Cal-Royal PUL205 is a 3/4" diameter solid bar pull on a 5-1/2" center-to-center spread using a Type 1 thru-bolt mount, so for a matched pair on both faces of a glass door the 24" Deltana back-to-back sets are the ones built for that job.
12) Is the Trimco 1001 push plate a substitute for the Cal-Royal PUL205?
No. The Trimco 1001-1 is a heavy duty push plate measuring 3" x 12", a flat plate you press against, with no grip to pull on. The PUL205 is a solid bar round pull, 3/4" diameter with a 2-1/4" projection, that a hand wraps around. The two are the opposite halves of a push/pull opening: the plate goes on the swing side, the pull on the side you draw the door toward you. The Trimco 1041 half-round push plate at 8" x 16" is likewise a push-side plate, not a pull.
13) I need one part that handles both the push and the pull side. What is the alternative to buying the PUL205 plus a plate?
The Trimco 1070 Series classic push/pull plates at 3-1/2" x 15" combine both functions in one plate family, so a single line item dresses the opening. The Cal-Royal PUL205 is a pull only, a 3/4" diameter solid bar on 5-1/2" centers, and pairs with a separate push plate such as the Trimco 1001-1 at 3" x 12" when you want the grip on the pull face.
14) What pull should I put on a restroom door instead of a standard bar pull?
The Trimco 1035 Ultimate Restroom Pull is the heavy duty pull built specifically for restroom doors. The Cal-Royal PUL205 is a general commercial solid bar pull, 3/4" diameter with 2-1/4" projection, used across office, retail, healthcare, educational and multi-tenant residential openings. On a restroom opening where you want the purpose-built part, the 1035 is the one to specify.
15) I have a non-standard pull length to cover. Which of these pulls offers custom lengths?
The ABH AB3330 Series is an offset round end pull offered with custom length options, which is the route when the opening needs a length outside a catalog size. The Cal-Royal PUL205 is a fixed 5-1/2" center-to-center solid bar with a 2-1/4" projection, so it suits standard door pull applications rather than a made-to-length run.
16) Which stainless steel pull is closest to the Cal-Royal PUL205 on bar diameter and mounting?
The ABH AB7200 is a solid stainless steel flat end pull handle at 7/8" diameter with through-bolt mounting, sitting just above the PUL205's 3/4" bar and using the same through-bolted approach as the PUL205's Type 1 thru-bolt mount. The PUL205 is offered in US32D satin stainless steel among its finishes, so both give you a stainless grip; the difference is the AB7200's flat end detail against the PUL205's round bar profile.
17) I cannot drill through the door. Is there a surface mount pull instead of a thru-bolt one?
The ABH AB3310 is an offset flat end door pull handle described as commercial grade surface mount, which fastens to the door face rather than passing through it. The Cal-Royal PUL205 uses a Type 1 thru-bolt mount designed for 1 3/4" doors, so it needs holes through the leaf. Where the door cannot be drilled through, the AB3310 is the mounting method to look at.
18) Is the Cal-Royal PUL205 solid bar or hollow tube?
Solid bar, in stainless steel, brass, or aluminum depending on the finish you order. Solid stock matters on a school or hospital corridor door where a pull takes daily abuse; a hollow tube dents and works loose at the thru-bolt in a way solid bar does not.
19) What is the difference between a flat end and a round end pull when I am matching existing hardware?
It is the shape of the bar where it meets the mounting post. The ABH AB3300 straight flat end pull and the ABH AB3310 offset flat end pull finish square; the ABH AB3330 offset round end pull finishes rounded. The Cal-Royal PUL205 is a solid bar round pull at 3/4" diameter, so on a fleet of doors already carrying round bar stock it reads as a match, while a flat end pull will show a visibly different termination alongside it.
20) Is there a longer single-side pull for a tall entrance door?
The Deltana SSP1210 is a 12" contemporary pull mounted on a single side, giving a longer grip than the Cal-Royal PUL205's 5-1/2" center-to-center spread while still being a one-side part rather than a back-to-back set. For a longer run still, the Deltana SSPORBB24 is a 24" round offset pull, though it is supplied back-to-back for both faces.
