Camden CM-SRX2 Secure Wireless...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$68.00
$45.62

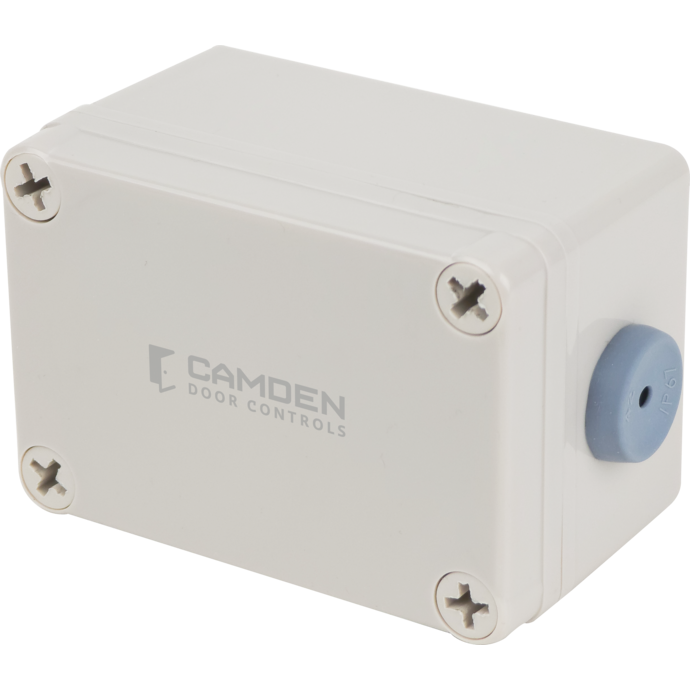

Camden CM-SRX2 Secure Wireless Receiver, 2 Channels, 2 Relays, 868.35 MHz, Latching/Bi-stable Selectable, Built-In Antenna, IP65 Outdoor Rated

Camden CM-SRX2 Secure Wireless Receiver, 2 Channels, 2 Relays, 868.35 MHz, Latching/Bi-stable Selectable, Built-In Antenna, IP65 Outdoor Rated

(No reviews yet) Write a Review

Model: CM-SRX2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$68.00
$45.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CM-SRX2 Secure Wireless Receiver, 2 Channels, 2 Relays, 868.35 MHz, Latching/Bi-stable Selectable, Built-In Antenna, IP65 Outdoor Rated

CM-SR Series wireless system includes a high security stand-alone wireless receiver with one Form 'A' and one Form 'B' relay outputs. The receiver features a rugged construction with a built-in antenna for mounting indoors or outdoors.

CM-SR Series wireless systems are designed to activate locking devices, such as electric strikes and automatic gate and door operators. Ideal for one or two door access control, in retail, commercial, and healthcare facilities. The rugged IP65 rated components are also perfect for gate or parking garage applications.

Ultra compact two button transmitters are built tough, with 100ft min. range (line of sight). A system kit is available, complete with (1) receiver and (2) two button fobs.

FEATURES

CM-SRX2
  • 868Mhz. high security rolling code, with 19 trillion combinations
  • 2-channel receiver
  • 1st relay momentary, 2nd relay momentary or latching operation
  • 30 transmitters (fobs) capacity
  • Easy transmitter enrollment
  • Built-in antenna
  • IP65 rated weather-resistant enclosure

SPECIFICATIONS

CM-SRX2
Voltage: 12/24V, AC/DC
Frequency: 868.35 Mhz.
Current Draw: (Max) 80mA
Relay: (1) SPST, normally open, 1st relay momentary, 2nd momentary or latching/bi-stable, SPST normally closed, 1A @ 30 VDC
Operating Temp: -4°F to 185°F (-20°C to +85°C)
Dimensions: 2-17/32"W x 3-3/4"H x 2-7/32"D
(64mm x 95mm x 56mm)

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Subcategory:
Wireless
Product Group:
Access Control
Product Type:
Receivers and Transmitters
Series:
CM-SR Series
Warranty:
3 Year Warranty
Product Voltage:
12/24V, AC/DC
Product Category:
Access Control
Department:
Door Hardware

Camden Door Controls CM-SRX2 – Frequently Asked Questions

1) Can the Camden CM-SRX2 wireless receiver be mounted outdoors at a gate or parking garage?
Yes. The CM-SRX2 uses an IP65 rated weather-resistant enclosure with a built-in antenna, so it can be mounted indoors or outdoors without an external whip. Operating range is -4F to 185F (-20C to +85C), which covers most gate and parking structure installs. Camden lists gate and parking garage applications specifically for this reason.
2) What are the relay outputs on the Camden CM-SRX2, and can one be used to hold a door unlocked?
There are two relays. The first is a Form A SPST normally open contact and runs momentary only. The second is SPST normally closed and can be set for momentary or latching/bi-stable operation, so that channel is the one to use if you want a fob press to hold a device on until the next press. Contacts are rated 1A at 30 VDC, so a higher-current lock needs a slave relay.
3) Does the Camden CM-SRX2 come with key fobs, or do I order transmitters separately?
The CM-SRX2 is the stand-alone receiver on its own. Camden offers a CM-SR system kit that includes one receiver plus two two-button fobs, so if you have no transmitters yet, order the kit or add fobs separately. The two-button transmitters give a minimum 100ft line-of-sight range.
4) Can one Camden CM-SRX2 control two separate doors?
Yes. It is a two-channel receiver with two independent relay outputs, so a two-button fob can trigger one device on each channel, for example a front entry strike on channel one and a gate operator on channel two. Camden lists it for one or two door access control.
5) How many key fobs can be programmed to a Camden CM-SRX2 receiver?
Up to 30 transmitters can be enrolled on one CM-SRX2. For a small commercial tenant space or a gate serving a handful of staff that is usually enough; a larger tenant list means either a second receiver or a credential-based reader instead.
6) Is the Camden CM-SR wireless system secure enough for a commercial building, or is it a simple garage-style remote?
The CM-SR system runs at 868.35 MHz using a rolling code with 19 trillion combinations, so the code changes on every press rather than transmitting a fixed value like a basic garage remote. Camden positions it for retail, commercial, and healthcare one or two door access control.
