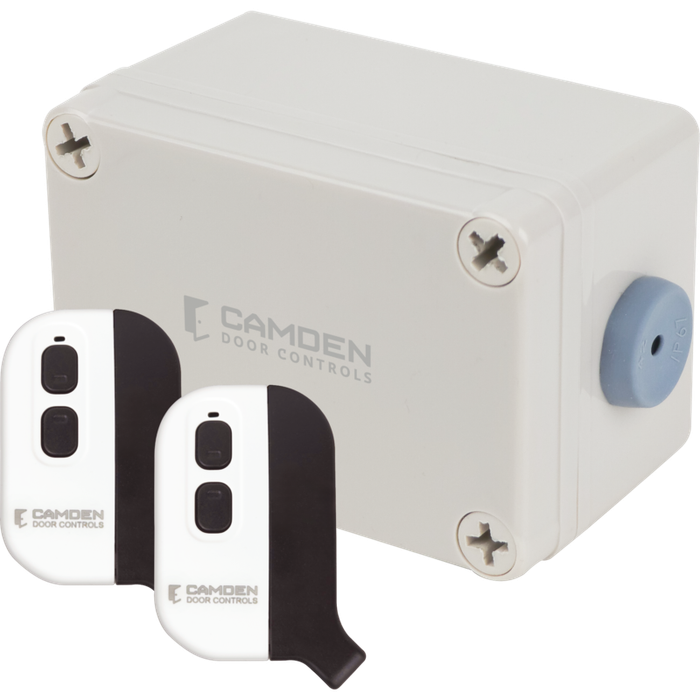

Camden CM-SRFM2 Secure Wireless Kit, 1 CM-SRX2 Receiver, 2 CV-WTX2 Transmitters, Mounting Hardware, IP65 Outdoor Rated
The CM-SRFM2 is a wireless transmitter kit that includes two, 2 button transmitters and one 2 channel receiver. This kit will control up to two doors from one device. Ideal for front desk/reception applications or hard-to-wire locations. Designed to work with magnetic locks, electric strikes, keypads, gate operators and door operators. Kits include channel receiver and transmitter.
FEATURES
• Receiver can be mounted inside or outside. IP65 rated• Rolling code encryption
• Field configurable latching/bi-stable mode keeps doors unlocked until button is pressed again
• Receiver can be controlled by up to 30 transmitters
• Receiver relay mode is either momentary or bi-stable for 2nd relay.

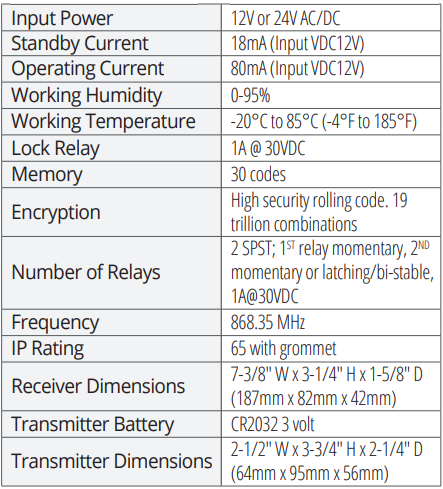

SPECIFICATIONS
Manufacturer Resources
Product Specs
- Product Subgroup:
- Access Management
- Subcategory:
- Wireless
- Product Group:
- Access Control
- Product Type:
- Receivers and Transmitters
- Series:
- CM-SR Series
- Warranty:
- 3 Year Warranty
- Product Voltage:
- 12/24V, AC/DC
- Product Category:
- Access Control
- Department:
- Door Hardware
Camden Door Controls CM-SRFM2 – Frequently Asked Questions
1) What comes in the Camden CM-SRFM2 wireless kit?
The CM-SRFM2 kit ships with one CM-SRX2 two-channel receiver, two CV-WTX2 two-button transmitters, and mounting hardware. That combination controls up to two doors from a single fob, so one transmitter can release a main entry and a vestibule or gate without a second device on the keyring.
2) Can the Camden CM-SRFM2 receiver be mounted outside on a gate post or exterior wall?
Yes. The CM-SRX2 receiver is IP65 rated and can be mounted indoors or outdoors, which is why this kit gets used on gate operators and exterior hard-to-wire openings.
3) Will the CM-SRFM2 wireless kit work with a magnetic lock or electric strike?
It is built for exactly that. The Camden CM-SRFM2 is designed to work with magnetic locks, electric strikes, keypads, gate operators and door operators, and the receiver runs on 12/24V AC/DC so it ties into the same low-voltage power those devices use.
4) Can I hold a door unlocked with the Camden CM-SRFM2, or is it momentary only?
Both. The receiver is field configurable for latching/bi-stable mode, which keeps the door unlocked until the button is pressed again, and the second relay can be set to either momentary or bi-stable. For a reception desk that wants the lobby door free during business hours and momentary release after, that's the setting you'd use.
5) How many extra transmitters can I add to a Camden CM-SRX2 receiver?
Up to 30 transmitters can be learned to one receiver. For a property with several staff members carrying fobs, the two CV-WTX2 transmitters in the kit are a starting point, not a ceiling.
6) Is the Camden wireless transmitter secure enough for a commercial entrance?
The CM-SRFM2 uses rolling code encryption, so the transmitter code changes each press rather than sending a fixed code that can be captured and replayed. That is the difference between this and a basic fixed-code gate remote.
7) I only need to control one door wirelessly. Is the two-door kit overkill?
The CM-SRFM2 is a two-channel kit: one receiver, two channels, two-button transmitters. If you only ever release one opening you can simply use one channel, but the value here is a single fob covering two doors, such as a perimeter gate plus an entry door. Camden's CM-SR Series includes single-channel kit configurations if you want to match the hardware to a one-door job.
