Camden Camden SureWave CM-332 Series 2 Relay /41 Hand Icon/'Wave to Open' Text Faceplate Touchless Switch CM-332-41

Camden SureWave CM-332 Series 2 Relay /41 Hand Icon/'Wave to Open' Text Faceplate Touchless Switch

(No reviews yet) Write a Review

Model: CM-332/41S
From the CM-332 Series Collection
$304.00
$263.65
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$304.00
$263.65
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SUREWAVE CM-332 SERIES HAND ICON/'WAVE TO OPEN' TEXT FACEPLATE TOUCHLESS SWITCH

CM-332 touchless switches provide ‘state of the art’ door activation and control while eliminating the spread of germs.

These line powered touchless switches offer an adjustable operating range, selectable motion sensing and relay operating modes, hold open timer(s), REX and door position inputs, and the option for a light ring and wireless transmitter.

SPECIFICATIONS

  • Finish options
    • Black -CM-332/40N
    • Stainless Steel - CM-332/40S, CM-332/40SN, CM-332/40SW, CM-332/40SW-SGLR
  • Light Ring
    • Plug-in light ring for single gang, double gang, and 6" round stainless steel faceplates
    • Red/Green /Blue controlled by switch or remotely
  • Mounting Plate Size Options
    • Single Gang - CM-332/40S
    • /N - Narrow - CM-332/40N, CM-332/40SN
    • /W - Double Gang - CM-332/40SW, CM-332/40SW-SGLR

Product Specs

Series:
CM-332
Contact Rating:
3 Amps @ 30 V
Relay Action:
Multi Function
Relay Operating Modes:
Event, Toggle
Inputs:
REX, DPS
Warranty:
3 Year Limited
Wireless Communication:
Yes
Subcategory:
Hands Free Switches
Sensor:
Active Infrared Air
Number of Relays:
2
Application:
Indoor
Commercial/Residential:
Commercial
Product Type:
Hands Free Switches
Power:
40 mA
Fail-safe / Fail-secure:
Field Selectable
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Voltage:
12VAC/DC/24VDC/24VAC
Product Length:
5.25"
Product Height:
2"
Product Category:
Electronic Access Control
Product Weight:
0.4
Product Width:
5.5"
Collection:
CM-332 Series
Department:
Door Hardware

Camden Door Controls CM-332/41S – Frequently Asked Questions

1) Will the Camden SureWave CM-332 touchless switch run on my existing 24VDC access control power supply?
The CM-332 touchless switch is line powered and accepts 12VAC/DC, 24VDC, or 24VAC, so a standard 24VDC access control supply runs it directly. Current draw is 40 mA, which is negligible against a typical door supply budget, so you can power it off the same supply feeding the operator or the lock without adding a separate transformer.
2) Can one Camden CM-332 wave switch trigger both the door operator and release the maglock at the same time?
Yes, and that is the reason to buy the 2-relay version. The CM-332 with two relays lets you drive the automatic operator on one relay and break the lock power on the other, from one wave. Each relay is rated 3 Amps at 30 V, and relay action is multi-function with Event and Toggle operating modes, so one output can pulse the operator while the other holds for the unlock duration.
3) What size electrical box does the Camden CM-332 wave to open switch mount to?
Faceplate choice decides that. The CM-332 is offered in single gang, narrow, double gang, and 6 inch round plates, so you match the plate to the box already in the wall or the jamb space you have. Narrow is the one to order when you are mounting on a hollow metal frame or a mullion where a single gang plate will not sit flat. Double gang is the option when you are replacing an existing two-gang plate or need the extra face area.
4) Can the Camden CM-332 be used outdoors on an exterior entrance?
No. The CM-332 SureWave switch is rated for indoor application only, so it should not be mounted on an exposed exterior wall or an unprotected vestibule face. For an outside actuator on a building entrance you need a weather rated exterior switch instead. Inside a lobby, corridor, or restroom entry, the CM-332 is in its element.
5) Will the Camden CM-332 wave switch fail unlocked or locked when the power drops?
That is field selectable on the CM-332, so you set it at install rather than ordering a different part. Wire it fail-safe on an egress path where the door has to release when power is lost, or fail-secure where the opening must stay locked. Verify the setting against your fire and life safety requirements for that opening before you close the plate.

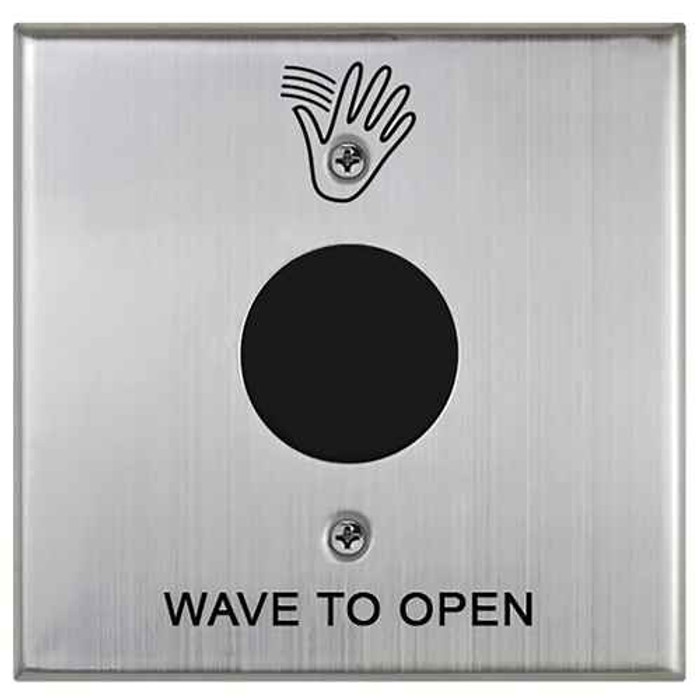

6) Does the Camden CM-332 hand icon switch say 'Wave to Open' on the plate, or do I have to add a sign?
The /41 faceplate is printed with a hand icon and the words 'Wave to Open', so nothing has to be added to tell users what to do. That matters on public entries and restrooms where a blank plate leaves people pushing on it. If you want an unmarked plate for a discreet install or a non-door application, that is a different faceplate variant within the CM-332 series.
7) What is a tri-color light ring on a Camden wave switch actually for, and do I need it?
The plug-in light ring gives visual feedback in red, green, or blue, controlled by the switch itself or remotely from the access control system. Order it where users need to see door state, a lobby entry showing locked versus unlocked, or a restroom door showing occupied. It is available for the single gang, double gang, and 6 inch round stainless faceplates. Skip it on a plain operator activation where the door opening is feedback enough. Every faceplate size on the CM-332 is orderable with or without the ring, so it is a decision you make at the order form, not a separate part number later.
8) Can I wire a request to exit device and a door position switch into the Camden CM-332?
The CM-332 takes both REX and DPS inputs directly, so an exit device REX or a motion sensor and a door contact land on the switch instead of needing separate interface logic. Combined with the hold open timers, that lets the switch hold the operator open and re-lock on door close rather than purely on a timer, which is what keeps a heavily used opening from cycling against itself.
9) How close do you have to get to a Camden SureWave CM-332 for it to activate?
The operating range is adjustable, so you set it during commissioning rather than living with a fixed distance. The sensor is active infrared, and motion sensing is selectable. Tighten the range on a switch mounted in a corridor where passing traffic would false trigger the door, or open it up where users are approaching with a cart or a wheelchair and cannot get a hand right onto the plate.
10) Is there a wireless version of the Camden CM-332 so I don't have to run wire across a lobby?
The CM-332 supports a wireless transmitter option, which is how you get an actuator onto a wall or column with no path back to the door controller. Note the switch itself is still line powered at 12VAC/DC, 24VDC, or 24VAC, so you need power at the switch location even when the signal back to the door is wireless.
11) What is the difference between Event mode and Toggle mode on a Camden touchless switch?
Event mode gives a momentary output on each wave, which is what you want driving an automatic operator or pulsing a strike. Toggle mode latches the relay on one wave and releases it on the next, which is how you hold a door unlocked or run a light or a hold open function without a timer running out. Both modes are on the CM-332, selectable in the field, and with two relays you can run one output in each mode from the same switch.
12) Can I standardize on the Camden CM-332 across a building where some doors have black trim and some stainless?
Yes. Black and stainless steel are both offered across the faceplate sizes, so a facility can run one switch model and match the finish opening by opening. Stainless is available in single gang, narrow, double gang, and 6 inch round; black is available in single gang, narrow, double gang, and 6 inch round as well. One part family, one set of spare boards, two finishes on the wall.
13) What are the dimensions of the Camden CM-332 touchless switch?
The CM-332 measures 5.5 x 5.25 x 2 inches and weighs 0.4 pounds as supplied. The 2 inch figure is the one to check against your box depth and any conduit or wiring already in the back box, since a shallow box behind a decorative plate is the usual place these installs stall.
