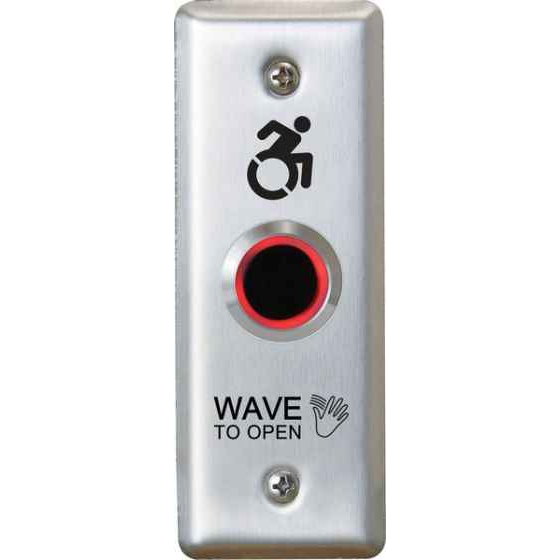

Camden ValueWave CM-221 Series/42 Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate Touchless Switch

Camden ValueWave CM-221 Series/42 Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate Touchless Switch

(No reviews yet) Write a Review

Model: CM-221/42
From the CM-221 Series Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$121.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

VALUEWAVE CM-221 SERIES/42 HAND ICON/'WAVE TO OPEN' TEXT/WHEELCHAIR SYMBOL FACEPLATE TOUCHLESS ACTUATOR

Camden ValueWave(tm) 12/24 VDC touchless switches with 1 relay are IP 65 rated for indoor or outdoor use, and are ideal for use in automatic door or access control systems. These no-touch switches are designed for easy installation and trouble-free service in high traffic applications, and are available in a range of models, with narrow, single and double gang stainless steel faceplates and a selection of faceplate graphics.

Camden ValueWave(tm) touchless switches are IP 65 rated for indoor/outdoor use, ideal for use in automatic door/access control systems.

These no-touch switches are designed for easy installation and trouble-free service in high traffic applications. They are available in single, narrow and double gang stainless steel faceplates and a selection of faceplate graphics.

SPECIFICATIONS

  • Mounting Plate Size Options
    • Single Gang - CM-221/42, CM-221/42-P3
    • /W - Double Gang - CM-221/42W, CM-221/42W-P3
    • /N - Narrow - CM-221/42N, CM-221/42N-P3
  • Power Supply Options
    • With CP-PS13v3 Power Supply - CM-221/42-P3, CM-221/42N-P3, CM-221/42W-P3
    • Withuot Power Supply - CM-221/42, CM-221/42N, CM-221/42W

Product Specs

Collection:
CM-221 Series
Series:
CM-221
Contact Rating:
1 Amps @ 30 VDC
Application:
Hand Icon and 'Wave to Exit' Text
Relay Action:
Multi Function
Warranty:
3 Year Limited
Subcategory:
Hands Free Switches
Sensor:
Active Infrared Air
Temperature Range:
14 Degrees F to 122 Degrees F (-10 Degrees C to +50 Degrees C)
Commercial/Residential:
Commercial
Product Type:
Hands Free Switches
Power:
45 mA (PEAK)
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Voltage:
12/24VDC
Product Finish:
Satin Stainless Steel
Product Length:
1.75"
Product Height:
4.5"
Product Category:
Electronic Access Control
Product Weight:
0.35
Product Width:
1-3/4"
Department:
Door Hardware

Camden Door Controls CM-221/42 – Frequently Asked Questions

1) Can the Camden CM-221 touchless switch be mounted outdoors on an exterior door?
Yes. The ValueWave CM-221 touchless actuator is IP 65 rated for indoor or outdoor use, and it operates from 14 F to 122 F (-10 C to +50 C). That temperature band is the limit to watch in cold climates: an unheated vestibule in a northern winter can drop below -10 C, so mount it where it stays inside that range.
2) Which faceplate size of the Camden CM-221/42 switch do I need for my box?
Three plate sizes are offered: single gang (CM-221/42), double gang (CM-221/42W) and narrow (CM-221/42N). Pick the one that matches the box or mullion you are mounting to. Narrow is the one to use on a hollow metal jamb or a narrow stile where a single gang plate will not sit flat. All plates are satin stainless steel.
3) Is the CM-221/42 faceplate the right one for an ADA barrier-free entrance?
The /42 graphic carries a hand icon, 'Wave to Open' text and the wheelchair symbol, which is the plate specified for barrier-free power door entrances where users need both the instruction and the accessibility marking. If you want a plate without the wheelchair symbol, you need a different graphic suffix in the CM-221 series.
4) How does a wave-to-open switch differ from a push plate actuator?
The CM-221 uses an active infrared air sensor, so the user passes a hand in front of the plate and nothing is touched. A mechanical push plate needs contact and has moving parts that wear in high traffic. Touchless is what gets specified in healthcare, food service and washrooms where hygiene drives the decision; a push plate is still the simpler choice where there is no power at the jamb.
5) Can I set a hold time on the Camden CM-221 relay output?
The relay is multi-function, so the output behaviour is selectable rather than fixed at a single momentary pulse. Set it on the board to suit whether you are pulsing a door operator input or holding an access control contact.
6) What are the dimensions of the Camden CM-221/42 switch?
The stated figures are 4.5 inch height, 1-3/4 inch width and 1.75 inch length, with a unit weight of 0.35. Those are the single gang plate proportions; the narrow and double gang versions change the plate footprint.
7) Is the Camden ValueWave CM-221 suitable for a commercial building or is it a residential product?
It is a commercial-grade device, built for high traffic openings with a stainless steel faceplate. Property managers standardizing across a portfolio can use the same /42 graphic on every barrier-free opening and just vary the plate size to suit each box.
