Camden ValueWave CM-221 Series...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$127.31
Camden Camden ValueWave CM-221 Series/46 Hand Icon/'Wave to Exit' Text Faceplate Touchless Switch CM-221-46

Camden ValueWave CM-221 Series/46 Hand Icon/'Wave to Exit' Text Faceplate Touchless Switch

(No reviews yet) Write a Review

Model: CM-CM-221/46-NO-SI
From the CM-221 Series Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$127.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

VALUEWAVE CM-221 SERIES/42 HAND ICON/'WAVE TO EXIT' TEXT FACEPLATE TOUCHLESS ACTUATOR

Camden ValueWave(tm) 12/24 VDC touchless switches with 1 relay are IP 65 rated for indoor or outdoor use, and are ideal for use in automatic door or access control systems. These no-touch switches are designed for easy installation and trouble-free service in high traffic applications, and are available in a range of models, with narrow, single and double gang stainless steel faceplates and a selection of faceplate graphics.

Camden ValueWave(tm) touchless switches are IP 65 rated for indoor/outdoor use, ideal for use in automatic door/access control systems.

These no-touch switches are designed for easy installation and trouble-free service in high traffic applications. They are available in single, narrow and double gang stainless steel faceplates and a selection of faceplate graphics.

SPECIFICATIONS

  • Mounting Plate Size Options
    • Single Gang - CM-221/46, CM-221/46-P3
    • /W - Double Gang - CM-221/46W, CM-221/46W-P3
    • /N - Narrow - CM-221/46N, CM-221/46N-P3
  • Power Supply Options
    • With CP-PS13v3 Power Supply - CM-221/46-P3, CM-221/46N-P3, CM-221/46W-P3
    • Without Power Supply - CM-221/46, CM-221/46N, CM-221/46W

Product Specs

Series:
CM-221
Collection:
CM-221 Series
Contact Rating:
1 Amps @ 30 VDC
Application:
Hand Icon and 'Wave to Exit' Text
Relay Action:
Multi Function
Warranty:
3 Year Limited
Subcategory:
Hands Free Switches
Sensor:
Active Infrared Air
Temperature Range:
14 Degrees F to 122 Degrees F (-10 Degrees C to +50 Degrees C)
Commercial/Residential:
Commercial
Product Type:
Hands Free Switches
Power:
45 mA (PEAK)
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Voltage:
12/24VDC
Product Finish:
Satin Stainless Steel
Product Length:
1.75"
Product Height:
4.5"
Product Category:
Electronic Access Control
Product Weight:
0.35
Product Width:
1-3/4"
Department:
Door Hardware

Camden Door Controls CM-CM-221/46-NO-SI – Frequently Asked Questions

1) Will the Camden ValueWave CM-221 touchless switch fit a standard single gang electrical box?
Yes, and it comes in three faceplate sizes so you can match whatever box or mullion you are working with: single gang, double gang, and narrow. The narrow plate is the one for a hollow metal frame or a narrow mullion where a single gang plate will not sit flat. Faceplates are satin stainless steel. The single gang plate measures 4.5 x 1.75 x 1-3/4 inches per the published height, length and width.
2) Can a touchless wave switch drive an automatic door operator or a maglock directly?
Not directly. The CM-221 is a dry contact switch with one relay rated 1 amp at 30 VDC, which is a signal level contact. It is wired as the actuating input to an automatic door operator or into an access control panel or door release circuit, and the operator or panel does the switching of the door motor or lock current. If you need to break maglock current, put a relay or the panel's relay output between them.
3) Is there a touchless exit switch I can mount outdoors or in an unheated garage or loading dock?
The ValueWave CM-221 is IP 65 rated for indoor or outdoor use and operates from 14 degrees F to 122 degrees F (-10 C to +50 C). That covers an exterior entry, a parking structure or an unheated dock in most of the country, but a walk-in cooler or a site that sees below 14 F will run outside the stated range.

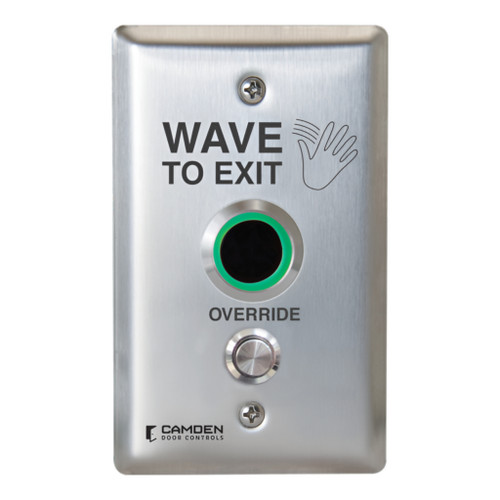

4) What is the difference between the CM-221 wave switch models with and without the override option?
Every faceplate size in the CM-221/46 group, narrow, single gang and double gang, is offered with or without the override. Both carry the same hand icon and 'Wave to Exit' text graphic, the same active infrared sensing and the same multi function relay. Pick the override version when the opening needs a manual means of releasing or disabling the switch at the plate rather than back at the panel.
5) Does a wave to exit switch hold the door open long enough, or do I need a separate timer?
No separate timer module is needed for the switch side. The CM-221 relay is multi function, so the output behavior is set at the switch rather than being a fixed momentary pulse only. Door open time on a swing operator is still set at the operator itself.
6) How does an infrared wave switch compare to a push plate for a high traffic entrance?
A push plate is mechanical and gets pressed thousands of times, so the wear and the hygiene complaint both land on the plate. The CM-221 senses with active infrared, nothing is touched, and the stainless plate is only a cover. For a hospital, clinic, school or food service entry that is the reason to go touchless. Where a user is expected to make firm deliberate contact, or where gloved hands and carts brush past and would false trigger, a push plate is still the simpler choice.
7) Will the Camden CM-221 faceplate match other stainless door hardware and plates in my building?
The faceplate is satin stainless steel, which is the standard commercial finish that reads as a match alongside 630 satin stainless trim, push plates and frames. For a fleet of openings you can mix faceplate sizes across doors, narrow at mullions and single or double gang at wall boxes, and keep the same graphic and finish throughout.
8) Is the Camden CM-221 rated for commercial use and how much does the switch weigh for mounting?
It is a commercial specified device, and at 0.35 pounds the switch and plate assembly puts no meaningful load on a standard box or mullion, so no backing or reinforcement is needed beyond the box itself.
