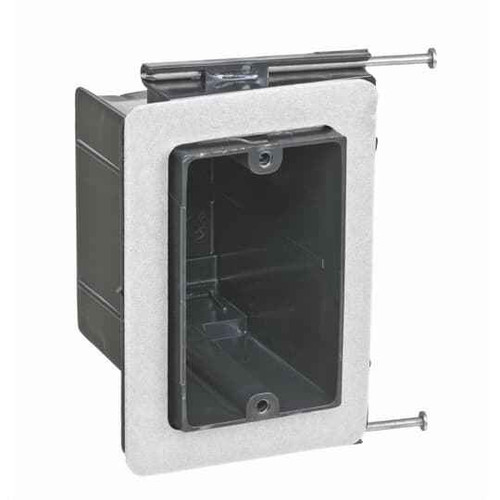

Carlon 22.5 in³ Phenolic Non-Metallic Fire-Rated Electrical Outlet Box - Brown

Carlon 22.5 in³ Phenolic Non-Metallic Fire-Rated Electrical Outlet Box - Brown

Professional Fire-Rated Electrical Installation Solution

The Carlon 22.5 in³ Phenolic Non-Metallic Fire-Rated Electrical Outlet Box delivers reliable electrical installation performance with specialized fire-rated construction. This brown phenolic outlet box provides 22.5 cubic inches of volume capacity and can be installed in the same stud cavity of a shared two-hour wall, making it ideal for professional electrical applications requiring fire-rated compliance and durable non-metallic construction.

Professional Features & Benefits

• 22.5 in³ Volume Capacity: Provides ample space for multiple conductors and connections in professional electrical installations.
• Fire-Rated Construction: Engineered for installation in shared two-hour wall cavities, ensuring compliance with fire safety requirements.
• Phenolic Material: Offers superior durability and electrical insulation properties compared to standard plastic materials.
• Non-Metallic Design: Eliminates corrosion concerns while providing reliable electrical isolation and installation flexibility.
• UL E11461 Listed: Meets rigorous safety and performance standards for professional electrical applications.
• Brown Finish: Professional appearance that blends with various installation environments and wall materials.

Technical Specifications

• Application: Can be installed in the same stud cavity of a shared two-hour wall.
• Brand Label: Carlon / Nutek
• Country Of Origin: United States (US)
• Department: Electrical
• Effective Date: 19941115
• Idea Granular Category Code Igcc : 4433 >> Outlet box
• Product Color: Brown
• Product Material: Phenolic
• Product Name: PLASTIC ELECTRICAL BOX
• Product Type: Outlet Boxes
• Standards: UL E11461
• Volume: 22.5 in³

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Fire-Rated Wall Assemblies
• Commercial Building Electrical Systems
• Multi-Unit Residential Properties
• Professional Office Buildings
• Institutional Facilities
• Healthcare and Educational Buildings
• Two-Hour Fire-Rated Construction Projects

Why Choose Carlon Quality?

Carlon delivers trusted electrical solutions with UL E11461 listing and phenolic material construction that ensures long-term reliability. Made in the United States, this fire-rated outlet box provides the professional performance and safety compliance required for demanding electrical installations in shared wall cavities and fire-rated assemblies.
