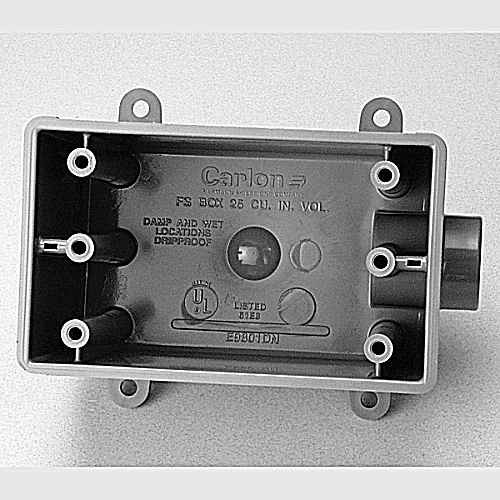

Carlon Single Gang FD Deep Device Box - FD Type

Carlon Single Gang FD Deep Electrical Junction Box - 25 Cubic Inches Grey Rigid Non-Metallic

(No reviews yet) Write a Review

Model: E9801

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Carlon Single Gang FD Deep Electrical Junction Box

Professional quality for versatile electrical applications

The Carlon Single Gang FD Deep Electrical Junction Box delivers reliable performance with 25 cubic inches of capacity in a durable grey rigid non-metallic construction. This rectangular junction box features wall/ceiling mounting capability and accommodates standard covers and accessories for professional electrical installations.

Professional Features & Benefits

  • 25 Cubic Inches Capacity: Provides ample space for wire connections and electrical components in single gang applications.
  • Rigid Non-Metallic Construction: Offers durability and corrosion resistance for long-lasting performance in various environments.
  • FD Deep Design: Accommodates deeper electrical devices and provides additional working space for complex connections.
  • Standard Compatibility: All sizes take standard covers and accessories or devices for versatile installation options.
  • Wall/Ceiling Mounting: Flexible mounting options support diverse installation requirements and configurations.
  • UL Listed: UL E11461 certification ensures compliance with safety standards for professional electrical work.
  • Rectangular Shape: Optimized design maximizes internal volume while maintaining compact external dimensions.

Technical Specifications

  • Application: For terminations where hub requirements vary according to application, hubs easily made with flared
  • Brand Label: Carlon
  • Brand Name: Carlon
  • Country Of Origin: Canada (CA)
  • Cover Type: None
  • Cubic Capacity: 25 Cubic Inches
  • Department: Electrical
  • Depth: 69.85mm
  • Effective Date: 20080116
  • Equipped With: None
  • Etim: EC002600 Box/housing for surface mounting on the wall/ceiling
  • Idea Granular Category Code Igcc : 4486 >> Electrical junction box
  • Igcc: 4486 Electrical junction box
  • Inlet From The Rear: N
  • Mounting Method: Wall-/ceiling mounting
  • Outer Dimensions Inches : 11.6x7.8x11.5
  • Outer Quantity: 10
  • Product Color: Grey
  • Product Length: 117.475mm
  • Product Name: PLASTIC ELEC BOX W/O CONDUCTOR
  • Product Shape: Rectangular
  • Product Type: Rigid Non-Metallic FS & FD Boxes & Covers
  • Product Width: 73.025mm
  • Special Features: All sizes take standard covers and accessories or devices.
  • Special Functions: All sizes take standard covers and accessories or devices.
  • Standard: UL E11461
  • Standards: UL E11461
  • Unspsc: 39121332 Electrical junction box
  • Volume: 25 in³
  • Weight Uom: 38.5 lbs. per 100

Professional Applications

  • Residential electrical installations and renovations
  • Commercial building electrical systems
  • Industrial facility wiring projects
  • Electrical contractor and maintenance work
  • New construction electrical rough-in
  • Electrical system upgrades and modifications

Why Choose Carlon Quality?

Carlon electrical junction boxes deliver proven reliability with UL E11461 listing and rigid non-metallic construction designed for professional electrical applications. The grey finish and rectangular design provide both durability and professional appearance for long-term electrical system performance.

Manufacturer Resources

Spec Sheet

Product Specs

Brand Label:
Carlon
Brand Name:
Carlon
Cubic Capacity:
25 Cubic Inches
Department:
Electrical
Effective Date:
20080116
Etim:
EC002600 Box/housing for surface mounting on the wall/ceiling
Idea Granular Category Code Igcc:
4486 >> Electrical junction box
Igcc:
4486 Electrical junction box
Inlet From The Rear:
N
Mounting Method:
Wall-/ceiling mounting
Outer Dimensions Inches:
11.6x7.8x11.5
Outer Quantity:
10
Product Color:
Grey
Product Length:
117.475mm
Product Name:
PLASTIC ELEC BOX W/O CONDUCTOR
Product Shape:
Rectangular
Product Type:
FS/FD Box
Product Width:
73.025mm
Standards:
UL E11461
Unspsc:
39121332 Electrical junction box
Volume:
25 in³
Weight Uom:
38.5 lbs. per 100
Product Group:
Boxes & Enclosures
Product Depth:
69.85mm
Product Subgroup:
Electrical Boxes
Product Material:
Plastic

Carlon E9801 – Frequently Asked Questions

1) How many cubic inches is the Carlon E9801 FD box, and how many conductors can I fill it with?
The E9801 FD deep box gives you 25 cubic inches of usable volume. That is the number you plug into your box fill calculation, so size the conductor count off 25 in3 rather than guessing from the outside dimensions. It ships with no cover and no device, so fill math only has to account for what you bring to it.
2) Does the Carlon E9801 FD box come with a cover, or do I have to order one separately?
No cover is included, and no device either. Plan on ordering a cover with the box: a blank, a single gang device cover, a switch cover, or a duplex receptacle cover depending on what you are landing in it. It takes standard FD single gang covers and accessories, so you are not locked into a proprietary lid.
3) Can I mount the Carlon FD box on a ceiling, or is it wall only?
Wall or ceiling, both. It is built as a surface mount box for wall and ceiling installation, so it goes on the finished surface rather than getting buried in a stud bay. Rear entry is not provided on this box, so all your conduit has to come in through the sides or ends, which matters if you were planning to feed it from behind a wall.
4) Does the Carlon E9801 have threaded hubs already in it, or do I make my own conduit entries?
Hubs are not pre-set. The box is built for terminations where hub requirements vary by application, and the entries are made on the job with flared connections. That is the point of the design: you decide where and how the conduit lands instead of working around a fixed hub pattern. If your job needs a factory hub in a fixed position and size, this is not the box for it.
5) Can I use the Carlon E9801 FD box as a recessed old work box in drywall?
No. This is a surface mount box for wall and ceiling installation, not a recessed or old work box, and there is no rear entry to bring cable in from inside the wall. For a flush device in finished drywall you want an old work or new work nail-on box instead. Where the E9801 belongs is on the face of the wall on an exposed conduit run.
6) Is a non-metallic FD box a better choice than a cast aluminum one for a damp or corrosive area?
Rigid non-metallic is the reason to reach for this one. A PVC body will not corrode the way a metallic box does in a wash-down bay, a pool room, a parking structure, or a coastal exterior wall, and it does not need bonding to the box itself the way a metal enclosure does. Cast metal is still the answer where you need physical impact resistance in an industrial aisle or a loading dock. The trade-off is corrosion resistance versus mechanical toughness, and this box sits on the corrosion side.
7) What is the Carlon part number for the single gang FD deep non-metallic box?
E9801 is the Carlon part number for the single gang FD deep box, 25 cubic inches, grey rigid non-metallic. That is the number to quote to a distributor or drop on a submittal. Country of origin is Canada.
8) What color is the Carlon E9801 box, and will it match the rest of my surface conduit run?
Grey, the standard PVC grey used across surface raceway and non-metallic conduit fittings, so it reads consistently alongside a grey PVC conduit run in a garage, mechanical room, or back-of-house corridor. For a property manager standardizing across a building, the whole rigid non-metallic FS and FD line is the same grey, so replacements years out will still match.
