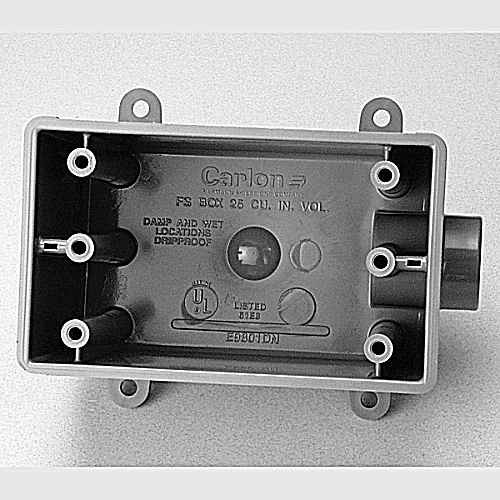

Carlon Single Gang Deep Device Box - 25 Cubic Inch Capacity FDC Type

Carlon Single Gang Deep Device Box - 25 Cubic Inch Capacity FDC Type

Professional electrical box solution for high-capacity wiring applications

The Carlon Single Gang Deep Device Box delivers reliable performance for through terminations where large devices or additional wiring capacity is required. This FDC type electrical junction box features 25 cubic inches of capacity in a durable gray plastic construction, providing professional-grade installation flexibility for demanding electrical applications.

Professional Features & Benefits

• 25 Cubic Inch Capacity: Provides ample space for large devices and additional wiring connections, reducing installation complexity.
• Deep Device Design: 75.9mm depth accommodates through terminations and high-capacity wiring requirements with professional clearance.
• Rigid Non-Metallic Construction: Durable plastic material resists corrosion and provides long-lasting performance in various environments.
• Standard Compatibility: All sizes take standard covers and accessories or devices, ensuring versatile installation options.
• UL Listed: UL E11461 certification ensures compliance with electrical safety standards for professional installations.
• Single Gang Configuration: Rectangular shape with 115.3mm x 71.1mm dimensions fits standard single gang applications.

Technical Specifications

• Application: For through terminations where large devices or additional wiring capacity is required.
• Brand Label: Carlon
• Brand Name: Carlon
• Country Of Origin: Canada (CA)
• Cover Type: None
• Cubic Capacity: 25 Cubic Inches
• Department: Electrical
• Depth: 75.9mm
• Effective Date: 20080116
• Equipped With: None
• Etim: EC002600 Box/housing for surface mounting on the wall/ceiling
• Idea Granular Category Code Igcc : 4486 >> Electrical junction box
• Igcc: 4486 Electrical junction box
• Inlet From The Rear: N
• Number Of Inlets: 1
• Number Of Knockouts: 0
• Outer Quantity: 10
• Product Color: Gray
• Product Length: 115.3mm
• Product Name: PLASTIC ELEC BOX W/O CONDUCTOR
• Product Shape: Rectangular
• Product Type: Rigid Non-Metallic FS & FD Boxes & Covers
• Product Width: 71.1mm
• Special Features: All sizes take standard covers and accessories or devices.
• Special Functions: All sizes take standard covers and accessories or devices.
• Standard: UL E11461
• Standards: UL E11461
• Unspsc: 39121332 Electrical junction box
• Volume: 25 in³

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical installations requiring high-capacity wiring
• Commercial building electrical systems
• Industrial facility electrical distribution
• Through termination applications
• Large device installations
• Multi-conductor wiring projects

Why Choose Carlon Quality?

Carlon delivers trusted electrical solutions with UL E11461 listing ensuring safety and compliance. The rigid non-metallic construction provides durability and corrosion resistance, while standard compatibility with covers and accessories ensures reliable long-term performance in professional electrical installations.
