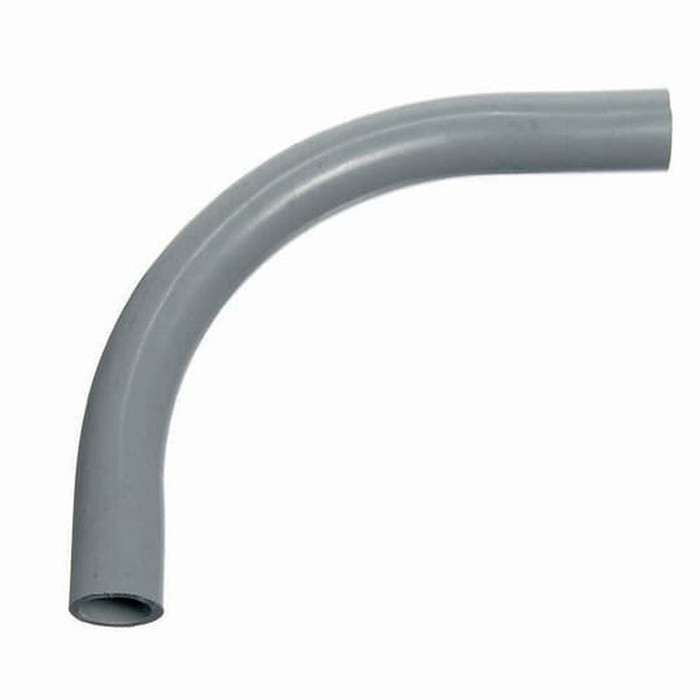

Carlon UB9AG-CAR Schedule 80 PVC 90° Elbow, Gray 1-1/4"

Carlon UB9AG-CAR Schedule 80 PVC 90° Elbow, Gray 1-1/4"

(No reviews yet) Write a Review

Model: UB9AG-CAR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Carlon UB9AG-CAR Schedule 80 PVC 90° Elbow, Gray 1-1/4"

The Carlon UB9AG-CAR is a Schedule 80 PVC 90° standard radius elbow engineered for rigid conduit systems that demand a heavier wall thickness than standard Schedule 40 fittings. Molded in gray PVC and sized for 1-1/4" trade size conduit, this elbow provides a smooth, code-compliant 90-degree bend for routing conduit runs around obstacles while protecting conductors from damage. Schedule 80 construction gives installers added wall thickness and mechanical strength, making this elbow a solid choice for applications where extra durability is required beyond typical Schedule 40 duty. As a solvent-weld PVC fitting, it is designed to integrate seamlessly with Carlon® PVC conduit and companion Schedule 80 fittings for a complete, corrosion-resistant raceway system.

Key Features

  • Trade Size: 1-1/4" sizing matches standard 1-1/4" PVC conduit runs for straightforward integration into existing raceway systems.
  • Durable Construction: Schedule 80 PVC delivers a thicker wall than Schedule 40, offering enhanced mechanical strength and impact resistance for demanding installations.
  • 90° Standard Radius Bend: Provides a smooth directional change in the conduit run, reducing stress on conductors during pulls and minimizing installation labor versus field-bending rigid conduit.
  • Corrosion-Resistant Material: PVC construction resists rust, corrosion, and chemical degradation that can affect metallic conduit fittings over time.
  • Finish: Gray color matches standard PVC conduit and fitting color conventions for a clean, consistent installation appearance.
  • Solvent-Weld Connection: Designed for solvent cement joining with Schedule 80 PVC conduit for a permanent, sealed connection.

Technical Specifications

  • Brand: Carlon®
  • Trade Size: 1-1/4"
  • Material: Schedule 80 PVC
  • Color: Gray
  • Angle: 90°
  • Configuration: Standard Radius Elbow

Typical Applications

  • Rigid PVC Conduit Systems
  • Commercial and Industrial Electrical Raceways
  • Underground and Above-Ground Conduit Runs
  • Directional Changes in Conduit Routing
  • New Construction and Conduit System Repairs

Why Carlon?

Carlon® is a recognized name in PVC conduit and fittings, and the UB9AG-CAR Schedule 80 elbow reflects that legacy with heavier-wall PVC construction built for reliable, corrosion-resistant performance. Choosing Schedule 80 gray PVC fittings from Carlon helps ensure consistent fit and finish across your conduit system for code-compliant, professional electrical installations.

[{"name": "Product Type", "value": "Elbow"}, {"name": "Product Material", "value": "PVC"}, {"name": "Product Color", "value": "Gray"}, {"name": "Trade Size", "value": "1-1/4\""}, {"name": "Angle", "value": "90°"}, {"name": "Configuration", "value": "Standard Radius Elbow"}]

Manufacturer Resources

Product Specs

list_batch:
CRL-20260924
Department:
Electrical
Product Subgroup:
PVC Conduit & Fittings
Product Size:
1-1/4"
Product Type:
PVC Elbow
Product Group:
Conduit & Raceway
Country Of Origin:
United States
Product Material:
PVC
Product Color:
Gray

Carlon UB9AG-CAR – Frequently Asked Questions

1) Will the Carlon UB9AG-CAR elbow glue to Schedule 40 PVC conduit, or does it only work with Schedule 80?
The UB9AG-CAR is a solvent-weld Schedule 80 fitting made for 1-1/4 inch trade size conduit. Because PVC conduit trade sizes share the same outside diameter, a 1-1/4 inch Schedule 40 conduit end will seat in the socket and cement normally. The difference is wall thickness, not OD. Where the run is specified Schedule 80 for mechanical protection, use Schedule 80 conduit through the fitting so you don't create a thin-wall weak point at the bend.
2) What size conduit does the Carlon UB9AG-CAR 90 degree elbow take?
It is sized for 1-1/4 inch trade size PVC conduit on both ends, gray, with a standard radius 90 degree sweep. Order by model UB9AG-CAR.
3) Should I use a standard radius PVC elbow or field bend the conduit?
A molded standard radius elbow like the UB9AG-CAR saves the heat-box step and gives a repeatable 90 that won't kink or flatten, which matters on Schedule 80 where the wall is heavier and harder to bend cleanly. Field bending still wins when you need a sweep larger than standard radius for a long or heavy conductor pull, or an off-angle the fitting catalog doesn't cover. For a straightforward 90 around an obstruction in a 1-1/4 inch run, the molded elbow is less labor and two cemented joints.
4) Do I need anything besides the elbow to make the connection?
The elbow ships as the fitting only. You supply PVC solvent cement (and primer if your spec or local code calls for it) since both sockets are solvent-weld, not threaded or push-on. No couplings are needed if you are cementing conduit directly into the elbow hubs.
5) Is Schedule 80 PVC the right choice for a conduit run where the pipe could get hit?
That is exactly where Schedule 80 earns its keep. The heavier wall gives more mechanical strength and impact resistance than Schedule 40, which is why it gets specified for exposed runs subject to physical damage, equipment yards, and loading areas. For a protected run inside a wall or above a ceiling, Schedule 40 fittings usually satisfy the drawing and cost less labor to handle.
6) Can this gray PVC elbow be used on a direct buried run?
Yes. The UB9AG-CAR is listed for underground as well as above-ground conduit routing, and the PVC body resists rust, corrosion, and chemical attack in soil that eats at metallic fittings. Keep the joints fully cemented so the raceway stays sealed.
7) Will this elbow match the gray fittings already on my raceway?
It is molded in gray, the standard color convention for PVC conduit and fittings, so it reads consistent with existing gray Carlon conduit and companion Schedule 80 fittings on the same run. If your facility standardized on a different color system, check that before mixing.
