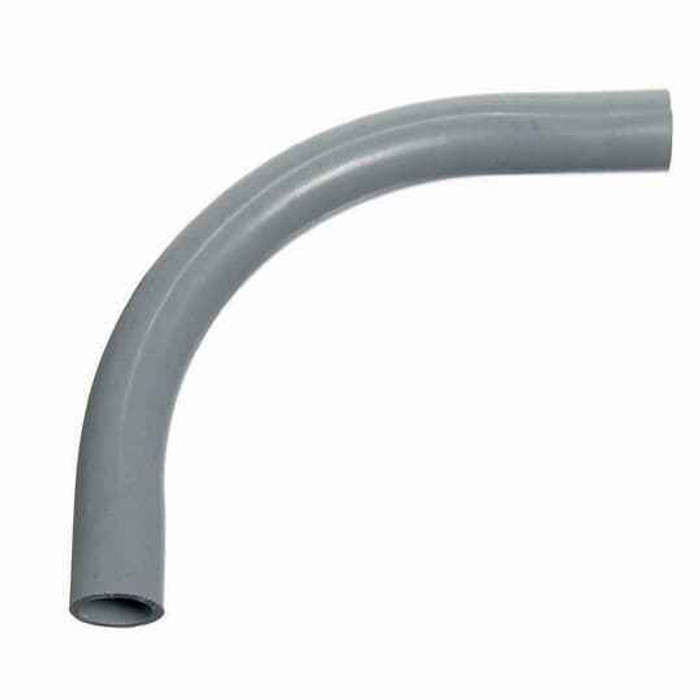

Carlon 90-Degree Standard Radius PVC Elbows Schedule 80

Carlon Schedule 80 PVC Conduit Elbow 90-Degree Standard Radius Gray

(No reviews yet) Write a Review

Model: UB9AD

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,141.43
$5.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Carlon Schedule 80 PVC Conduit Elbow 90-Degree Standard Radius Gray

Professional Grade Rigid Non-Metallic Conduit Fitting

Carlon Schedule 80 PVC Conduit Elbow delivers reliable 90-degree directional changes for rigid non-metallic conduit systems. Manufactured from durable PVC material with gray finish, this standard radius elbow provides professional-grade performance for electrical conduit installations requiring heavy-duty protection and long-term reliability.

Professional Features & Benefits

  • Schedule 80 Construction: Heavy-duty wall thickness provides superior impact resistance and durability for demanding applications
  • 90-Degree Standard Radius: Optimized bend radius facilitates smooth wire pulling while maintaining proper conduit system integrity
  • PVC Material: Corrosion-resistant construction ensures long-lasting performance in various environmental conditions
  • Gray Finish: Professional appearance integrates seamlessly with standard electrical conduit systems
  • UL Listed: UL E323335 certification ensures compliance with electrical safety standards and code requirements
  • USA Manufacturing: Domestic production provides consistent quality and reliable supply chain support

Technical Specifications

  • Brand Label: Carlon
  • Country Of Origin: United States (US)
  • Department: Electrical
  • Idea Granular Category Code Igcc : 5752 >> Pvc Schedule 80 Elbows
  • Product Color: Gray
  • Product Material: PVC
  • Product Name: FITTINGS OF PLASTIC FOR TUBES, ETC.
  • Product Type: Rigid Non-Metallic Conduit-Schedule 80 Elbows
  • Standards: UL E323335

Professional Applications

  • Commercial Electrical Installations
  • Industrial Conduit Systems
  • Residential Heavy-Duty Wiring
  • Outdoor Electrical Protection
  • Underground Conduit Runs
  • Mechanical Protection Systems
  • Code-Compliant Electrical Projects

Why Choose Carlon Quality?

Carlon delivers trusted electrical conduit solutions with UL E323335 listing and USA manufacturing quality. The durable PVC construction and professional gray finish ensure reliable performance and code compliance for demanding electrical installations requiring Schedule 80 protection standards.

Manufacturer Resources

Product Specs

Brand Label:
Carlon
Country Of Origin:
United States (US)
Department:
Electrical
Idea Granular Category Code Igcc:
5752 >> Pvc Schedule 80 Elbows
Product Color:
Grey
Product Material:
PVC
Product Type:
Schedule 80 Elbows
Standards:
UL E323335
Product Group:
PVC Conduit & Fittings
Product Subgroup:
Electrical

Carlon UB9AD – Frequently Asked Questions

1) What trade sizes does the Carlon Schedule 80 PVC 90-degree elbow come in?
Eleven trade sizes, from 1/2 inch up to 6 inch: 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 5 and 6 inch. The part numbers run UB9AD (1/2 inch), UB9AE (3/4), UB9AF (1), UB9AG (1-1/4), UB9AH (1-1/2), UB9AJ (2), UB9AK (2-1/2), UB9AL (3), UB9AN (4), UB9AP (5) and UB9AR (6). Order by trade size of the conduit, not by measured outside diameter.
2) Can I use a Schedule 80 PVC elbow with Schedule 40 conduit?
Yes. Schedule 40 and Schedule 80 rigid nonmetallic conduit share the same outside diameter and socket dimensions at any given trade size, so a Carlon Schedule 80 elbow solvent welds onto Schedule 40 conduit of the same size. The difference is wall thickness: Schedule 80 has the heavier wall and the smaller internal area, so factor the reduced fill if you are pulling a full raceway.
3) Is the Carlon Schedule 80 PVC elbow UL listed for an inspected job?
Yes, it carries UL listing E323335, which is the listing a jurisdiction will look for on rigid nonmetallic conduit fittings. That matters on permitted commercial and institutional work where every raceway component has to be a listed part.
4) Is this elbow a standard radius or a long sweep?
Standard radius. The Carlon UB9A 90-degree elbow is the standard-radius bend, which is the compact sweep used at box entries, riser turns and equipment stub-ups. If you are pulling heavy or large-diameter cable and need a gentler bend to reduce pulling tension, specify a long-radius or special-radius 90 instead rather than this one.
5) Do I need glue for a Carlon Schedule 80 PVC elbow, or does it thread on?
It is a belled socket fitting for solvent-weld assembly, not a threaded fitting. You will need PVC conduit cement rated for electrical rigid nonmetallic conduit; no cement is supplied with the elbow. Cut the conduit square, deburr, and make the joint per the cement instructions. If you need to break the run later, plan a coupling or a threaded adapter at that point.
6) Are these Carlon conduit elbows made in the USA for Buy American jobs?
Country of origin is the United States, which is the answer procurement officers on federally funded and government work usually need documented. Confirm the specific domestic-preference clause on your contract, since requirements differ between Buy American and Build America, Buy America programs.
7) Can I use this PVC elbow on an underground service riser coming up to a meter?
That is one of its intended uses. The Schedule 80 wall is what makes it suitable for the exposed portion of an underground-to-panel or meter riser, where the raceway leaves the ground and is subject to damage. Sizes go up to 6 inch, so service-size laterals are covered by UB9AN (4 inch), UB9AP (5 inch) and UB9AR (6 inch).
