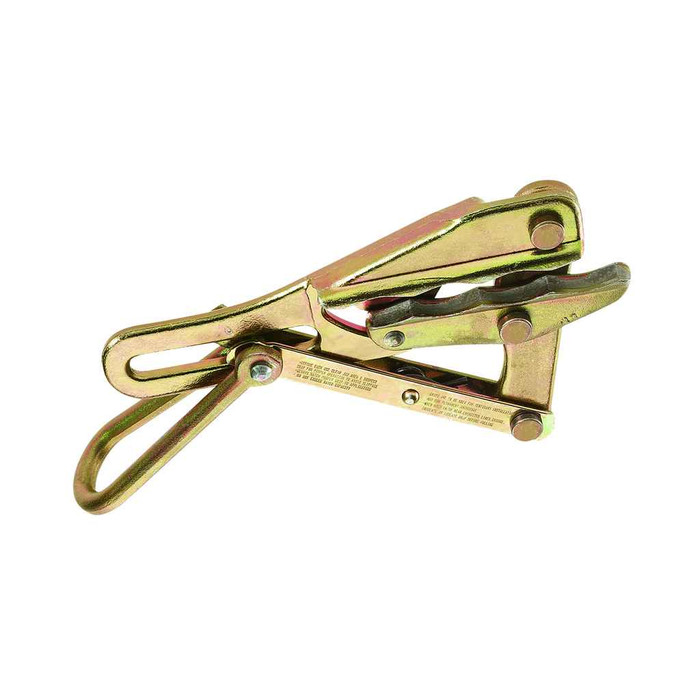

Chicago® Grip for PVC-Covered Conductors 0.42-Inch
1659-20 - spec sheet
Features
- Made in USA
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Eliminates necessity of stripping insulation from conductor
- Round inside-jaw contour
- (NOT HDPE)
- Serpentine jaws are specially machined to allow insertion of insulated conductor through the jaws, which reduces danger of slippage which might result in insulation damage
Warnings
- Do not exceed rated capacity.
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Grips are to be used for temporary installation, not for permanent anchorage.
- Always match proper size and type of grip to application.
1659-20 - spec sheet
Manufacturer Resources
Product Specs
- Cable Diameter:
- 0.2" to 0.42" (5.08 to 10.67 mm)
- Cable Type:
- PVC-Coated
- Depth:
- 7.2000 in
- Height:
- 1.5750 in
- Hot Latch:
- No
- Jaw Length:
- 4.188" (10.6 cm)
- Jaw Type:
- Round - Serpentine
- Locking Handle:
- Yes
- Maximum Safe Load:
- 4500 lb (2041 kg)
- Spring:
- Yes
- Swing Latch:
- No
- Type:
- Chicago Grip
- Weight:
- 2.6100 lbs
- Width:
- 3.6000 in
