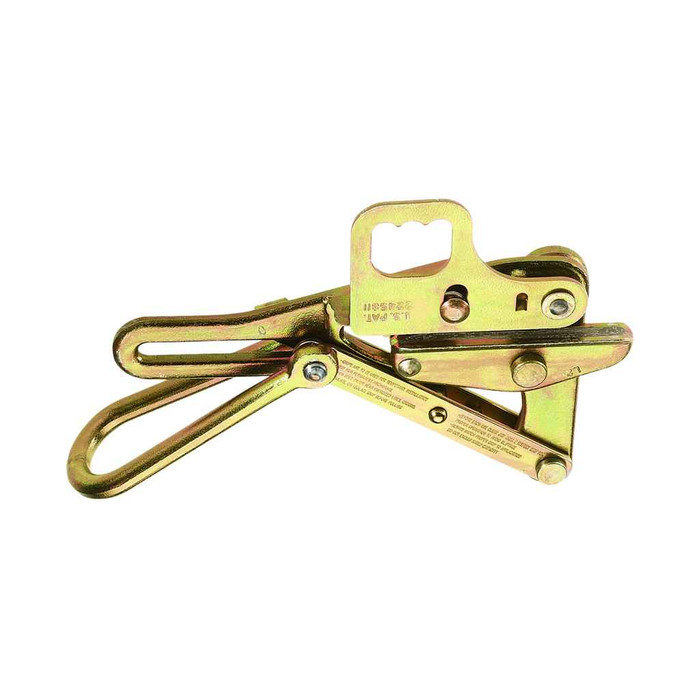

Chicago® Grip with Latch 0.37-Inch Cable
1613-40H - spec sheet
Features
- For larger conductors, see our grips with round inside-jaw contour
- Sawtooth profile provides extra gripping power
- Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Works with aircraft, EHS, messenger and guy strand cable
- Designed for cable sizes from 0.12 to 0.37-Inch (3.05 to 9.40 mm) with maximum safe load of 4500-Pound (2041 kg)
- Made in USA
Warnings
- Grips are to be used for temporary installation, not for permanent anchorage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Always match proper size and type of grip to application.
- Do not exceed rated capacity.
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
1613-40H - spec sheet
Manufacturer Resources
Product Specs
- Cable Diameter:
- 0.12" to 0.37" (3.05 to 9.4 mm)
- Cable Type:
- Aircraft, EHS, Messenger, Guy Strand
- Depth:
- 8.0000 in
- Height:
- 1.8000 in
- Hot Latch:
- Yes
- Jaw Length:
- 4.188" (10.6 cm)
- Jaw Type:
- Double V
- Locking Handle:
- Yes
- Maximum Safe Load:
- 4500 lb (2041 kg)
- Spring:
- No
- Swing Latch:
- No
- Type:
- Chicago Grip
- Weight:
- 0.1000 lbs
- Width:
- 5.0000 in
