Codelocks CL160 Mortise Latch,...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$156.54
Codelocks CL160 Mortise Latch, QuickCode Function

Codelocks CL160 Mortise Latch, QuickCode Function

(No reviews yet) Write a Review

Model: CL160 SG
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$156.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

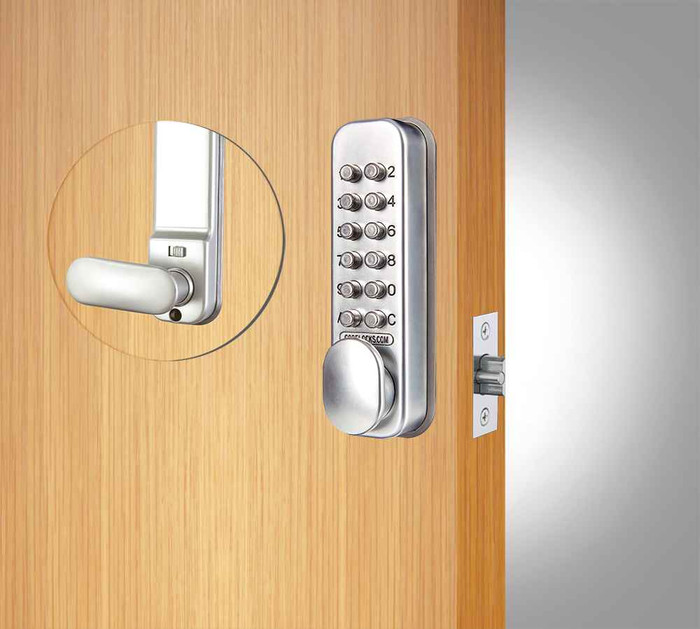

Codelock CL160 Mortise Latch

Light duty tubular mortise latch featuring QuickCode allowing on-the-door code changes.

The CL160 is a mechanical lock providing simple on-the-door code change, adding significant benefits to the management of the lock where regular code changes are required. The CL160 can also be retrofitted to existing lock prep, so simple upgrades are possible. Staying in control has never been easier. CL160 can be used to restrict access in residential properties and many commercial buildings.

Key Features

  • Simple convenient control
  • Easy to fit
  • Suitable for low traffic applications
  • Hold open function allowing Code Free access

Code Change Method
Locks come complete with a random code selected. The lock can be placed in EasyCode Function or QuickCode Function.

EasyCode
The EasyCode Function requires the lock to be removed from the door to change the code. This ensures a level of management control over who can change the code.

QuickCode
The QuickCode Function is an option that allows the code to be changed while the lock is fitted to the door. This is a convenient option in which code holders can quickly change codes.

Technical Specs

  • Brand - Codelocks
  • Buttons - 2 x 6
  • Code Change Method - QuickCode (On Door)
  • Codes - Single Code - 1,023 non sequential combinations available
  • Door Thickness - 1 3⁄8" - 2 3⁄8" (35mm - 60mm)
  • Finish - Silver Grey
  • Handed - Non handed - Locks will fit doors hung on the left or right
  • Keypad - Stainless steel buttons
  • Latch Type - 2 3⁄8" Mortise Latch, 2 3⁄4" Mortise Latch
  • Lock Material - Zinc Alloy
  • Orientation - Vertical
  • Spindle - Flat spring loaded spindle
  • Suitable For - Internal, External
  • User Types - Code

Documentation & Downloads

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
CL100 Series
Product Subgroup:
Mortise Locks and Trim
Product Type:
Deadbolts
Subcategory:
Mechanical Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Deadbolt
Orientation:
Vertical
Handed:
Non Handed
Duty Level:
Light Duty
Product Model:
CL160
Product Function:
Deadbolt
Product Finish:
Silver Grey
Product Category:
Mechanical Locks
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Codelocks CL160 SG – Frequently Asked Questions

1) Do I have to order the CL160 handed for a left or right hung door?
No handing to specify. The CL160 is non handed, so the same lock fits doors hung left or right. It mounts in the vertical orientation.
2) Can staff change the code on the CL160 without taking the lock off the door?
Yes, in QuickCode function. QuickCode lets the code be changed with the lock still fitted, which suits a rental turnover or a shared office door where the code holder changes it themselves. The alternative EasyCode function requires removing the lock to change the code, which keeps that control with management. Each lock ships with a random code set, and there are 1,023 non sequential combinations on a single code.
3) I need a coded lock for a high traffic commercial entrance - is the CL160 the right pick?
The CL160 is rated light duty and is described as suitable for low traffic applications, so a heavily used entrance is outside what it is built for. For a heavier opening, the Cal-Royal CRB800 is a heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch, and the Design Hardware D1 Series is an extra heavy duty Grade 1 double cylinder deadbolt for 1-3/4 inch doors. Those are keyed rather than coded, so the tradeoff is credential type against duty level.
4) What is a keyed alternative to the Codelocks CL160 if I want key control instead of a code?
The CL160 is a code-operated light duty mechanical lock with no key cylinder - access is by pushbutton code only. If the opening needs key control, the Hager 3115 is a cylinder x thumbturn deadbolt with a Schlage C keyway that fits doors 1-3/8 inch to 1-3/4 inch thick, and the Accentra D111 is a Grade 1 cylinder x thumbturn deadbolt in the D Series with a 2-3/8 inch backset. Those give you a keyway you can master-key into an existing system; the CL160 instead lets you change the code on the door without pulling the lock.
5) If I want keyless access but with electronic credentials instead of a mechanical code, what should I look at instead of the CL160?
The CL160 is a mechanical pushbutton lock - no batteries, no wiring, code changed on the door with the QuickCode function. If you want audit-capable or remote credentialing, the Dormakaba Saffire LX-D is an RFID electronic deadbolt with BLE and electronic lock override, the Dormakaba Nova-D is an RFID multihousing smart electronic deadbolt, and the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote. Those need power; the CL160 does not.
6) We key everything to an interchangeable core system - is there an alternative to the CL160 that takes an IC core?
The CL160 has no cylinder at all; it is operated by a single code with 1,023 non-sequential combinations available. For small format interchangeable core standardization, the Arrow E61 26D IC is a Grade 2 single cylinder deadlock with SFIC prep supplied less core for 1-3/8 inch to 1-3/4 inch doors, and the Deltana CL200LAIC is a Grade 2 single deadbolt with interchangeable core prep on a 2-3/4 inch backset, which matches one of the two backsets the CL160 is offered in.
7) Can I hold the CL160 open so people get in without punching the code?
Yes. The CL160 has a hold open function that gives code free access, useful during business hours or a move-in day, then you drop it back to code operation afterward.
8) Does the CL160 take a key as a backup?
No key. The CL160 is code only, a single user code on a 2 x 6 stainless steel button keypad. If you need a keyed override or a mechanical key on the same opening, use a keyed deadbolt such as the Arrow DBX61 Grade 2 single cylinder deadbolt, or an electronic deadbolt with override like the Dormakaba Saffire LX-D.
9) Will the CL160 work on an exterior door?
It is rated for internal and external use, so a gate-side or rear service door is in scope, as long as the traffic level stays low. Duty level is the limit, not the location.
10) How does the CL160 differ from a standard mortise deadbolt like the Dormakaba D900?
Both are mortise-case locks, but the CL160 is code operated with a spring loaded flat spindle and a keypad, no cylinder and no key. The Dormakaba D900 small case mortise deadbolt is a keyed cylinder by thumbturn lock on Schlage keyways, so it suites into an existing key system. Choose the CL160 when you want to stop issuing keys, and the D900 when the door has to stay on the building's master key.
11) What is the difference between the CL160 and a thumbturn-only deadlock like the Arrow E60?
The Arrow E60 is a Grade 2 non-keyed exit deadlock with a blank plate on one side and a thumbturn on the other, for doors 1-3/8 inch to 1-3/4 inch - it controls the door from the inside only, with no way to gain entry from the outside. The CL160 is entered from the outside with a pushbutton code, and includes a hold open function for code free access when you want the opening left unrestricted.
12) Is there a coded lock like the CL160 that also needs a key on the inside for a double cylinder application?
The CL160 is a code-entry mortise latch and is not offered as a double cylinder lock. If the opening requires a key on both faces - a common call on glass or sidelight-adjacent doors - the Hager 3214 is a Grade 2 double cylinder deadbolt with a Schlage C keyway for 1-3/8 inch to 1-3/4 inch doors, and the Dexter DB1000 double cylinder is Grade 1 for 1-3/8 inch to 1-7/8 inch doors. Note that double cylinder locks are restricted in some jurisdictions on required egress doors.
13) For an ADA-sensitive opening, is the CL160 the right choice or is there a better option?
The CL160 is operated by pressing stainless steel pushbuttons in a 2 x 6 vertical layout, which requires finger dexterity to enter a code. Where an easier-to-operate turn is wanted, the Cal-Royal LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn for doors 1-3/8 inch to 1-3/4 inch. Confirm the operable hardware requirements for your facility type before you commit either way.
14) What finish and material is the Codelocks CL160?
One finish only, Silver Grey, on a zinc alloy lock body with stainless steel keypad buttons. If you are standardizing on a matched brass or bronze look across an entry set, this will not blend in with it.
15) The CL160 is silver grey only - what if I need the deadbolt to match brass or bronze trim on the rest of the door?
The CL160 is finished in silver grey on a zinc alloy body, so it will not match a decorative brass or bronze suite. If appearance is driving the spec, the Emtek #11 Tuscany is a lost wax cast bronze deadbolt in cylinder x thumbturn, the Emtek 8323 Modern Disc is a double cylinder brass deadbolt, and the Baldwin Estates 8011 is a contemporary 1-5/8 inch double cylinder deadbolt. Those are keyed rather than code-operated.
16) Do I have to worry about handing when substituting the CL160 for another lock?
No - the CL160 is non handed and will fit doors hung left or right, so one part number covers both swings across a building. That is a practical advantage when standardizing a fleet of doors. If you move to a keyed deadbolt instead, deadbolts such as the Dexter DB2000 single cylinder and the Bravura 310B Elite are also cylinder x thumbturn functions where swing is not the deciding variable; what you confirm there is backset and door thickness instead.
