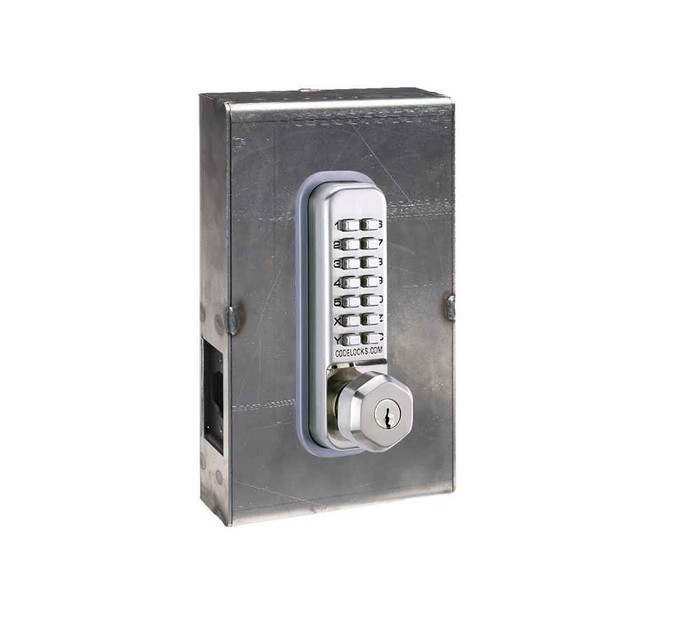

Codelocks CL210 with Key Override Gate Box Kit, Stainless Steel Finish

Codelocks CL210 with Key Override Gate Box Kit, Stainless Steel Finish

(No reviews yet) Write a Review

Model: 95339

In Stock (leaves warehouse same day if ordered before 3pm ET)

$459.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

CL210 with Key Override Gate Box Kit

Includes Codelock, weldable Gate Box and stop bracket.

Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.

Key Features

  • Easy, effective gate and fence installation
  • Complete kits with all required components
  • 14-gauge weldable steel boxes with pre-drilled fixing holes
  • Supplied as raw steel, ready to paint
  • Adjustable stop bracket
  • Stainless steel or marine grade finish
  • Gate Panic Hardware Kits available separately
  • Available with Clean by Codelocks

Technical Specs

  • Brand - Gate Solutions by Codelocks
  • Buttons - 2 x 7
  • Code Change Method - Tumblers (Off Door)
  • Codes - Single code storage - 8,191 non sequential combinations available
  • Finish - Stainless Steel
  • Gate Box Dimensions - 9.5” (H) x 5.5” (W) x 1.75” (D)
  • Gate Box Material - 14-gauge steel
  • Gate Kits By Codelocks - Gate Solutions by Codelocks
  • Handed - Non Handed - Locks will fit doors hung on the left or right
  • Keyed Alike - Available
  • Keypad - 14 stainless steel buttons
  • Latch Type - Mortise Latch
  • Lock Material - Zinc Alloy
  • Orientation - Vertical
  • Spindle - Flat spring loaded spindle
  • Suitable For - Internal, External
  • User Types - Code

Downloads and Documentations

Manufacturer Resources

Product Specs

Product Group:
Door Trim and Accessories
Series:
Gate Box Kits
Product Subgroup:
Gate Boxes
Product Type:
Gate Box Kits
Subcategory:
Mechanical Locks
Commercial/Residential:
Commercial
Handed:
Non Handed
Orientation:
Vertical
Duty Level:
Light Duty
Product Model:
CL-CL210
Product Finish:
Stainless Steel
Product Dimension:
9.5” (H) x 5.5” (W) x 1.75” (D)
Latch Type Specification:
Mortise Latch
Product Category:
Gate Hardware
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Codelocks 95339 – Frequently Asked Questions

1) What comes in the Codelocks CL210 gate box kit, and do I need anything else to install it on a chain link fence gate?
The CL210 gate box kit ships with the CL210 code lock, a weldable gate box, and an adjustable stop bracket. The box is 14-gauge steel with pre-drilled fixing holes, so it either welds to the gate frame or bolts through those holes. It arrives as raw steel ready to paint, so plan on primer and paint if you want it to match the fence. Gate panic hardware kits are sold separately if the opening needs egress hardware.
2) How much room do I need on the gate frame for the Codelocks gate box?
The box measures 9.5 inches (H) x 5.5 inches (W) x 1.75 inches (D) and mounts vertically, so you need a clear vertical run of at least 9.5 inches on the gate stile and 5.5 inches of width. Tube frames narrower than 5.5 inches will leave the box overhanging the frame edges, which is normal on chain link gates since the box welds across the frame rather than into it.
3) Does the CL210 gate lock have to be ordered left or right hand?
No handing to specify. The CL210 is non handed and works on gates hung to swing from the left or the right, so one part number covers both leaves of a double gate.
4) Can a code be overridden with a key if someone forgets the combination?
Yes, this version of the CL210 includes key override, so a keyed cylinder lets staff or maintenance get in without the code. Keyed alike is available if you want several gates on one key. Code entry is the only user credential type otherwise, there is no card or fob.
5) How do you change the combination on a Codelocks CL210, and how many codes does it hold?
Code changes are made by tumblers, off door, meaning the lock has to come off the gate box to reset the combination. It stores a single code at a time, drawn from 8,191 non sequential combinations. That makes it a good fit where one shared code serves everyone (pool gates, backyard access, school yards) and a poor fit where you need per-user codes or frequent turnover without pulling hardware.
6) Will a Codelocks gate box kit hold up outdoors on a pool gate?
It is rated for internal and external use, with a stainless steel finish on the lock and a 14-gauge steel box. Marine grade finish is the option to look at for coastal or heavy chlorine exposure. Note that the box itself ships as raw steel, so painting it is part of the install if you want corrosion protection on the enclosure.
7) Is the CL210 gate kit heavy enough for a busy commercial entrance?
It is classed as commercial but light duty. For a perimeter or amenity gate (pool, courtyard, service yard, playground) it suits the traffic. For a high cycle main entrance or a primary egress door, step up to a heavier duty commercial lockset instead, as the zinc alloy lock body and mortise latch here are sized for gate use.
8) What kind of latch does the Codelocks gate box kit use, and how does it stop the gate?
A mortise latch, housed inside the gate box, with a flat spring loaded spindle driving it. Because a fence gate has no frame to mortise a strike into, the kit supplies an adjustable stop bracket that mounts on the opposing post and takes the latch, and the adjustment lets you take up slack on a gate that has sagged or a post that is not perfectly plumb.
9) How many buttons does the CL210 keypad have and can it be wiped down?
The keypad is 14 stainless steel buttons in a 2 x 7 layout. It is a mechanical lock with no wiring or batteries, so there is nothing to power at a remote gate. Clean by Codelocks is offered as an option on these kits for facilities that want an antimicrobial surface on a shared touchpoint.
