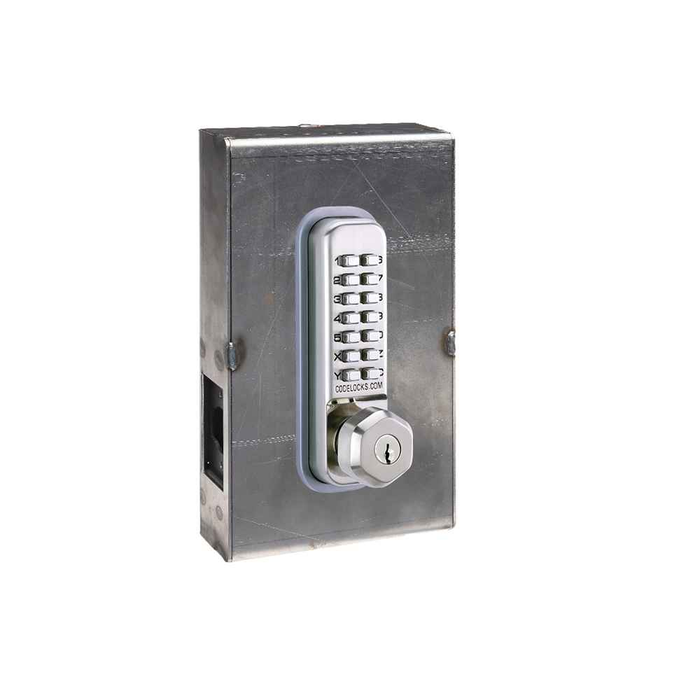

Codelocks CL250 with Key Override Gate Box Kit Stainless Steel Finish

Codelocks CL250 with Key Override Gate Box Kit Stainless Steel Finish

(No reviews yet) Write a Review

Model: 99949

In Stock (leaves warehouse same day if ordered before 3pm ET)

$542.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

CL250 with Key Override Gate Box Kit

Includes Codelock, weldable Gate Box and stop bracket.

Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.

Key Features

  • Easy, effective gate and fence installation
  • Complete kits with all required components
  • 14-gauge weldable steel boxes with pre-drilled fixing holes
  • Supplied as raw steel, ready to paint
  • Adjustable stop bracket
  • Available in stainless steel
  • Gate Panic Hardware Kits available separately
  • Available with Clean by Codelocks

Technical Specs

  • Brand - Gate Solutions by Codelocks
  • Buttons - 2 x 7
  • Code Change Method - Tumblers (Off Door)
  • Codes - Single code storage - 8,191 non sequential combinations available
  • Finish - Stainless Steel
  • Gate Box Dimensions - 9.5” (H) x 5.5” (W) x 1.75” (D)
  • Gate Box Material - 14-gauge steel
  • Gate Kits By Codelocks - Gate Solutions by Codelocks
  • Handed - Non Handed - Locks will fit doors hung on the left or right
  • Keyed Alike - Available
  • Keypad - 14 stainless steel buttons
  • Latch Type - Tubular Latch
  • Lock Material - Zinc Alloy
  • Orientation - Vertical
  • Spindle - Flat spring loaded spindle
  • Suitable For - Internal, External
  • User Types - Code

Downloads and Documentations

Manufacturer Resources

Product Specs

Product Group:
Door Trim and Accessories
Series:
Gate Box Kits
Product Subgroup:
Gate Boxes
Product Type:
Gate Box Kits
Subcategory:
Mechanical Locks
Commercial/Residential:
Commercial
Handed:
Non Handed
Orientation:
Vertical
Duty Level:
Light Duty
Product Model:
CL-CL250
Product Finish:
Stainless Steel
Product Dimension:
9.5” (H) x 5.5” (W) x 1.75” (D)
Latch Type Specification:
Tubular Latch
Product Category:
Gate Hardware
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Codelocks 99949 – Frequently Asked Questions

1) What comes in the Codelocks CL250 gate box kit?
The kit ships with three pieces: the CL250 mechanical pushbutton lock with key override, a weldable gate box, and an adjustable stop bracket. That is everything needed to mount a keypad lock on a gate frame that has no door prep, which is the usual problem with chain link, ornamental, and tube steel gates.
2) How big is the Codelocks weldable gate box, and what gauge steel is it?
The box measures 9.5 inches (H) x 5.5 inches (W) x 1.75 inches (D) and is formed from 14-gauge steel with pre-drilled fixing holes. The 1.75 inch depth is the number to check against your gate frame tube before you order, since the box has to sit against the stile without fouling the latch side. It is supplied as raw steel so you can paint it to match the fence.
3) Do I have to order a left hand or right hand version of the CL250 gate kit?
No handing to specify. The CL250 is non handed and fits gates hung on either the left or the right, so a property manager standardizing across several gates orders the same kit every time. The box mounts vertically.
4) Can a code be overridden with a key if someone forgets the combination?
Yes. The CL250 is the key override version, so an authorized holder can get through with a key when the code is forgotten or the gate needs opening in a hurry. Day to day access is still by code only, single code storage with 8,191 non sequential combinations to choose from.
5) Is the CL250 gate kit strong enough for a high traffic commercial gate?
It is classed as light duty commercial. That suits pool enclosures, backyard and courtyard gates, hotel and school service gates, and similar restricted areas with moderate use. For a gate cycling constantly all day, or one that needs free egress panic hardware, look at a heavier device instead; Codelocks offers Gate Panic Hardware Kits separately.
6) How do you change the code on a Codelocks CL250?
Code changes are made by tumblers, off door. The lock has to come off the gate to reset the combination, which is worth knowing if you rotate codes often at a pool or a school gate. The keypad has 14 stainless steel buttons in a 2 x 7 layout.
7) Will a Codelocks gate box kit hold up outdoors year round?
It is rated for internal and external use. The lock body is zinc alloy in a stainless steel finish and the keypad buttons are stainless. The steel box itself arrives raw, so paint or coat it before or right after welding if it is going on a coastal or wet site.
8) What kind of latch does the Codelocks gate box kit use, and what is the stop bracket for?
It uses a tubular latch driven by a flat spring loaded spindle. Because a gate frame has no jamb to strike into, the kit includes an adjustable stop bracket that mounts on the receiving post and gives the latch something to catch. The adjustment lets you take up sag or alignment drift after the gate has settled.
9) Can I get several Codelocks gate kits keyed alike across a property?
Keyed alike is available, so the override keys on multiple CL250 kits can be set to one key for maintenance staff. Note the code side is separate from that: each lock stores a single code, set individually.
