Codelocks CL255 with Key Override Gate Box Kit

Codelocks CL255 with Key Override Gate Box Kit

(No reviews yet) Write a Review

Model: 93901
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$587.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

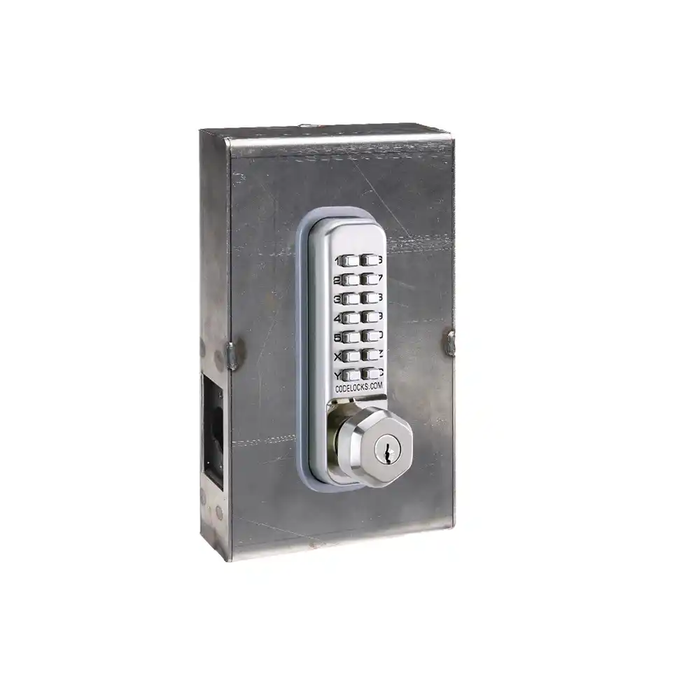

CL255 with Key Override Gate Box Kit

Includes Codelock, weldable Gate Box and stop bracket.

Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.

Key Features

  • Easy, effective gate and fence installation
  • Complete kits with all required components
  • 14-gauge weldable steel boxes with pre-drilled fixing holes
  • Supplied as raw steel, ready to paint
  • Adjustable stop bracket
  • Stainless steel or marine grade finish
  • Gate Panic Hardware Kits available separately
  • Available with Clean by Codelocks

Technical Specs

  • Brand - Gate Solutions by Codelocks
  • Buttons - 2 x 7
  • Code Change Method - Tumblers (Off Door)
  • Codes - Single code storage - 8,191 non sequential combinations available
  • Finish - Stainless Steel
  • Gate Box Dimension - 9.5” (H) x 5.5” (W) x 1.75” (D)
  • Gate Box Material - 14-gauge steel
  • Gate Kits By Codelocks - Gate Solutions by Codelocks
  • Handed - Non Handed - 8,191 non sequential code combinations available
  • Keyed Alike - Available
  • Keypad - 14 stainless steel buttons
  • Lock Material - Zinc Alloy
  • Orientation - Vertical
  • Spindle - Flat spring loaded spindle
  • Suitable For - Internal, External
  • User Types - Code

Downloads and Documentations

Manufacturer Resources

Product Specs

Product Group:
Door Trim and Accessories
Series:
Gate Box Kits
Product Subgroup:
Gate Boxes
Product Type:
Gate Box Kits
Subcategory:
Mechanical Locks
Commercial/Residential:
Commercial
Orientation:
Vertical
Handed:
Non Handed
Duty Level:
Light Duty
Product Model:
CL-CL255
Product Dimension:
9.5” (H) x 5.5” (W) x 1.75” (D)
Product Category:
Gate Hardware
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Codelocks 93901 – Frequently Asked Questions

1) Is the Codelocks CL255 gate box kit OK outdoors in weather, and which finish should I pick for a coastal site?
Both indoor and outdoor use are covered. Two finishes are offered: stainless steel and a black marine grade. Marine grade is the one to specify near salt air or a chlorinated pool deck. One thing to plan for on either version: the steel box is supplied as raw steel, so it needs painting after it is welded up. The lock body itself is zinc alloy with a 14-button stainless keypad.
2) Does the CL255 need power or batteries, and what happens when nobody can remember the code?
No power and no batteries. The CL255 is a fully mechanical pushbutton lock, so there is nothing to wire and no dead battery to strand you at the gate. This version also carries a key override, which is the answer to a forgotten code or a lockout: a key opens it without touching the combination. Codes are changed with tumblers off the door rather than at the keypad.
3) Can I set the same key and the same code across several gates in one property?
Keyed alike is available on the CL255 key override, so a maintenance crew can carry one override key for every gate in a complex. On the code side, the lock stores a single code drawn from 8,191 non-sequential combinations, so you set the same code on each gate if you want one number for the whole site, or a different one per area. Single code storage means there is no separate user or master code to manage, which is why this suits pool gates and yard access rather than anything needing per-person audit.
4) Does the Codelocks CL255 gate box kit have to be ordered left hand or right hand?
Handing is not a factor. The CL255 is non handed, so one part number covers a gate swinging either way and you do not need to know the swing before you order. The keypad mounts vertically.
5) Is a Codelocks gate box kit heavy duty enough for a busy commercial gate?
It is rated light duty, and it is a commercial-grade product rather than a residential one. Read that as pedestrian access control: pool gates, school and college yards, hospital and hotel grounds, backyards, fenced storage. It is not the choice for a high-traffic main entrance cycled hundreds of times a day. The box itself is 14-gauge steel, so the mounting is not the weak point.
6) What tools and trades do I need to install a Codelocks weldable gate box, and does it come with the lock?
Plan on a welder. The box is weldable steel and is fixed to the gate frame by welding, then painted, so this is not a drill-and-bolt job for a handyman with a cordless drill. What you do not need to buy separately is the lock: the kit includes the CL255 codelock, the gate box and the stop bracket together. The box has pre-drilled fixing holes for mounting the lock, and the lock uses a flat spring loaded spindle.
7) I need panic exit hardware on a gate as well as the code lock. Is that part of the CL255 gate box kit?
No. The CL255 kit gives you coded access with a key override, plus the weldable box and stop bracket. Gate panic hardware is a separate Codelocks kit and has to be ordered on its own. If the gate is an egress path from a pool enclosure or a school yard where an exit device is required, order the panic kit alongside this one rather than expecting it in the box.
8) How many buttons does the Codelocks CL255 keypad have, and can gloved hands work it?
Fourteen stainless steel buttons, laid out 2 by 7 on a vertical keypad. They are full-size mechanical pushbuttons rather than a flat touch pad, so they operate with work gloves on and in cold weather. Being mechanical, there is no display or backlight to fail outdoors.
