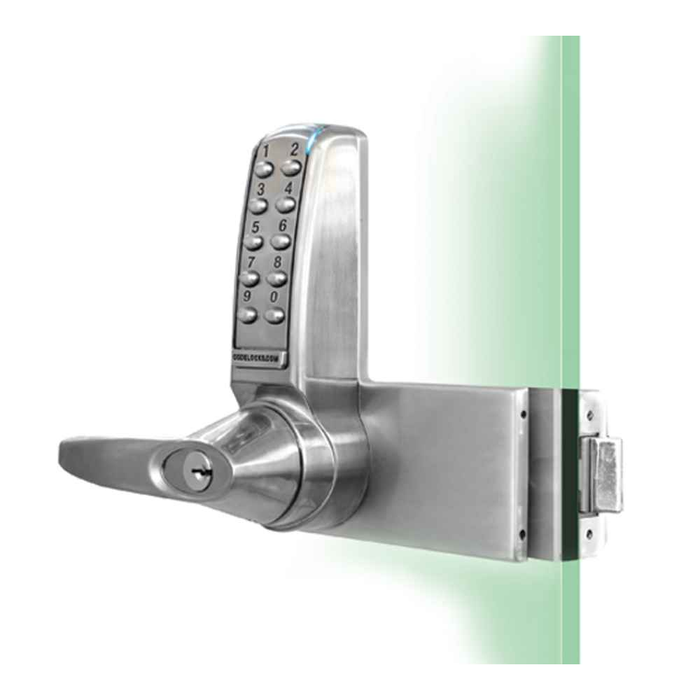

CL4000 Electronic Glass Door Lock
Medium duty electronic patch door lock offering all the functions of the CL4000.
The CL4000GD is a medium duty electronic patch door lock. The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free mode can also be programmed at the keypad using the Master Code.
Key Features
- Glass Doors
- Mortise Latch
- Fits existing 'Rondo' type glass door prep
- Over 140,000 operations from 4 x 'N' cells (supplied)
- Tamper time out and low battery warning
- Lever handle supplied as either right (RH) or left hand (LH)
- Suitable for in-swinging doors only
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Technical Specs
- Brand - Codelocks
- Buttons - 2 x 5 + Programming
- Code Change Method - Keypad (On Door)
- Codes - User Codes 4, 5 or 6 digits long
- Door Thickness - 5⁄16" - 10⁄16" (8mm - 15mm)
- Finish - Brushed Steel
- Handed - Non Handed - Locks will fit doors hung on the left or right
- Keyed Alike - Available
- Keypad - Individual stainless steel buttons
- Lock Material - Zinc Alloy
- Low Battery Warning - Red LED will flash on opening to indicate low battery
- Memory - Stores up to 80 User Codes
- Operations - Up to 140,000 per set of 4 x ‘N’ cells
- Orientation - Vertical
- Power - 4x N
- Spindle - 5⁄16" (8mm) square spindle
- Suitable For - Internal
- User Types - Code
Documentation & Downloads
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Series:
- CL4000
- Model:
- CL4000GD
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Electronic Glass Door Locks
- Subcategory:
- Electronic Locks
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Duty Level:
- Medium Duty
- Finish:
- Brushed Steel
- Handed:
- Non Handed
- Substrate:
- Zinc Alloy
- Orientation:
- Vertical
