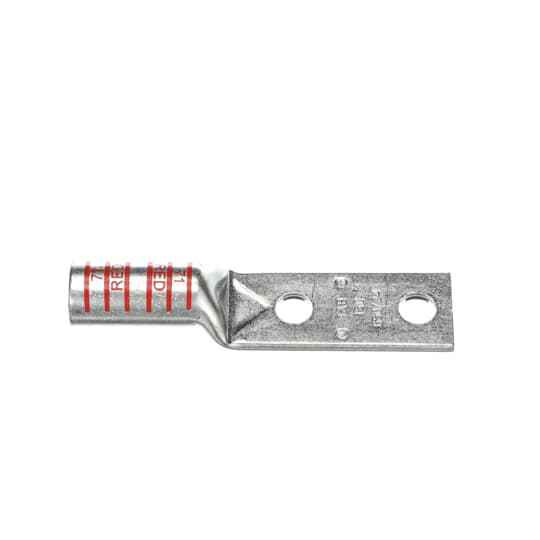

Color Keyed Copper Compression Lugs 350 kcmil Two-Hole Long-Barrel - Red

Color Keyed Copper Compression Lugs 350 kcmil Two-Hole Long-Barrel - Red

Professional copper compression lugs for reliable electrical connections

Color Keyed copper compression lugs deliver dependable electrical connections for 350 kcmil cable applications. These two-hole, long-barrel lugs feature red color coding for easy identification and are constructed from high-quality copper material. With 35 kV voltage rating and 1/2 inch stud size, these compression lugs provide professional-grade performance for demanding electrical installations.

Professional Features & Benefits

• 350 kcmil Cable Capacity: Accommodates large conductor sizes for high-current applications and power distribution systems.
• 35 kV Voltage Rating: Supports high-voltage applications with reliable insulation performance and electrical safety.
• Copper Construction: Provides excellent conductivity and corrosion resistance for long-term reliability.
• Two-Hole Design: Offers secure mechanical connection with dual mounting points for enhanced stability.
• Long-Barrel Configuration: Ensures optimal cable grip and compression contact area for reliable connections.
• Red Color Coding: Enables quick visual identification and phase organization in electrical installations.
• UL Listed: Meets UL E9809 standards for safety and performance in electrical applications.

Technical Specifications

• Brand Label: Color Keyed / Blackburn
• Cable Size: 350 kcmil
• Country Of Origin: Mexico (MX)
• Department: Electrical
• Effective Date: 19780502
• Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
• Insulation Material: None
• Product Color: Red
• Product Material: Copper
• Product Type: Long Barrel
• Standards: UL E9809
• Stud Size: 1/2 in
• Sub Brand Label: Color Keyed
• Voltage Rating: 35 kV

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• High-voltage electrical distribution systems
• Industrial power transmission installations
• Commercial electrical panel connections
• Utility substation applications
• Heavy-duty electrical equipment terminations
• Power generation facility connections

Why Choose Color Keyed Quality?

Color Keyed compression lugs meet UL E9809 standards for reliable performance in demanding electrical applications. The copper construction and long-barrel design ensure dependable connections, while the color-coded system supports organized installations and maintenance practices.
