Color Keyed Copper Compression Lugs - 600 kcmil Two-Hole Long-Barrel Design with 35 kV Rating

Color Keyed Copper Compression Lugs - 600 kcmil Two-Hole Long-Barrel Design

Professional copper compression lugs with color-coded identification for reliable electrical connections

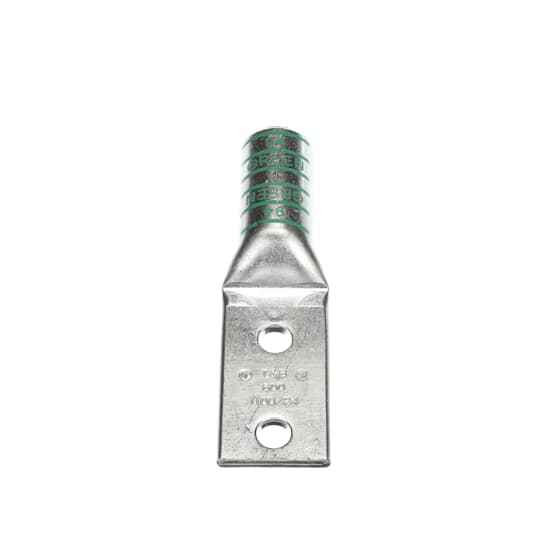

These Color Keyed copper compression lugs feature a two-hole, long-barrel design engineered for 600 kcmil cable applications with 35 kV voltage rating. The green color-coding provides instant visual identification while the copper construction ensures optimal conductivity and corrosion resistance. The 1/2 inch stud size and long-barrel configuration deliver secure, professional-grade connections for demanding electrical installations.

Professional Features & Benefits

• 600 kcmil Cable Capacity: Accommodates large conductor sizes for high-current applications and power distribution systems
• 35 kV Voltage Rating: Suitable for medium voltage applications with reliable insulation performance and safety margins
• Copper Construction: Provides excellent electrical conductivity and natural corrosion resistance for long-term reliability
• Color-Coded Green Identification: Enables quick visual identification and phase coding for organized installations and maintenance
• Two-Hole Long-Barrel Design: Ensures secure mechanical connection with enhanced contact area for optimal current carrying capacity
• UL Listed (E9809): Meets rigorous safety and performance standards for professional electrical installations
• 1/2 Inch Stud Size: Compatible with standard hardware and connection points for versatile installation options

Technical Specifications

• Brand Label: Color Keyed / Blackburn
• Cable Size: 600 kcmil
• Country Of Origin: Mexico (MX)
• Department: Electrical
• Effective Date: 19780502
• Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
• Insulation Material: None
• Product Color: Green
• Product Material: Copper
• Product Type: Long Barrel
• Standards: UL E9809
• Stud Size: 1/2 in
• Sub Brand Label: Color Keyed
• Voltage Rating: 35 kV

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Medium voltage power distribution systems
• Industrial electrical installations
• Commercial power infrastructure
• Utility substation connections
• High-current feeder circuits
• Phase identification systems
• Electrical panel and switchgear connections

Why Choose Color Keyed Quality?

Color Keyed compression lugs deliver proven reliability with UL listing and copper construction that ensures long-term performance in demanding electrical environments. The color-coded identification system enhances safety and organization while the long-barrel design provides superior mechanical and electrical connection integrity for professional installations.
