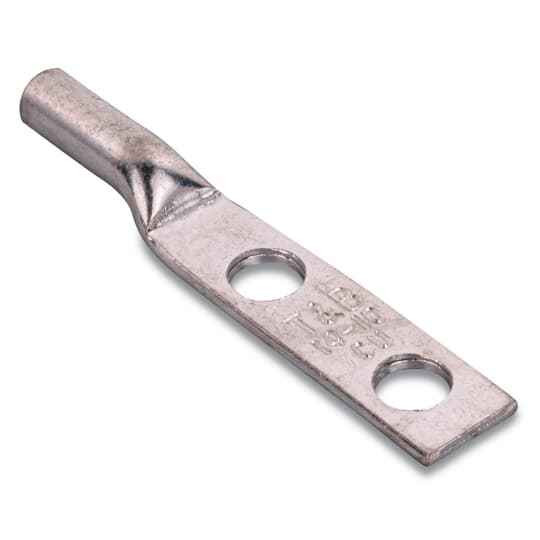

Color Keyed Copper Compression Lugs - Two-Hole Long-Barrel 14-10 AWG 1/4" Stud 35kV

Color Keyed Copper Compression Lugs - Two-Hole Long-Barrel Design

Professional electrical connections with color-coded identification

Color Keyed copper compression lugs deliver reliable electrical connections with visual identification advantages for professional installations. These two-hole long-barrel lugs accommodate 14-10 AWG cable sizes with 1/4 inch stud compatibility and 35kV voltage rating for demanding electrical applications.

Professional Features & Benefits

• 14-10 AWG Cable Compatibility: Accommodates standard wire gauges for versatile installation applications across residential and commercial projects.
• 35kV Voltage Rating: High voltage capacity ensures reliable performance in demanding electrical systems and power distribution applications.
• Copper Construction: Superior conductivity and corrosion resistance provide long-lasting electrical connections with minimal voltage drop.
• Two-Hole Long-Barrel Design: Enhanced mechanical strength and contact area for secure connections in high-stress applications.
• Color-Coded Identification: Visual wire size identification reduces installation errors and simplifies maintenance procedures.
• 1/4 Inch Stud Size: Standard stud compatibility ensures proper fit with common electrical hardware and connection points.

Technical Specifications

• Brand Label: Color Keyed / Blackburn
• Cable Size: 14-10 AWG
• Country Of Origin: Mexico (MX)
• Department: Electrical
• Effective Date: 20050412
• Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
• Insulation Material: None
• Product Color: Yellow
• Product Material: Copper
• Product Type: Long Barrel
• Stud Size: 1/4 in
• Sub Brand Label: Color Keyed
• Voltage Rating: 35 kV

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical panel connections and distribution systems
• Commercial building electrical installations
• Industrial equipment grounding and bonding
• Power distribution and control panels
• Electrical service entrance connections
• Motor control center applications

Why Choose Color Keyed Quality?

Color Keyed compression lugs provide professional-grade electrical connections with the reliability of copper construction and the convenience of color-coded identification. The long-barrel design and high voltage rating ensure dependable performance in demanding electrical applications.
