Color Keyed Two Hole Copper Ca...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$12.74
Color-Keyed Two Hole Lugs #1AWG - Long Barrel (600V to 35KV) - Green

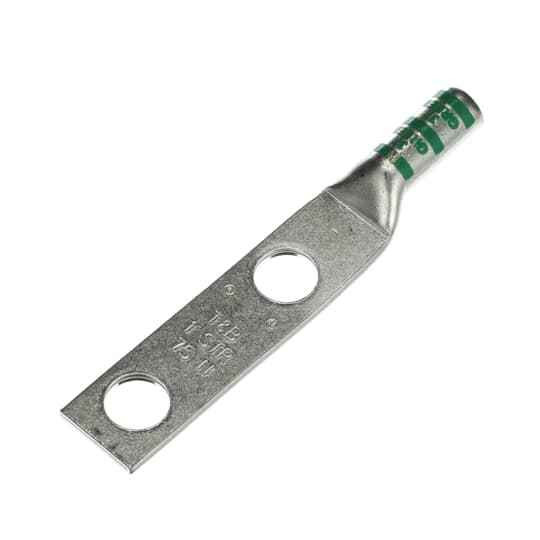

Color Keyed Two Hole Copper Cable Lug 1 AWG Long Barrel 35kV Green

(No reviews yet) Write a Review

Model: 54857BE

In Stock (leaves warehouse same day if ordered before 3pm ET)

$12.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Color Keyed Two Hole Copper Cable Lug 1 AWG Long Barrel 35kV Green

Professional High-Voltage Cable Termination Solution

The Color Keyed Two Hole Copper Cable Lug delivers reliable electrical connections for 1 AWG conductors in high-voltage applications up to 35kV. This long barrel design provides enhanced conductor contact area and secure termination for professional electrical installations requiring dependable performance and easy identification through color-coded construction.

Professional Features & Benefits

  • 1 AWG Cable Capacity: Accommodates standard 1 AWG conductors for versatile wiring applications and reliable electrical connections.
  • 35kV Voltage Rating: Engineered for high-voltage applications providing safe operation in demanding electrical environments.
  • Copper Construction: Delivers excellent conductivity and corrosion resistance for long-term electrical performance and reliability.
  • Long Barrel Design: Provides extended conductor contact area ensuring secure mechanical and electrical connections.
  • Green Color Coding: Enables quick visual identification and phase organization in complex electrical installations.
  • Two Hole Configuration: Offers dual mounting points for secure mechanical attachment and enhanced connection stability.
  • UL Listed: Meets UL E9809 standards ensuring compliance with electrical safety requirements and professional installation codes.

Technical Specifications

  • Brand Label: Color Keyed / Blackburn
  • Cable Size: 1 AWG
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Effective Date: 19941109
  • Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
  • Insulation Material: None
  • Product Color: Green
  • Product Material: Copper
  • Product Type: Long Barrel
  • Standards: UL E9809
  • Stud Size: 1/2 in
  • Sub Brand Label: Color Keyed
  • Voltage Rating: 35 kV

Professional Applications

  • High-Voltage Distribution Systems
  • Industrial Power Distribution
  • Utility Substation Connections
  • Commercial Electrical Panels
  • Generator Connection Points
  • Transformer Terminations
  • Switchgear Applications

Why Choose Color Keyed Quality?

Color Keyed cable lugs provide professional-grade reliability with UL E9809 listing ensuring compliance with electrical safety standards. The copper construction and long barrel design deliver dependable performance in demanding high-voltage applications while the color-coded identification system enhances installation efficiency and ongoing maintenance.

Manufacturer Resources

Product Specs

Brand Label:
Color Keyed / Blackburn
Cable Size:
1 AWG
Country Of Origin:
Mexico (MX)
Department:
Electrical
Effective Date:
19941109
Idea Granular Category Code Igcc:
4532 >> Cable or wire lug
Product Color:
Green
Product Material:
Copper
Product Type:
Long Barrel
Standards:
UL E9809
Stud Size:
1/2 in
Sub Brand Label:
Color Keyed
Voltage Rating:
35 kV

Color-Keyed 54857BE – Frequently Asked Questions

1) Will the Color Keyed 54857BE lug take 1 AWG cable, and is it copper or aluminum?
It's a copper compression lug sized for 1 AWG conductors. Copper barrel, so it's for copper cable terminations, not aluminum. Catalog number 54857BE under the Color Keyed / Blackburn label.
2) Is this cable lug UL listed for inspected commercial work?
It is UL listed under file E9809, which is what an AHJ or facilities inspector will want to see on a terminated conductor in a commercial panel or substation.
3) What does the green color on a Color Keyed lug mean?
Green is the Color Keyed die/conductor-size index, not a phase color by itself. Each cable size has its own color so an inspector or the next electrician can see at a glance that the right size lug and the matching color die were used. On this part green corresponds to the 1 AWG barrel.
4) Is this lug insulated, or do I have to tape or boot the barrel myself?
Bare copper, no insulation on the barrel. On a medium-voltage termination you'll be covering the barrel and pad yourself with tape, a heat shrink boot or a cover as the installation requires.
5) Why pick a long barrel lug over a standard barrel one?
The long barrel gives you more contact length on the conductor and room for two crimps instead of one, which is what you want on high-current or vibration-prone connections like generator leads and switchgear. A standard barrel is fine for general 600V panel work; this one is the heavier-duty termination.
6) Does this lug come with the mounting bolts and washers?
The lug itself is the item. Bolts, flat and Belleville washers and nuts for the 1/2 inch holes are ordered separately, along with the correct color-coded compression die for the crimp.
7) Where is the Color Keyed 54857BE lug made?
Manufactured in Mexico under the Blackburn Color Keyed line. Useful if your project carries country-of-origin reporting on submittals.
