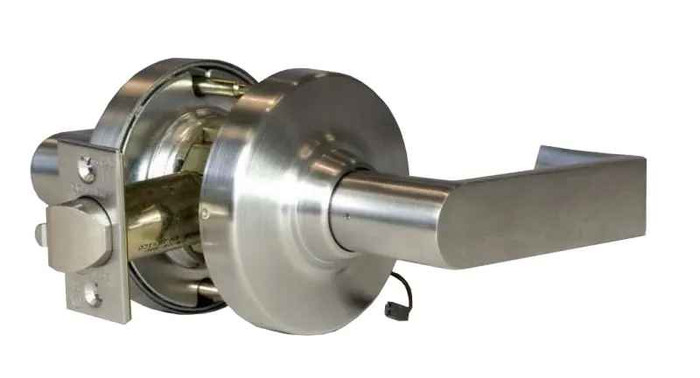

Command Access CLN12 Exit Storeroom Function, Grade 1 Electric Cylindrical Complete Lock Schlage

CLN Series

Electrified Schlage ND Cylindrical Lock

- The Command Access electrified version of the Schlage ND80 series cylindrical lock line allows for remote keyless access and egress control for heavy use applications where security and safety is critical

CLN12EL/EU - storeroom (fail safe/fail secure) : Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress

Features:

• Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source
• Available with Schlage C type keyway standard (please inquire for all Schlage original keyways)

• No hassle 3-Year warranty

Options

• Available Fail Safe (Electrically locked) or Fail Secure (Electrically Unlocked)
• Voltage option - 12V or 24V (AC/DC)
• REX - Request to Exit or AE switch available (on all functions)

Specifications:

• Operating voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage - 12V = 250 mA / 24V = 150 mA
• Solenoid coil resistance - 12V = 49 Ω / 24V = 159 Ω
• Power consumption - 3 watts
